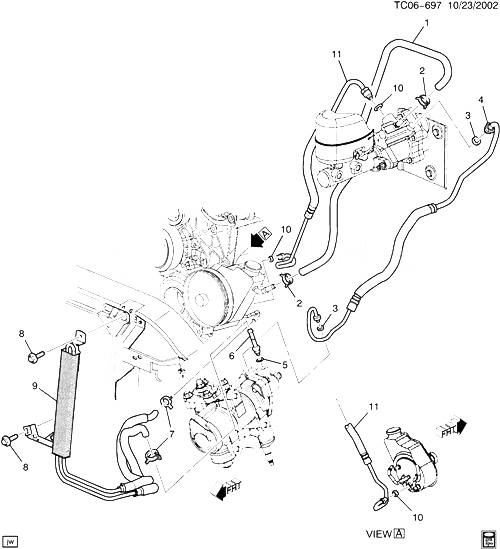

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15804953 |
HOSE, P/B BOOS OTLT (INCLS 2) (ACDelco #176-1489) |
CK1 (06-36) |
2005-2006 |
01 |
| 002 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 1)
|
2003-2006 |
02 |
|
| 003 |
26001594 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 4) (7.65MM IDX1.63MM THK)
| C1, 2, 3 |
2003-2006 |
AR |
|
| 004 |
15295842 |
HOSE, P/S GR INL (INCLS 3) |
CK1 (06-36) |
2004-2006 |
01 |
| 005 |
26001594 |
SEAL, P/S GR OTLT HOSE (PART OF 6) (7.65MM IDX1.63MM THK)
| C1, 2, 3 |
2003-2006 |
01 |
|
| 006 |
15295836 |
PIPE, P/S GR OTLT (INCLS 5) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) |
2005-2006 |
01 |
| 007 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 9)
|
2003-2006 |
02 |
|
| 008 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (P/S FLUID CLR)
|
2003-2006 |
02 |
|
| 009 |
15295844 |
COOLER, P/S FLUID (INCLS 7) |
C1 (LU3) |
2004-2006 |
01 |
| 009 |
15295846 |
COOLER, P/S FLUID (INCLS 7) (FINNED COOLER) |
CK1, 2, 3 (LQ4, L31) |
2005-2005 |
01 |
| 009 |
15829086 |
COOLER, P/S FLUID (INCLS 7) (589MM RETURN LINE) (FINNED COOLER) |
C1 (06-36) (LM7, LQ4, LR4, L59) |
2005-2006 |
01 |
| 010 |
26001594 |
SEAL, P/S FLUID CLG PIPE (O RING) (PART OF 11) (7.65MM IDX1.63MM THK) (6.674)
| CK1 |
2004-2005 |
01 |
|
| 011 |
15295855 |
HOSE, P/B BOOS INL (INCLS 10) (ACDelco #176-1494)
| CK1 (06-36) (EXC JE1) |
2005-2006 |
01 |
|
