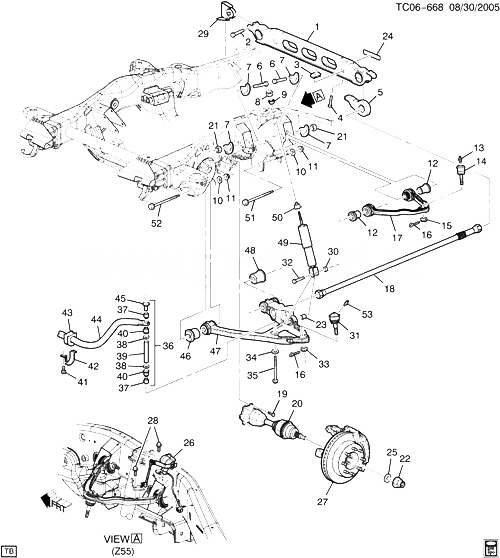

(TC06-668) - 2003-2006 CK1(06-36) ПЕРЕДНЯЯ ПОДВЕСКА CHEVROLET TAHOE LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15063980 SUPPORT, TORS BAR (INCLS 24) (CROSSMEMBER) C1 (06-36) 2003-2006 01
002 11516871 BOLT/SCREW - FRT S/ABS, M14X2X66 (TORS BAR SUPT) 2003-2006 02
003 11561233 ГАЙКА, TORS BAR ADJ CK1, 2, 3 2003-2006 02
004 15530026 БОЛТ, TORS BAR ADJ (M12X1.75X56, 47.8 GRIP, FULL THD) C1 (06-36) 2004-2005 02
005 15045171 ARM, TORS BAR ADJ (COLOR CODE PURPLE) CK1, 2, 3 (FT2, FT3) 2003-2006 02
005 15243119 ARM, TORS BAR ADJ (COLOR CODE TAN) CK1, 2, 3 (FT4, FT5) 2005-2006 02
005 15269561 ARM, TORS BAR ADJ CK1, 2, 3 (FT6, FT7) 2005-2006 02
005 15592573 ARM, TORS BAR ADJ (COLOR CODE GREEN) CK1, 2, 3 (FK2, FK3) 2003-2006 02
005 15592574 ARM, TORS BAR ADJ (COLOR CODE WHITE) CK1, 2, 3 (FF4, FF5) 2003-2006 02
005 15603963 ARM, TORS BAR ADJ (COLOR CODE ORANGE) CK1, 2, 3 (FF6, FF7) 2003-2006 02
005 15657374 ARM, TORS BAR ADJ (COLOR CODE BLUE) CK1, 2, 3 (FF8, FF9) 2003-2006 02
006 БОЛТ, FRT UPR CONT ARM (PART OF 7) 2003-2006
007 12472859 CAM KIT, FRT UPR CONT ARM ADJ (INCLS 6, 21) (INCLS 8-CAMS, 4-BOLTS 4-NUTS) (LOCATING PIN PART OF РАМА) CK1, 2, 3 2003-2006 01
008 11517996 ГАЙКА, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (FRT S/ABS) 2003-2006 02
009 15042048 INSULATOR, FRT S/ABS (58.0MM DIA X 30.0MM) (SHOCK MOUNT) CK1, 2, 3 2003-2006 02
010 15567836 WASHER, FRT LWR CONT ARM (16.38IDX23.87ODX3.27) (6.168) CK1, 2, 3 2003-2006 04
011 11516133 ГАЙКА, FRT LWR CONT ARM (M16X2X15) (8.917) CK1, 2, 3 2003-2006 04
012 15727765 BUSHING, FRT UPR CONT ARM (PART OF 17) (ACDelco #15727765) CK1 (03-06-36-53) 2003-2006 02
013 FITTING, FRT SUSP LUB (PART OF 17) 2003-2006
014 STUD, FRT UPR CONT ARM BALL (PART OF 17) 2003-2006
015 03537772 ГАЙКА, S/KNU (PART OF 17) (M12X1.75) (8.917) CK1, 2, 3 2003-2006 02
016 11514337 PIN, COTTER, 3.0X30MM 2003-2006 04
017 15864153 ARM, FRT UPR CONT (INCLS 12-15) (STUD IS NOT AVAILABLE SEPERATE) CK1 (03-06-36-53) 2003-2006 02
018 15048307 BAR, FRT TORS (CODE XK) (MAX TORQUE 4553) CK1, 2, 3 (6XK) 2003-2006 01
018 15048308 BAR, FRT TORS (CODE XK) (MAX TORQUE 4553) CK1, 2, 3 (7XK) 2003-2006 01
018 15048309 BAR, FRT TORS (CODE XL) (MAX TORQUE 4626) CK1, 2, 3 (6XL) 2003-2006 01
018 15048310 BAR, FRT TORS (CODE XL) (MAX TORQUE 4626) CK1, 2, 3 (7XL) 2003-2006 01
018 15048311 BAR, FRT TORS (CODE XM) (MAX TORQUE 5638) CK1, 2, 3 (6XM) 2003-2006 01
018 15048312 BAR, FRT TORS (CODE XM) (MAX TORQUE 5638) CK1, 2, 3 (7XM) 2003-2006 01
018 15051907 BAR, FRT TORS (CODE XN) (MAX TORQUE 4553) C1 (06-36) (6XN) 2003-2006 01
018 15051908 BAR, FRT TORS (CODE XN) (MAX TORQUE 4553) C1 (06-36) (7XN) 2003-2006 01
018 15058265 BAR, FRT TORS (CODE YF) (MAX TORQUE 4863) CK1, 2, 3 (6YF) 2003-2006 01
018 15058266 BAR, FRT TORS (CODE YF) (MAX TORQUE 4863) CK1, 2, 3 (7YF) 2003-2006 01
018 15058267 BAR, FRT TORS (CODE YH) (MAX TORQUE 5913) CK1, 2, 3 (6YH) 2005-2006 01
018 15058268 BAR, FRT TORS (CODE YH) (MAX TORQUE 5913) CK1, 2, 3 (7YH) 2005-2006 01
018 15072933 BAR, FRT TORS (CODE YT) (MAX TORQUE 7267) CK1, 2, 3 (6YT) 2003-2006 01
018 15072934 BAR, FRT TORS (CODE YT) (MAX TORQUE 7267) CK1, 2, 3 (7YT) 2003-2006 01
018 15528957 BAR, FRT TORS (CODE GG) (MAX TORQUE 6790) CK1, 2, 3 (6GG) 2003-2006 01
018 15528958 BAR, FRT TORS (CODE GG) (MAX TORQUE 6790) CK1, 2, 3 (7GG) 2003-2006 01
018 15528963 BAR, FRT TORS (CODE GK) (MAX TORQUE 8615) CK1, 2, 3 (6GK) 2003-2006 01
018 15528964 BAR, FRT TORS (CODE GK) (MAX TORQUE 8615) CK1, 2, 3 (7GK) 2003-2006 01
018 15528965 BAR, FRT TORS (CODE GL) (MAX TORQUE 8782) CK1, 2, 3 (6GL) 2003-2006 01
018 15528966 BAR, FRT TORS (CODE GL) (MAX TORQUE 8782) CK1, 2, 3 (7GL) 2003-2006 01
018 15732338 BAR, FRT TORS (CODE XG) (MAX TORQUE 9054) CK1, 2, 3 (6XG) 2003-2006 01
018 15732339 BAR, FRT TORS (CODE XG) (MAX TORQUE 9054) CK1, 2, 3 (7XG) 2003-2006 01
021 ГАЙКА, FRT UPR CONT ARM (PART OF 7) 2003-2006
023 15735029 INSULATOR, FRT S/ABS LWR (PART OF 47) C1 (06-36) 2003-2006 02
024 15772975 LABEL, FRT TORS BAR ADJ WRNG (PART OF 1) CK1, 2, 3 2003-2006 01
026 15128630 ДАТЧИК, ELEK SUSP FRT POSN CK1 (06-36) (Z55) 2005-2006 01
026 15128631 ДАТЧИК, ELEK SUSP FRT POSN CK1 (06-36) (Z55) 2005-2006 01
027 KNUCKLE, STRG (W/HUB) (СМ. ГРУППУ 04.000 КРЕПЛЕНИЕ СУППОРТА ТОРМОЗА KNUCKLE FOR DETAILED ILLUSTRATED VIEW) 2003-2006
028 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR 2003-2006 02
030 11516382 ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M 2003-2006 02
031 12475478 STUD KIT, FRT LWR CONT ARM BALL (PART OF 47) (INCLS 53) C1 (06-36) 2003-2006 02
032 11516871 BOLT/SCREW - FRT S/ABS, M14X2X66 (FRT S/ABS) 2003-2006 02
033 15046285 ГАЙКА, FRT LWR CONT ARM BALL STUD (PART OF 47) (M16X2X20) (NUT-HEX W/ CONICAL WASHER) (7.530) (ACDelco #15046285) CK1, 2, 3 2003-2006 02
034 WASHER, FRT STAB SHF LINK (PART OF 36) 2003-2006
035 БОЛТ, FRT STAB SHF LINK (PART OF 36) 2003-2006
036 10385580 LINK, FRT STAB SHF (INCLS 34, 35, 37-40, 45) CK1, 2, 3 2003-2006 02
037 INSULATOR, FRT STAB SHF LINK (PART OF 36) 2003-2006
038 WASHER, FRT STAB SHF LINK (PART OF 36) 2003-2006
039 SPACER, FRT STAB SHF LINK (PART OF 36) 2003-2006
040 INSULATOR, FRT STAB SHF LINK (PART OF 36) 2003-2006
041 11518294 BOLT-HFH, M10X1.5X29.5, 17.08 OD, 6202M, 4435M, TAP, TR-PT (FRT STAB SHF INSL CLA) 2003-2006 04
042 88891781 CLAMP, FRT STAB SHF INSL CK1, 2, 3 2003-2006 02
043 14062929 INSULATOR, FRT STAB SHF (RUBBER) (W/31.8MM STAB BAR) CK1, 2, 3 2003-2006 02
043 14071381 INSULATOR, FRT STAB SHF (RUBBER) (28.6 MM STAB BAR) CK1, 2, 3 2003-2006 02
043 15005612 INSULATOR, FRT STAB SHF (FOR 36 MM STAB BAR) CK1, 2, 3 2003-2006 02
044 15006772 SHAFT, FRT STAB (DIA 31.8 MM) CK1 (06-36) (ZQ1, ZW7, Z55, Z71) 2004-2005 01
044 21996496 SHAFT, FRT STAB C157 (06) (Z56) 2005-2006 01
045 ГАЙКА, FRT STAB SHF LINK (PART OF 36) 2003-2006
047 12475479 ARM KIT, FRT LWR CONT (INCLS 23, 31, 33, 46, 48, 53) (INCLS BUSHINGS, STUD, INSULATOR NUT) CK1 (06-36) 2004-2006 01
047 12475480 ARM KIT, FRT LWR CONT (INCLS 23, 31, 33, 46, 48, 53) (INCLS BUSHINGS, STUD, INSULATOR NUT) CK1 (06-36) 2004-2006 01
048 BUSHING, FRT LWR CONT ARM (FRT) (PART OF 47) 2003-2006
049 12477738 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE T3Y) (ACDelco #540-182) C1 (06) (ZW7) (EXC BPH) 2005-2005 02
049 22187159 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE 6296) (CODE A7C, F58, TS5, TS6, TS8, TW6, T2X, T6H, T6J, T6L, T6P, T61, X3A, 5466) (ACDelco #580-208) C157 (06) (Z55) (EXC Y91) 2003-2006 02
049 22187159 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE 6296) (CODE A7C, F58, TS5, TS6, TS8, TW6, T2X, T6H, T6J, T6L, T6P, T61, X3A, 5466) (ACDelco #580-208) CK157 (06) (Y91, Z55) (EXC ANU) 2005-2006 02
049 88965334 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE U7W) (ACDelco #540-8) C1 (06) (Z56) 2005-2006 02
049 88983816 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE TTA, TTC, TXW, TYU, TYW, T8Y, T8Z, T9A, T9B, T9H) (ACDelco #560-214) CK157, 159 (06) (ZQ1) 2003-2006 02
049 89040177 АМОРТИЗАТОР, ПЕРЕДНИЙ SHK (CODE TSP, TYB) (ACDelco #540-160) C1 (06) (BPH, ZW7) 2005-2005 02
050 15834275 INSULATOR, FRT S/ABS (50.0MM DIA X 44.5MM) (POA ABSORBER) CK1, 2, 3 2003-2006 02
051 15733533 БОЛТ, FRT LWR CONT ARM (RR) (M16X2.0X118, 60 THD) CK1, 2, 3 2003-2006 02
052 15733534 БОЛТ, FRT LWR CONT ARM (FRT) (M16X2.0X140, 52 THD) CK1, 2, 3 2003-2006 02
053 FITTING, FRT SUSP LUB (PART OF 31, 47) 2003-2006
