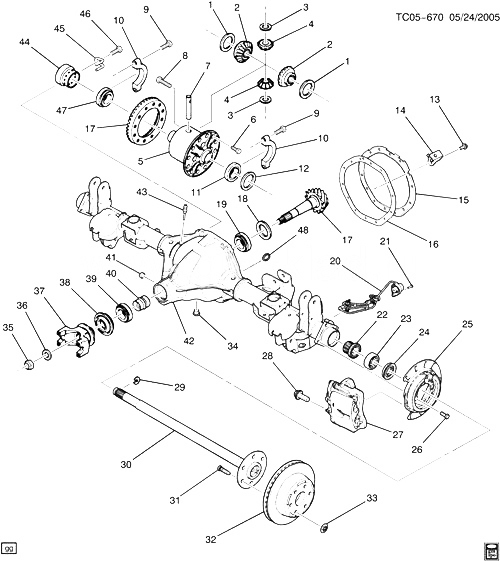

(TC05-670) - 2005-2006 C157(06) ЗАДНЯЯ ОСЬ В СБОРЕ 9.50 RING GEAR ЧАСТЬ 1 (AXN, ACTIVE BRAKE JL4) CHEVROLET TAHOE LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (PART OF 5) (*KIT2) (G80) 2005-2006
001 12337937 WASHER, DIFF SI GR THR (PART OF 5) (PACKAGE INCLS (5) WASHERS) (*KIT2) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 02
002 GEAR, DIFF SI (*KIT2) 2005-2006
003 14012699 WASHER, DIFF P/GR THR (PART OF 5) (FLAT WASHER) (56MM O.D. 23.75MM I.D.) (*KIT2) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 02
004 GEAR, DIFF PINION (*KIT2) 2005-2006
005 14038087 CASE, DIFF (INCLS 1, 3) (FOR NON-CANADIAN ORDERS) (LESS INTERNAL GEARS) C157 (06) (LQ9, AXN, GT4, JH2, JL4) (EXC G80) 2005-2005 01
006 14012703 БОЛТ, RR DIFF R/GR (M12X1.5X22) (HEX) (*KIT1) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 12
007 14012700 SHAFT, DIFF P/GR (148.0MM) (*KIT2) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
007 93441563 SHAFT, DIFF P/GR (*KIT2) (5.535) C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 01
008 12337979 БОЛТ, DIFF P/GR SHF LK (R/AXL) (M10X1.5X59) (CONTAINS 10 LOCK SCREWS) (*KIT2) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
009 14012675 БОЛТ, DIFF BRG CAP (M12X1.75X74) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 04
010 CAP, DIFF BRG (PART OF 42) 2005-2006
011 11505123 BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) C157 (06) 2005-2006 02
011 94664869 BEARING, DIFF C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 02
012 14012725 SHIM, DIFF BRG (5.59 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012726 SHIM, DIFF BRG (5.64 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012727 SHIM, DIFF BRG (5.69 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012728 SHIM, DIFF BRG (5.74 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012729 SHIM, DIFF BRG (5.79 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012730 SHIM, DIFF BRG (5.84 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012731 SHIM, DIFF BRG (5.89 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012732 SHIM, DIFF BRG (5.94 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012733 SHIM, DIFF BRG (5.99 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012734 SHIM, DIFF BRG (6.05 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012735 SHIM, DIFF BRG (6.10 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012736 SHIM, DIFF BRG (6.15 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012737 SHIM, DIFF BRG (6.20 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012738 SHIM, DIFF BRG (6.25 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012739 SHIM, DIFF BRG (6.30 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012740 SHIM, DIFF BRG (6.35 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012741 SHIM, DIFF BRG (6.40 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012742 SHIM, DIFF BRG (6.45 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012743 SHIM, DIFF BRG (6.50 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
012 14012752 SHIM, DIFF BRG (6.55 MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
013 12471307 БОЛТ, R/AXL HSG CVR (PART OF 15) (M8X1.25X20) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 14
014 15148676 CLIP, RR BRK C/OVR PIPE (CLOSED LOOP) (DIA 8.75MM, C-TO-C 36.5, WIDTH 20, HOLE 11MM, SAE1008-1010) C1, 2, 3 2005-2005 01
015 19133285 COVER KIT, R/AXL HSG (INCLS 13, 16) (INCLS COVER, GASKET, PLUGS, BOLTS) C157 (06) (LQ9, AXN, GT4, JH2, JL4) (EXC G80) 2005-2006 01
015 94664876 COVER KIT, R/AXL HSG (INCLS 13, 16) C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 01
016 26063649 ПРОКЛАДКА, R/AXL HSG CVR (PART OF 15) (14 BOLT HOLES) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
017 GEAR SET, DIFF RING DRV PINION (*KIT1) 2005-2006
018 14038010 SHIM KIT, DIFF DRV P/GR BRG (.5080-.5842MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
018 14038011 SHIM KIT, DIFF DRV P/GR BRG (.6096-.7112MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
018 14038012 SHIM KIT, DIFF DRV P/GR BRG (.7366-.8382MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
018 14038013 SHIM KIT, DIFF DRV P/GR BRG (.8636-.9398MM) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
019 00457108 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE, TIMKEN, HM804846-HM804810, 1 7/8 IN ID X 3 3/4 IN OD X 1 3/16 IN THK) (ACDelco #S37) C157 (06-53) 2005-2005 01
019 09418356 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE, TIMKEN, M802048-M802011, 1 5/8 IN ID X 3 1/4 IN OD X 1 1/32 IN THK) (ACDelco #S33) C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2006 01
019 94664871 BEARING, DIFF DRV P/GR INR C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 01
020 15063810 ДАТЧИК, RR WHL SPD (ACDelco #15063810) C1 (06-36) (JH2, JL4) 2005-2006 02
021 15960191 БОЛТ, WHL SPD SEN (M6X1X12) C1, 2, 3 2005-2006 02
022 12479286 RING, WHL SPD SEN RELUCTOR (R/AXLE) C1 (06-36) (JH2, JL4) 2005-2006 02
023 12479031 BEARING, RR WHL (TORRINGTON) (ACDelco #RW20-10) C157 (06) (JH2) 2005-2006 02
024 12471686 SEAL, R/AXL SHF (ACDelco #291-315) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 02
025 SHIELD, RR BRK (СМ. ГРУППУ 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2005-2006
026 БОЛТ, RR BRK BKG PLT 2005-2006
027 CALIPER, RR BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2005-2006
028 15012506 БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) C1 (06) (JL4) 2005-2005 04
029 14012746 LOCK, R/AXL SHF (43.0 X 22.5MM) C157 (06) (LQ9, AXN, GT4, JH2, JL4) (EXC G80) 2005-2006 02
030 88967013 SHAFT, R/AXL C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 02
031 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) C1 (06-36) (GT5, JH2, JL4) 2005-2005 12
032 25757802 ROTOR, RR BRK (330MM DIA, 90MM LONG, STMPD 25757801, 30 MM THICK) (STMPD 25757801) (30 MM THICK) (ACDelco #177-902) C1 (06-36) (JH2) 2005-2006 02
033 RETAINER, RR BRK ROT (PUSH ON) 2005-2006
034 12471308 PLUG, R/AXL HSG DRN (W/WASHER) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
035 88891763 ГАЙКА, DIFF DRV P/GR (PART OF 37) (M10) (*KIT1) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
036 00517900 WASHER, DIFF DRV P/GR (PART OF 37) (.890X1.625X.190) (*KIT1) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
037 12470384 YOKE KIT, DIFF DRV P/GR (INCLS 35, 36, 38) (TRIPLE LIP) (INCL YOKE, SEAL WA, NUT) (FOR VEHICLES W/TWO PIECE PINION SEAL) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
038 26064029 SEAL, DIFF DRV P/GR (PART OF 37) (5.545) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
039 09417781 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, HM88649-HM88610, 1 3/8 IN ID X 2 27/32 IN OD X 1 IN THK) (2.84) (5.484) (ACDelco #S604) C157 (06) 2005-2005 01
039 94664870 BEARING, DIFF DRV P/GR OTR C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 01
040 14012691 SPACER, DIFF DRV P/GR BRG (35.5MM I.D. X 16.3MM WIDE) (*KIT1) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
041 00444788 PLUG, HEADLESS SQ SOCKET 1/2 (DIFF CARR FILL) 2005-2006 01
042 19121581 HOUSING, R/AXL (IF REPLACING AXLE HSG THAT HAS A FILL PLUG, THEN ALSO ORDER COVER PAN KIT 19133285) (INCLS 10) C157 (06) (LQ9, AXN, GT4, JH2, JL4) (EXC G80) 2005-2005 01
042 19121581 HOUSING, R/AXL (IF REPLACING AXLE HSG THAT HAS A FILL PLUG, THEN ALSO ORDER COVER PAN KIT 19133285) (INCLS 10) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
043 26063647 CONNECTOR, R/AXL VENT HOSE C1, 2, 3 2005-2006 01
044 14012753 ГАЙКА, DIFF BRG ADJ (M86X1.5) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
045 14012707 LOCK, DIFF BRG ADJ NUT (5.537) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 02
047 11505123 BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) C157 (06) 2005-2006 02
047 94664869 BEARING, DIFF C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 02
048 12471607 MAGNET, R/AXL HSG CHIP COLLECTOR (4.105) (ACDelco #12471607) C1, 2, 3 2005-2006 01
K01 88965784 GEAR SET, DIFF RING DRV PINION (INCLS 6, 17, 35, 36, 40) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
K02 12479321 GEAR KIT, DIFF SI PINION (RR AXLE) (INCLS 1-4, 7, 8) C157 (06) (LQ9, GT4, JH2, JL4) (EXC G80) 2005-2005 01
K02 94664864 GEAR KIT, DIFF SI PINION (INCLS 1-4, 7, 8) C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) 2005-2005 01
