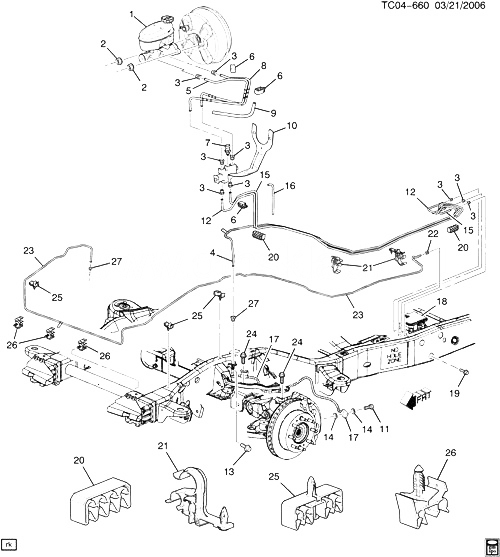

(TC04-660) - 2005-2006 CK1(06-36) ТОРМОЗНАЯ МАГИСТРАЛЬ/ПЕРЕДНЯЯ (EXC ACTIVE BRAKE JL4)(JH2) CHEVROLET TAHOE LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) 2003-2006
002 11517996 ГАЙКА, BRK M/CYL (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2003-2006 02
003 11588803 ГАЙКА, FRT BRK FRT PIPE (PART OF 5, 8, 12, 15) (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE) CK1, 2, 3 2003-2006 07
004 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (LEFT) 2003-2006 AR
005 15181254 PIPE, RR BRK COMB VLV (INCLS 3) CK1 (06-36) (JH2) 2004-2005 01
006 15086469 CLIP, RR BRK FRT PIPE CK1 (06-36) (JH2, JL4) 2003-2005 03
007 SWITCH, BRK COMB (PART OF 10) 2005-2006
008 15181253 PIPE, FRT BRK COMB VLV (INCLS 3) CK1 (06-36) (JH2) 2005-2005 01
009 12360513 ARMOR SHIELD, BRK PIPE (CUT TO LENGTH) (BRK PIPE) 2003-2006 AR
010 21998447 VALVE, BRK COMB (INCLS 7) (ACDelco #21998447) CK1 (06-36) (JH2) (EXC JL4) 2005-2005 01
011 11569669 БОЛТ, FRT BRK HOSE (PART OF 17) (M10X1.5X23, 13THD) (11MM SOCKET) CK1 2005-2006 01
012 15116162 PIPE, BRK PRESS MOD VLV RR BRK (INCLS 3) CK1 (06-36) (JH2) (EXC JL4) 2004-2005 01
013 11516885 SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) 2003-2006 02
014 21012386 WASHER, FRT BRK HOSE (LH RH) (PART OF 17) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386) CK1 2003-2006 AR
015 15116160 PIPE, BRK PRESS MOD VLV FRT BRK (INCLS 3) CK1 (06-36) (JH2) (EXC JL4) 2004-2005 01
016 12360513 ARMOR SHIELD, BRK PIPE (CUT TO LENGTH) (BRK PIPE) 2003-2006 AR
017 15882779 HOSE, FRT BRK (INCLS 11, 14) (ACDelco #176-1388) (WHEN REPL HOSE W/SQ BLK FTNG ANGLED PIPE, THIS ANGLED CORNER BLK FTNG MOUNTS AT 45DEG TO BLEEDER TO PROVIDE PROPER CLEARANCE) C1 (06-36) 2003-2005 01
017 15882780 HOSE, FRT BRK (INCLS 11, 14) (ACDelco #176-1389) (WHEN REPL HOSE W/SQ BLK FTNG ANGLED PIPE, THIS ANGLED CORNER BLK FTNG MOUNTS AT 45DEG TO BLEEDER TO PROVIDE PROPER CLEARANCE) C1 (06-36) (JH2) 2003-2005 01
018 MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 BRAKE MODULE FOR DETAILED ILLUSTRATED VIEW) 2003-2006
019 12475229 БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) CK1, 2, 3 2003-2006 AR
020 11562394 CLIP, FRT BRK PIPE CK1 (JC3, JC4, JH1, JH2) 2003-2006 04
021 15765049 CLIP, FRT BRK PIPE (4-6.35, 5.0, 17.0, 33.0MM, PUSH PIN) CK1 (06-36) (JH2) 2004-2005 01
022 11588803 ГАЙКА, FRT BRK FRT PIPE (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE) CK1, 2, 3 2003-2006 01
023 12548430 TUBING, BRK, 1/4 X 16 FT ROLL, STL (RIGHT) 2003-2006 AR
024 11517517 БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (FRT BRK HOSE) 2003-2006 04
025 11561432 CLIP, FRT BRK PIPE (64.68X25.86X17.0) (HOLDS 4 TUBES) CK1 (JC3, JC4, JH1, JH2) 2003-2006 04
026 15010669 CLIP, FRT BRK FRT PIPE (GRAY) (1-15.0MM, 2-6.35MM) (PUSH PIN W/3 HOLES) CK1 (06-36) (EXC JL4) 2003-2006 01
027 15724652 ГАЙКА, FRT BRK FRT PIPE (7/16-24X0.36) (0.30 THD, .056 LENGTH, 1/4 TUBE, STL, GM7113M) (8.963) CK1, 2, 3 2003-2005 02
