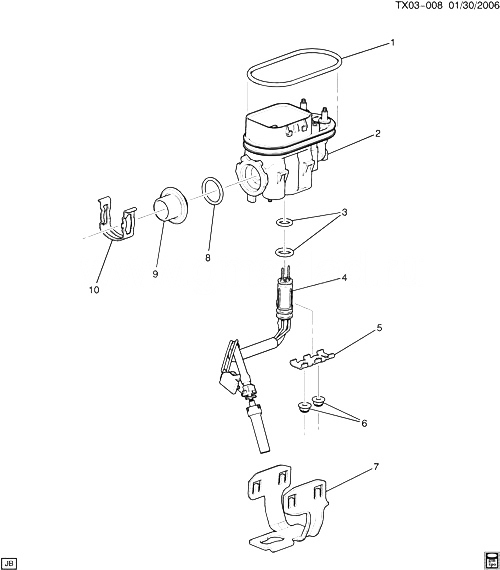

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
SEAL KIT, F/INJN FUEL FEED RTN PIPE (INCLS 3) |
|
2005-2007 |
|
| 001 |
12603372 |
SEAL KIT, F/INJN FUEL FEED RTN PIPE (INCLS 3) |
CK1 (LU3) |
2005-2007 |
01 |
| 002 |
12603371 |
BODY KIT, F/INJR FUEL MTR (THE RETURN SIDE IS PLUGGED INTERNALLY) |
CK1 (LU3) |
2005-2007 |
01 |
| 003 |
|
SEAL, F/INJR (O RING) (LOWER) (PART OF 1) |
|
2005-2007 |
|
| 003 |
|
SEAL, F/INJR (O RING) (UPPER) (PART OF 1) |
|
2005-2007 |
|
| 004 |
88894353 |
INJECTOR, SEQ M/PORT FUEL (ACDelco #217-1516) (USE T/W 88894354 RETAINER) |
CK1 (LU3) |
2005-2007 |
06 |
| 005 |
|
RETAINER KIT, F/INJR |
|
2005-2007 |
|
| 005 |
89018143 |
RETAINER KIT, F/INJR (RETAINER ON BOTTOM OF INJECTOR HOUSING) (ACDelco #89018143) (INCLS RETAINER 2 NUTS) |
CK1 (LU3) |
2005-2007 |
01 |
| 006 |
|
ГАЙКА, F/INJR RET |
|
2005-2007 |
|
| 006 |
22659198 |
ГАЙКА, F/INJR RET (14.865) |
CK1 (LU3) |
2005-2007 |
04 |
| 007 |
88894355 |
BRACKET, CTL M/PORT F/INJR |
CK1 (LU3) |
2005-2007 |
01 |
| 008 |
|
SEAL, FUEL PULSE DPNR (PART OF 9) |
|
2005-2007 |
|
| 009 |
|
DAMPENER KIT, FUEL PULSE (INCLS 8, 10) |
|
2005-2007 |
|
| 009 |
89017873 |
DAMPENER KIT, FUEL PULSE (INCLS 8, 10) |
CK1 (LU3, M30, MG5) |
2005-2007 |
01 |
| 010 |
|
CLAMP, FUEL PULSE DPNR (PART OF 9) |
|
2005-2007 |
|
