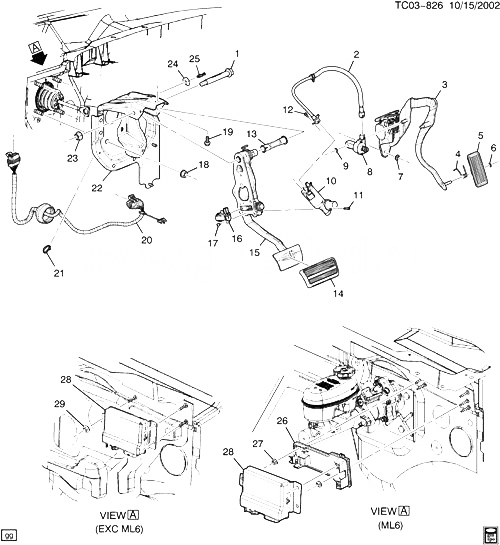

(TC03-826) - 2003-2005 CK1,2(06-36) УПРАВЛЕНИЕ АКСЕЛЕРАТОРОМ (LR4/4.8V,LM7/5.3T,L59/5.3Z,LQ4/6.0U,LQ9/6.0N,L18/8.1G, JF4) CHEVROLET TAHOE LT (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15000145 БОЛТ, BRK PED PIV (12X1.75X120, 25) CK1, 2, 3 2003-2005 01
002 CABLE ASM, BRK PED POSN (PART OF 15) 2003-2005
003 89059124 PEDAL, ACCEL (W/BRKT) (INCLS 8) CK1 (06-36) (AN3, JF4, JH2) 2004-2005 01
004 15713166 ПРУЖИНА, ACCEL PED CK1, 2, 3 2003-2005 01
005 PAD, ACCEL PED (MT1, M32, LQ4) 2003-2005
006 03909063 ГАЙКА, PUSH-ON, 1/4, PH (ACCEL PED PAD) 2003-2005 01
007 88982980 ГАЙКА, ACCEL PED BRKT CK1, 2 (06-36) (AN3) 2003-2005 03
008 ACTUATOR, ACC PED POSN (PART OF 3) 2003-2005
009 ГАЙКА, ACTUATOR (PART OF 15) 2003-2005
010 MOTOR, BRK ACCEL PED ADJR ACTR (PART OF 15) 2003-2005
011 БОЛТ, MOTOR (PART OF 15) 2003-2005
012 БОЛТ, CABLE (PART OF 15) 2003-2005
013 15157907 BUSHING, BRK PED PIV CK1 2003-2005 01
013 15200851 BUSHING, BRK PED PIV CK1 (06-36) (JH2, JF4) 2003-2005 01
014 15706041 COVER, BRK PED CK1, 2, 3 (MG5, MW3, ML6, M96) 2003-2005 01
015 89040147 PEDAL, BRK (INCLS 2, 9-12) CK1 (06-36) (AE7, A95, JF4, JH2) 2004-2005 01
015 89040148 PEDAL, BRK (INCLS 2, 9-12) CK1 (06-36) (AN3, JF4, JH2) 2004-2005 01
016 88982977 ДАТЧИК, BRK PED POSN CK1, 2 (06) (AN3) 2004-2005 01
016 88982977 ДАТЧИК, BRK PED POSN CK1, 2, 3 2004-2005 01
017 88982978 БОЛТ, BRK PED POSN SEN CK1, 2 (06) (AN3) 2004-2005 02
018 11517996 ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917) CK1, 2, 3 2003-2005 04
019 11517182 БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 2003-2005 01
020 15118849 HARNESS, THROT POSN SW WRG CK1, 2, 3 2004-2005 01
021 RETAINER, BRK PED 2003-2005
022 15188778 BRACKET, BRK ACCEL PED CK1 (06-36) (JH2) 2004-2005 01
023 11588927 ГАЙКА, HEX FLANGE, M12X1.75X12, 26 OD, 10, 7111M, PREVAILING TORQUE (BRK PED PIV) 2003-2005 01
024 15188868 WASHER, BRK ACCEL CLU PED BRKT CK1, 2, 3 2003-2005 01
025 15188783 RETAINER, BRK ACCEL CLU PED BRKT INSL (PUSH IN) CK1, 2, 3 2003-2005 01
027 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (THROT ACTR CONT MDL BRKT) 2003-2005 02
028 12588923 MODULE, ELEK THROT ACTR CONT (DRIVER SIDE OF FIREWALL) (ACDelco #12588923) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, KUP) 2005-2005 01
029 11609411 ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (THROT ACTR CONT MDL) 2003-2005 03
