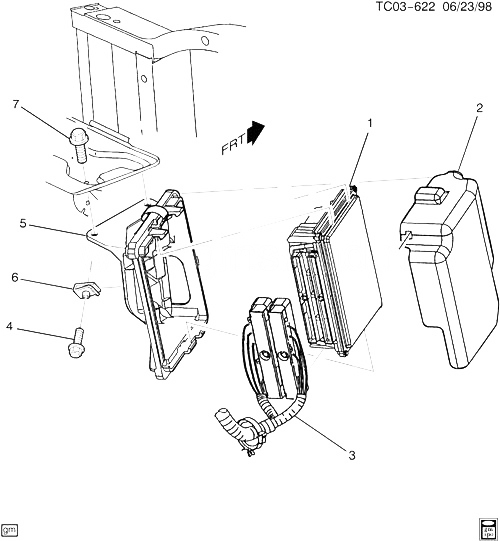

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
MODULE, PWRT CONT (W/O CALN) |
|
2003-2007 |
|
| 002 |
15071609 |
COVER, PCM |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) (EXC HP2) |
2005-2007 |
01 |
| 003 |
|
HARNESS, ENG WRG (СМ. ГРУППУ 02.000 ENGINE HARNESS FOR DETAILED ILLUSTRATED VIEW) (INCLS BOLTS, RETAINERS, CONNECTORS) |
|
2001-2007 |
|
| 004 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (PCM VCM BRKT)
|
2001-2007 |
01 |
|
| 005 |
15047570 |
BRACKET, PCM |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59) |
2005-2006 |
01 |
| 006 |
11518121 |
ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (VCM BRKT) |
|
2001-2007 |
01 |
| 007 |
11514623 |
БОЛТ, HEX W/CON WA, M6X1X20 (BAT TRAY)
|
2001-2007 |
04 |
|
