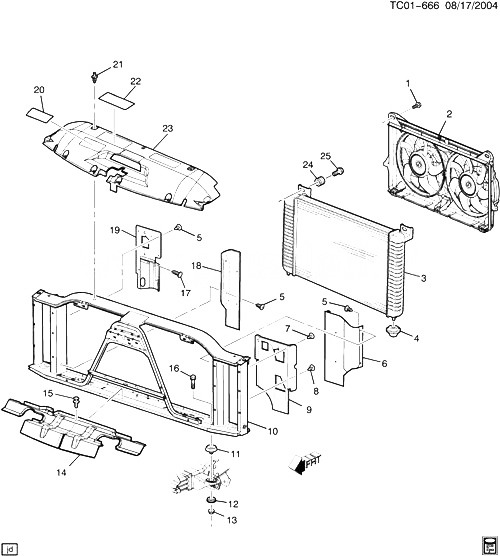

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (ENG COOL FAN) |
|
2005-2006 |
02 |
| 002 |
|
FAN, ENG COOL (W/ SHRD) (СМ. ГРУППУ 01.000 ВЕНТИЛЯТОР ОХЛАЖДЕНИЯ ДВИГАТЕЛЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 003 |
|
RADIATOR, (INCLS 4, 24) (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 004 |
89019121 |
MOUNT, RAD LWR (PART OF 3) |
CK1, 2, 3 (LM7, LQ4) |
2005-2006 |
02 |
| 005 |
15958694 |
RETAINER, RAD AIR BFL (PUSH IN) (PART OF 6, 18, 19) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2005-2006 |
AR |
| 006 |
15773377 |
BAFFLE, RAD AIR (INCLS 5) (CODE 3377) |
CK1 (03-06-43-53) (LM7, LR4, LU3, L33, L59) |
2005-2006 |
01 |
| 007 |
|
CLIP, RAD AIR SI BFL (PART OF 9) |
|
2005-2006 |
|
| 008 |
15958694 |
RETAINER, RAD SUPT BFL (PART OF 9) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2005-2006 |
01 |
| 009 |
15186977 |
BAFFLE, RAD SUPT (INCLS 7, 8) (RUBBER) (UPR OUTER BEHIND HDLP) |
CK1, 2 (06) (C69) |
2005-2006 |
01 |
| 010 |
|
SUPPORT, RAD (СМ. ГРУППУ 01.000 RADIATOR SUPPORT FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 011 |
15837581 |
CUSHION, RAD SUPT UPR
| CK1, 2 (06) |
2005-2006 |
02 |
|
| 012 |
15201791 |
CUSHION, RAD SUPT LWR (71MM OD) (9.023)
| CK1, 2, 3 |
2005-2006 |
02 |
|
| 013 |
03537772 |
ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RAD SUPT) (8.917)
|
2005-2006 |
02 |
|
| 015 |
15958694 |
RETAINER, RAD SUPT BFL (PART OF 14) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) |
CK1, 2, 3 |
2005-2006 |
03 |
| 016 |
|
БОЛТ, RAD SUPT |
|
2005-2006 |
|
| 017 |
15037290 |
RETAINER, RAD SUPT BFL (PART OF 19) (BLACK) (STEEL) (S-CLIP) (1.269) |
CK1, 2, 3 (X88) (EXC P96) |
2005-2006 |
02 |
| 018 |
15185917 |
BAFFLE, RAD AIR (INCLS 5) (CODE 5917) |
CK1 (03-06-43-53) (LM7, LR4, LU3, L33, L59) |
2005-2006 |
01 |
| 019 |
15083918 |
BAFFLE, RAD SUPT (UPPER OUTER) (INCLS 5, 17) (RUBBER) (UPR OTR) (BEHIND HDLP)
| CK1, 2 (06) (C69) |
2005-2006 |
01 |
|
| 020 |
12575049 |
LABEL, ACSRY BELT ROUTING |
CK1, 2, 3 |
2005-2006 |
01 |
| 021 |
11561878 |
RETAINER, RAD AIR UPR BFL (PUSH IN) (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940)
| CK1, 2, 3 |
2005-2006 |
07 |
|
| 022 |
10388864 |
LABEL, A/C REFRIG WRNG (PART OF 23) (W/2.8 LB SUBURBAN 2.5LB UTILITY) (FOR 1ST DES SEE 15206697) |
CK1, 2, 3 (2ND DES) |
2005-2005 |
01 |
| 022 |
15206697 |
LABEL, A/C REFRIG WRNG (PART OF 23) (W/3.0 LB SUBURBAN 2.7LB UTILITY) (FOR 2ND DES SEE 10388864) |
CK1, 2, 3 (1ST DES) |
2005-2005 |
01 |
| 023 |
15809933 |
BAFFLE, RAD AIR UPR (INCLS 22)
| CK157 (06) (X88, Z88) |
2005-2005 |
01 |
|
| 024 |
|
INSULATOR, RAD UPR (PART OF 3) |
|
2005-2006 |
|
| 025 |
11516931 |
БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) |
|
2005-2006 |
02 |
