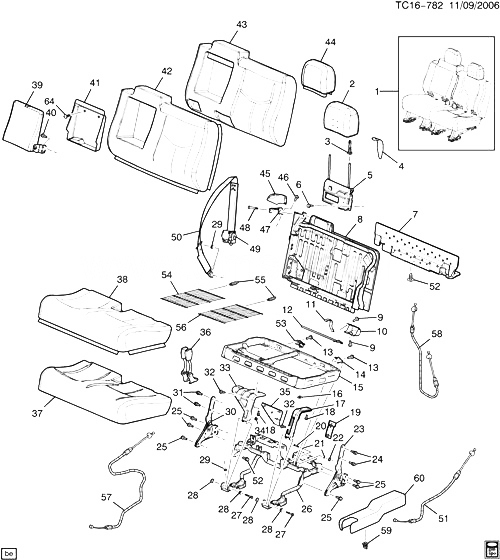

(TC16-782) - 2003-2006 CK157(06) ЗАДНЕЕ СИДЕНЬЕ/FOLDING-60% SIDE(AT5) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL YEAR) (INCLS 2-28, 30-60, 64) 2003-2006
002 88939364 PAD, R/SEAT H/RST K157 (06) (AT5, AX4, X88, 52D, 92D, 522, 922) (EXPORT) 2003-2006 02
002 88940648 PAD, R/SEAT H/RST CK157 (06) (AT5) (EXC AX4) 2003-2006 02
003 12473301 SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) CK1, 2 (AT5, 92D, 922) 2003-2006 04
003 12473301 SUPPORT, R/SEAT H/RST (PEWTER) (W/O BUTTON) CK157 (06) (AT5, 92V) 2003-2006 04
003 12478329 SUPPORT, R/SEAT H/RST (PEWTER) (W/BUTTON) K157 (06) (AT5, AX4, X88, 92D, 922) (EXPORT) 2003-2006 04
003 12478541 SUPPORT, R/SEAT H/RST (SHALE) (W/O BUTTON) CK1, 2 (06) (AT5, X88, Z88, 522) 2003-2006 04
003 12479643 SUPPORT, R/SEAT H/RST (SHALE) (W/BUTTON) K157 (06) (AT5, AX4, X88, 522) (EXPORT) 2003-2006 04
003 88935568 SUPPORT, R/SEAT H/RST (NEUTRAL) (W/O BUTTON) CK1, 2 (AT5, 52D, 522) 2003-2006 04
003 88936944 SUPPORT, R/SEAT H/RST (NEUTRAL) (W/BUTTON) K157 (06) (AT5, AX4, X88, 52D) (EXPORT) 2003-2006 04
004 88977044 COVER, R/SEAT H/RST SUPT (PEWTER) CK157 (06) (AT5) 2003-2006 04
005 GUIDE, R/SEAT H/RST ADJ ROD (PART OF 8) 2003-2006
006 RIVET, R/SEAT H/RST CUSH RET (PART OF 8) 2003-2006
007 88938045 PANEL, R/SEAT BK CUSH FIL (INCLS 52) (NEUTRAL) CK157 (06) (AT5, 52D) 2003-2006 01
007 88938045 PANEL, R/SEAT BK CUSH FIL (INCLS 52) (NEUTRAL) CK157 (06) (AT5, X88, 522) 2003-2006 01
007 88938073 PANEL, R/SEAT BK CUSH FIL (INCLS 52) (PEWTER) CK157 (06) (AT5, 92D, 92V, 922) (EXC Y91) 2003-2006 01
007 88938073 PANEL, R/SEAT BK CUSH FIL (INCLS 52) (PEWTER) K157 (06) (AT5, AX4) (EXPORT) 2003-2006 01
008 89046496 FRAME, R/SEAT BK CUSH (INCLS 5, 6, 58) (INCLS H/RST ADJ ACTR CABLE) CK157 (06) (AT5) (EXC AX4) 2003-2006 01
008 89046500 FRAME, R/SEAT BK CUSH (INCLS 5, 6, 58) CK157 (06) (AT5, AX4) (EXPORT) 2003-2006 01
009 88936521 БОЛТ, R/SEAT RSR FIN CVR (SCREW-ROUND WASHER) (M4.2X1.41X13) (ROUND WASHER) CK1, 2 (06) 2003-2006 AR
010 88939173 COVER, R/SEAT LAT FIN (NEUTRAL) CK1, 2 (06) (AT5, 52I) (EXC Y91) 2003-2006 03
010 88939174 COVER, R/SEAT LAT FIN (PEWTER) (LESS SEMI-CIRCLE PROFILE) CK1, 2 (06) (AT5, 922) (EXC Y91) 2003-2006 03
010 88939174 COVER, R/SEAT LAT FIN (PEWTER) (LESS SEMI-CIRCLE PROFILE) CK1, 2 (06) (AT5, 92D, 92V) 2003-2006 03
011 12477416 STRAP, R/SEAT BK CUSH LAT (PEWTER) CK1, 2 (06) (AT5, 92D) 2003-2006 02
011 12477416 STRAP, R/SEAT BK CUSH LAT (PEWTER) CK1, 2 (06) (AT5, 92V) 2003-2006 02
011 12477416 STRAP, R/SEAT BK CUSH LAT (PEWTER) CK1, 2 (06) (AT5, X88, Z88, 922) (EXC Y91) 2003-2006 02
011 12479651 STRAP, R/SEAT BK CUSH LAT (SHALE) CK1, 2 (06) (AT5, 152, 522) 2003-2006 02
011 88936548 STRAP, R/SEAT BK CUSH LAT (NEUTRAL) CK1, 2 (06) (AT5, 52I) 2003-2006 02
012 88934752 ROD, R/SEAT LAT (60%) CK1, 2, 3 2003-2006 01
013 11562386 БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) 2003-2006 AR
014 88934753 LATCH, R/SEAT (OUTBOARD) CK1, 2 (06) (AT5) 2003-2006 01
015 88976873 FRAME, R/SEAT CUSH (INCLS 54, 56, 55) CK1, 2 (06) (AT5) 2003-2006 01
016 88936538 BUMPER, R/SEAT CUSH CK1, 2 (06) (AT5) 2003-2006 05
017 12477386 BRACKET, R/SEAT HGE (BLACK) (STRAIGHT LEG) CK1, 2 (06) (AT5) 2003-2006 02
018 11562386 БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) 2003-2006 AR
019 12479652 COVER, R/SEAT FRT RSR FIN (BLACK) (STRAIGHT LEG) (16.720) CK1, 2 (06) (AT5) 2003-2006 03
020 12479655 БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) CK1, 2 (06) (AT5) 2003-2006 03
021 12479648 BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) CK1, 2 (06) (AT5) 2003-2006 06
022 88934535 ГАЙКА, R/SEAT BK CUSH LAT STKR CK1, 2 (06) (AT5) 2003-2006 05
023 88978726 LATCH, R/SEAT BK CUSH (O/B) CK157 (06) (AT5) 2003-2006 01
024 88983360 БОЛТ, R/SEAT BK CUSH LAT (M10X1.5X35.0) (HEX FLANGE, DUO TAPTITE) CK1, 2, 3 2003-2006 07
025 88983360 БОЛТ, R/SEAT BK CUSH LAT (M10X1.5X35.0) (HEX FLANGE, DUO TAPTITE) CK1, 2, 3 2003-2006 07
026 88941236 RISER, R/SEAT (PEWTER) CK157 (06) (AT5, Y91, 922) 2003-2006 01
026 88941240 RISER, R/SEAT (BLACK) CK157 (06) (AT5) (EXC Y91) 2003-2006 01
027 12477366 БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) CK1, 2 (06) (AT5) 2003-2006 04
028 12477365 BUSHING, R/SEAT HGE BRKT CK1, 2, 3 2003-2006 08
029 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) 2003-2006 08
030 88978727 LATCH, R/SEAT BK CUSH (I/B) CK157 (06) (AT5) 2003-2006 01
031 88983360 БОЛТ, R/SEAT BK CUSH LAT (M10X1.5X35.0) (HEX FLANGE, DUO TAPTITE) CK1, 2, 3 2003-2006 07
032 12473323 БОЛТ, R/SEAT RSR FIN CVR (M4X0.7X13) (ROUND WASHER HEAD, #2 POZ1 TAPTITE) CK157 (06) (AT5) 2003-2006 AR
033 12477364 BRACKET, R/SEAT HGE (I/B) (BLACK) (Y-LEG) CK1, 2 (06) (AT5) (EXC Y91) 2003-2006 01
034 88939502 BUSHING, R/SEAT BK CUSH LAT (CABLE) CK1, 2 (06) (AT5) 2003-2006 04
035 12479647 COVER, R/SEAT FRT RSR FIN (BLACK) (Y-LEG) CK1, 2 (06) (AT5) 2003-2006 01
036 88955223 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (BKL SI) (PEWTER) (BKL/BKL) CK157 (06) (AT5, 92I) 2003-2006 01
036 88955224 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (BKL SI) (NEUTRAL) (BKL/BKL) CK157 (06) (AT5, 52I) 2003-2006 01
037 88941584 PAD, R/SEAT CUSH (UP LEVEL CLOTH/LEATHER) CK1, 2 (06) (AT5) 2003-2006 01
038 88941410 COVER, R/SEAT CUSH (PEWTER) CK1, 2 (06) (AT5, 5T5, 92D) 2003-2006 01
038 88941410 COVER, R/SEAT CUSH (PEWTER) CK1, 2 (06) (AT5, 92V) 2003-2006 01
038 89040845 COVER, R/SEAT CUSH (PEWTER) CK157 (06) (AT5, 922) (EXC AX4, Y91) 2003-2006 01
038 89040846 COVER, R/SEAT CUSH (SHALE) CK1, 2 (06) (AT5, 522) (EXC Y91) 2003-2006 01
038 89044860 COVER, R/SEAT CUSH (PEWTER) CK1, 2 (06) (AT5, X88, 92D) (EXC AX4, 5T5) 2003-2006 01
038 89044861 COVER, R/SEAT CUSH (NEUTRAL) CK1, 2 (06) (AT5, X88, 52D) 2003-2006 01
039 88941159 ARMREST, R/SEAT (PEWTER) CK1, 2 (06) (AT5, 5T5, 92D) 2003-2006 01
039 88941159 ARMREST, R/SEAT (PEWTER) CK1, 2 (06) (AT5, 92V) 2003-2006 01
039 88976782 ARMREST, R/SEAT (PEWTER) (INCLS CUPHOLDER) CK1, 2 (06) (AT5, 922) (EXC Y91) 2003-2006 01
039 88976784 ARMREST, R/SEAT (SHALE) (INCLS CUPHOLDER) CK1, 2 (06) (AT5, X88, Z88, 522) (EXC Y91) 2003-2006 01
039 88976787 ARMREST, R/SEAT (PEWTER) CK1, 2 (06) (AT5, X88, 92D) (EXC 5T5) 2003-2006 01
039 88976788 ARMREST, R/SEAT (NEUTRAL) (INCLS CUPHOLDER) CK157 (06) (AT5, X88, 52D) (EXC AX4) 2003-2006 01
039 88977003 ARMREST, R/SEAT (PEWTER) K157 (06) (AT5, AX4, X88, 922) (EXPORT) 2003-2006 01
039 88977005 ARMREST, R/SEAT (PEWTER) K157 (06) (AT5, AX4, X88, 92D) (EXPORT) 2003-2006 01
039 88977007 ARMREST, R/SEAT (SHALE) K157 (06) (AT5, AX4, X88, 522) (EXPORT) 2003-2006 01
039 88977009 ARMREST, R/SEAT (NEUTRAL) K157 (06) (AT5, AX4, X88, 52D) (EXPORT) 2003-2006 01
040 11562386 БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) 2003-2006 AR
041 89046549 PANEL, R/SEAT A/RST MT (PEWTER) CK1 (06) (AT5, 92I) 2003-2006 01
041 89046550 PANEL, R/SEAT A/RST MT (SHALE) CK1, 2 (06) (AT5, 522) (EXC Y91) 2003-2006 01
041 89046551 PANEL, R/SEAT A/RST MT (NEUTRAL) CK1, 2 (06) (AT5, 52D) 2003-2006 01
041 89046551 PANEL, R/SEAT A/RST MT (NEUTRAL) CK1, 2 (06) (AT5, Y91, 522) 2003-2006 01
042 89040833 COVER, R/SEAT BK CUSH (PEWTER) CK157 (06) (AT5, 922) (EXC Y91) 2003-2006 01
042 89040834 COVER, R/SEAT BK CUSH (SHALE) CK157 (06) (AT5, 522) (EXC Y91) 2003-2006 01
042 89043749 COVER, R/SEAT BK CUSH (PEWTER) CK157 (06) (AT5, 92V) 2003-2006 01
042 89043749 COVER, R/SEAT BK CUSH (PEWTER) CK157 (06) (AT5, 5T5, 92D) 2003-2006 01
042 89044842 COVER, R/SEAT BK CUSH (PEWTER) CK157 (06) (AT5, X88, 92D) (EXC 5T5) 2003-2006 01
042 89044843 COVER, R/SEAT BK CUSH (NEUTRAL) CK157 (06) (AT5, X88, 52D) 2003-2006 01
043 88941582 PAD, R/SEAT BK CUSH CK157 (06) (AT5) 2003-2006 01
044 88941769 COVER, R/SEAT H/RST (PEWTER) CK157 (06) (AT5, 5T5, 92D) 2003-2006 02
044 88941769 COVER, R/SEAT H/RST (PEWTER) CK157 (06) (AT5, 922) (EXC AX4, Y91) 2003-2006 02
044 88941769 COVER, R/SEAT H/RST (PEWTER) CK157 (06) (AT5, 92V) 2003-2006 02
044 88941770 COVER, R/SEAT H/RST (SHALE) CK157 (06) (AT5, 522) (EXC Y91) 2003-2006 02
044 88941774 COVER, R/SEAT H/RST (PEWTER) CK157 (06) (AT5, X88, 92D) (EXC AX4) 2003-2006 02
044 88941839 COVER, R/SEAT H/RST (PEWTER) K157 (06) (AT5, AX4, X88, 92D) (EXPORT) 2003-2006 02
044 88941840 COVER, R/SEAT H/RST (NEUTRAL) K157 (06) (AT5, AX4, X88, 52D) (EXPORT) 2003-2006 02
044 88941842 COVER, R/SEAT H/RST (PEWTER) K157 (06) (AT5, AX4, X88, 922) (EXPORT) 2003-2006 02
044 88941843 COVER, R/SEAT H/RST (SHALE) K157 (06) (AT5, AX4, X88, 522) (EXPORT) 2003-2006 02
044 89044893 COVER, R/SEAT H/RST CK157 (06) (AT5, X88, 52D) (EXC AX4) 2003-2006 01
045 88940898 BEZEL, R/SEAT SHLDR BELT OPG (PEWTER) (14.875) CK1, 2 (06) (AT5, 92I) 2003-2006 01
045 88940899 BEZEL, R/SEAT SHLDR BELT OPG (NEUTRAL) (14.875) CK1, 2 (06) (AT5, X88, Z88, 52D) 2003-2006 01
045 88940900 BEZEL, R/SEAT SHLDR BELT OPG (NEUTRAL) (14.875) CK1, 2 (06) (AT5, X88, Z88, 522) (EXC Y91) 2003-2006 01
046 88936521 БОЛТ, R/SEAT RSR FIN CVR (M4.2X1.41X13) (ROUND WASHER) CK1, 2 (06) 2003-2006 AR
047 88941767 BRACKET, R/SEAT SHLDR BELT GDE CK1, 2 (06) (AT5) 2003-2006 01
048 88941262 БОЛТ, R/SEAT SHLDR BELT RETR TR CVR BRKT CK1, 2, 3 2003-2006 01
049 15068463 РЕМЕНЬ, R/SEAT CTR (RETR SI) (NEUTRAL) K157 (06) (AT5, AX4, X88, 52I) (EXPORT) 2003-2006 01
049 15180136 РЕМЕНЬ, R/SEAT CTR (RETR SI) (PEWTER) K157 (06) (AT5, AX4, X88, 92I) (EXPORT) 2003-2006 01
049 88955216 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (RETR SI) (PEWTER) CK157 (06) (AT5, 92I) (EXC AX4) 2003-2006 01
049 88955217 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (RETR SI) (NEUTRAL) (14.875) CK157 (06) (AT5, 52I) (EXC AX4) 2003-2006 01
050 15068463 РЕМЕНЬ, R/SEAT CTR (RETR SI) (NEUTRAL) K157 (06) (AT5, AX4, X88, 52I) (EXPORT) 2003-2006 01
050 15180136 РЕМЕНЬ, R/SEAT CTR (RETR SI) (PEWTER) K157 (06) (AT5, AX4, X88, 92I) (EXPORT) 2003-2006 01
050 88955216 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (RETR SI) (PEWTER) CK157 (06) (AT5, 92I) (EXC AX4) 2003-2006 01
050 88955217 РЕМЕНЬ БЕЗОПАСНОСТИ, ЗАДНЕЕ СИДЕНЬЕ CTR (RETR SI) (NEUTRAL) (14.875) CK157 (06) (AT5, 52I) (EXC AX4) 2003-2006 01
051 88941330 CABLE, R/SEAT BK CUSH LAT CK1, 2 (06) (AT5) 2003-2006 03
052 15043750 RETAINER, R/SEAT BK CUSH FIL PNL (PART OF 7) (16.081) CK157 (06) (AT5) 2003-2006 02
053 88934754 LATCH, R/SEAT (INBOARD) CK1, 2 (06) (AT5) 2003-2006 01
054 88938518 WIRE, R/SEAT CUSH SUPT (PART OF 15) CK1, 2 (06) (AT5) 2003-2006 01
055 ПРУЖИНА, R/SEAT CUSH (PART OF 15) 2003-2006
056 88938522 WIRE, R/SEAT CUSH PAD (PART OF 15) CK1, 2 (06) (AT5) 2003-2006 01
057 19126800 CABLE, R/SEAT BK CUSH LAT CK157 (06) (AT5) 2003-2006 01
058 88978646 CABLE, R/SEAT H/RST ADJR ACTR (PART OF 8) CK157 (06) (AT5) 2003-2006 02
059 10290472 RETAINER, R/SEAT HGE FIN CVR (PART OF 60) (10 X 19.2) (12.811) CK1, 2, 3 2004-2006 01
060 15181158 COVER, R/SEAT HGE FIN (INCLS 59) (SHALE) (O/B) CK157 (06) (15I) 2003-2006 01
060 15181159 COVER, R/SEAT HGE FIN (INCLS 59) (NEUTRAL) (O/B) CK157 (06) (52I) 2003-2006 01
060 15181160 COVER, R/SEAT HGE FIN (INCLS 59) (PEWTER) (O/B) CK157 (06) (92I) 2003-2006 01
060 15769527 COVER, R/SEAT HGE FIN (INCLS 59) (NEUTRAL) CK157 (06) (52I) 2003-2006 01
060 15769529 COVER, R/SEAT HGE FIN (INCLS 59) (PEWTER) (O/B) CK157 (06) (92I) 2003-2006 01
060 15769535 COVER, R/SEAT HGE FIN (INCLS 59) (SHALE) (O/B) CK157 (06) (15I) 2003-2006 01
064 88976741 RETAINER, R/SEAT BK CUSH FIL PNL (PEWTER) (16.155) CK1, 2 (06) (AT5, 92I) 2003-2006 02
064 88976743 RETAINER, R/SEAT BK CUSH FIL PNL (SHALE) (16.155) CK1, 2 (06) (AT5, 522, 152) 2003-2006 02
064 88976745 RETAINER, R/SEAT BK CUSH FIL PNL (NEUTRAL) (16.155) CK1, 2 (06) (AT5, 52I) 2003-2006 02
