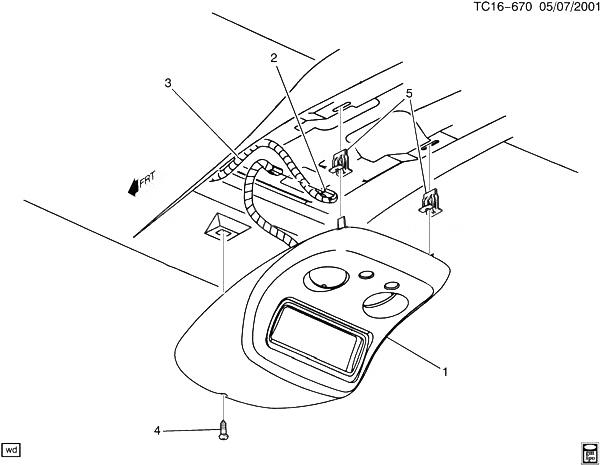

(TC16-670) - 1999-2007 CK1,2,3 КОНСОЛЬ/КРЫША (DK7) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15166062 CONSOLE, RF (SHALE) (RR CONT HOUSING) (INCLS MOUNTING RETAINERS) CK157 (06) (CJ3, DK7, YE9, 52I, 92I) 2003-2006 01
001 15247266 CONSOLE, RF (SHALE) CK1, 2 (06) (DK7, UE1, 52I, 92I) (EXC UG1) 2003-2006 01
001 15256872 CONSOLE, RF (SHALE) CK1, 2 (06) (DK7, UG1, 15I, 52I, 69I, 92I) (EXC UE1) 2003-2006 01
001 15256895 CONSOLE, RF (SHALE) CK1, 2 (06) (DK7, 15I, 52I, 92I) (EXC UE1, UG1) 2003-2006 01
001 15812242 CONSOLE, RF (SHALE) CK1, 2 (06) (DK7, UE1, UG1, 15I, 52I) 2003-2006 01
001 15826743 CONSOLE, RF (SHALE) CK1, 2, 3 (52I, 69I, 6C7) 2003-2006 01
003 15143655 HARNESS, RF ACSRY WRG CK157 (06) (CJ3, DK7, YE9) (EXC C36) 2003-2006 01
003 15143656 HARNESS, RF ACSRY WRG (USED ON VEH W/REAR HVAC CONTROL IN ROOF) CK157 (06) (CJ3, C36, DK7, YE9) 2003-2005 01
003 15143657 HARNESS, RF ACSRY WRG CK157 (06) (CJ2, C36, DK7) (EXC U42) 2003-2006 01
003 15143660 HARNESS, RF ACSRY WRG CK157 (06) (CJ2, C36, DK7, U42) 2003-2006 01
004 11504773 SCREW, PAN HD, TORX, SELF TAP, M4.2X1.41X40, BLK OXIDE 1999-2007 01
005 15748479 RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (RF CNSL BKG PLT) 1999-2007 02
