| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

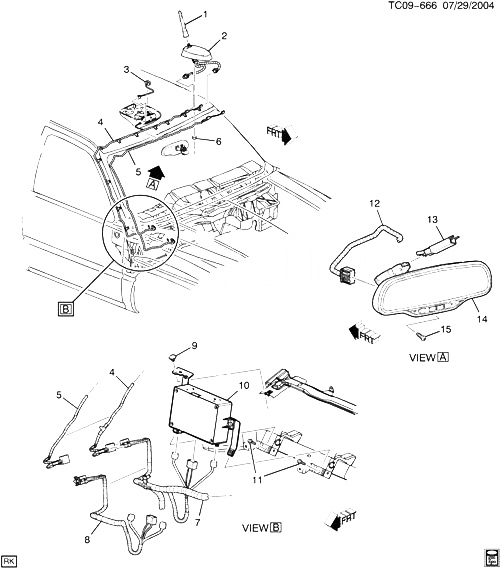

| 001 |
10335281 |
АНТЕННА, MOBILE TEL (ROOF MOUNTED) (MAST) (ACDelco #10335281)
| CK1, 2, 3 (UE1) |
2003-2005 |
01 |
|
| 002 |
22688031 |
BASE, MOBILE TEL ANT (OUTER) (INCLS 6) (ACDelco #22688031) |
CK1, 2, 3 (UE1) |
2004-2005 |
01 |
| 003 |
15247279 |
MICROPHONE, MOBILE TEL (CONSOLE ASM-RF) |
CK1, 2, 3 (UE1) |
2003-2005 |
01 |
| 004 |
10366458 |
HARNESS, RF MKR LP WRG (INCLS 5) |
CK1, 2, 3 (UE1, U01) (EXC CF5) |
2005-2005 |
01 |
| 004 |
10366465 |
HARNESS, SUN RF WRG (SUN ROOF CONT TO RH I/P BEC) (INCLS 5) |
CK1, 2 (06-36) (CF5, UE1) (EXC U01) |
2005-2005 |
01 |
| 004 |
10366468 |
HARNESS, MOBILE TEL MIC WRG (INCLS 5) (ACDelco #10366468) |
CK1, 2, 3 (UE1) (EXC CF5, U01) |
2004-2005 |
01 |
| 005 |
88987877 |
CABLE, NAVIGATION ANT COAX (PART OF 4) (2070MM LONG) (ACDelco #88987877) |
CK1, 2, 3 (UE1) |
2003-2005 |
01 |
| 006 |
|
ГАЙКА, RDO ANT BASE (PART OF 2) |
|
2003-2005 |
|
| 007 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) (INCLS 8) |
|
2003-2005 |
|
| 008 |
88987710 |
CABLE, NAVIGATION ANT COAX (PART OF 7) (715MM LONG) (ACDelco #88987710) |
CK1, 2, 3 (UE1) |
2003-2005 |
01 |
| 009 |
20032850 |
RETAINER, M/TEL XCVR BRKT TEMPL (BLACK) (14.683) |
CK1, 2, 3 (UE1) |
2003-2005 |
01 |
| 010 |
|
TRANSCEIVER, COMMUNICATION CTR CALL (СМ. ГРУППУ 09.000 СИСТЕМА СВЯЗИ (VIU) FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2005 |
|
| 011 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (MOBILE TEL XCVR BRKT) (9.665)
|
2003-2005 |
02 |
|
| 012 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/КРЫША ACCESSORY FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2005 |
|
| 013 |
15195146 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN I/S MIRROR HDLR) |
CK1, 2, 3 (DF5) |
2003-2005 |
01 |
| 013 |
15195146 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN I/S MIRROR HLDR) |
CK1, 2, 3 (AL0) (EXC DF5) |
2003-2005 |
01 |
| 014 |
15237545 |
MIRROR, I/S RR VIEW (INCLS 15) (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR, GPS) |
CK1, 2 (AL0, DF5, UE1, Z49) |
2003-2005 |
01 |
| 014 |
15237546 |
MIRROR, I/S RR VIEW (INCLS 15) (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR, GPS) |
CK1, 2 (AL0, DF5, UE1) (EXC Z49) |
2003-2005 |
01 |
| 014 |
15269045 |
MIRROR, I/S RR VIEW (INCLS 15) (LT SEN, COMPASS, O/S TEMP DISPLAY, ONSTAR, GPS) |
CK1, 2, 3 (DF5, UE1) (EXC AL0) |
2003-2005 |
01 |
| 015 |
|
БОЛТ, I/S RR VIEW MIR (PART OF 14) |
|
2003-2005 |
|
