| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

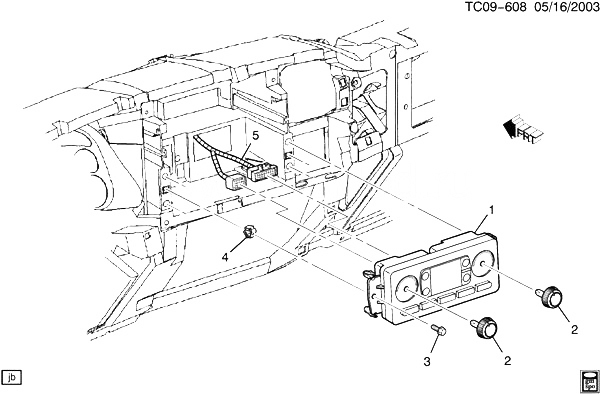

| 001 |
15855848 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (INCLS 2) (ACDelco #15-73561)
| CK1, 2, 3 (CJ2, C49) (EXC HP2) |
2005-2007 |
01 |
|
| 001 |
15855848 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (INCLS 2) (9.273) (ACDelco #15-73561)
| CK1, 2, 3 (CJ2, C49) (EXC HP2) |
2005-2007 |
01 |
|
| 002 |
09369553 |
KNOB, HTR A/C CONT TEMP (PART OF 1) |
CK1, 2, 3 (CJ2) |
2003-2007 |
02 |
| 003 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665)
|
2003-2007 |
02 |
|
| 004 |
17988488 |
ГАЙКА, I/P CARR (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) |
CK1, 2, 3 |
2003-2007 |
AR |
| 005 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
