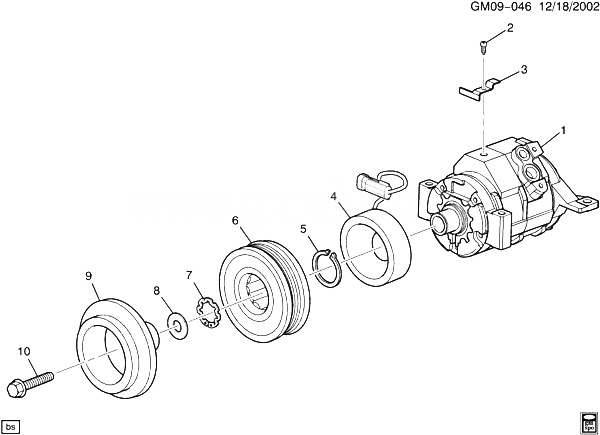

(GM09-046) - 2005-2007 CK КОМПРЕССОР КОНДИЦИОНЕРА В СБОРЕ (LR4/4.8V,L33/5.3B,LM7/5.3T,L59/5.3Z,LQ9/6.0N,LQ4/6.0U,L18/8.1G) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 89024905 COMPRESSOR, A/C (INCLS 2-10) (ACDelco #89024905) CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3, C69) 2003-2006 01
002 SCREW, W/WASHER (PART OF 1) (*KIT1) 2005-2007
003 BRACKET (PART OF 1) (*KIT1) 2005-2007
004 COIL, A/C CLU (PART OF 1) (*KIT1) 2005-2007
005 RING, A/C CLU COIL RET (PART OF 1) (*KIT1) 2005-2007
006 BEARING, A/C CMPR PUL (PART OF 1) (*KIT1) 2005-2007
007 RING, A/C CMPR PUL BRG RET (PART OF 1) (*KIT1) 2005-2007
008 WASHER, A/C CMPR PUL (PART OF 1) (*KIT1) 2005-2007
009 СЦЕПЛЕНИЕ, A/C (PART OF 1) (*KIT1) 2005-2007
010 11561365 БОЛТ, A/C CMPR PUL (PART OF 1) (*KIT1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, CJ2, CJ3) 2001-2007 01
010 11561365 БОЛТ, A/C CMPR PUL (PART OF 1) (*KIT1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, CJ2, CJ3) 2001-2007 01
010 11561365 БОЛТ, A/C CMPR PUL (PART OF 1) (*KIT1) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L59, CJ2, CJ3) 2001-2007 01
K01 12476085 СЦЕПЛЕНИЕ KIT, A/C (4 SPLINED, DENSO) (INCLS 2-10) (INCL PULLEY) (LOW MOUNT) (ACDelco #15-4709) CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59) 2005-2007 01
