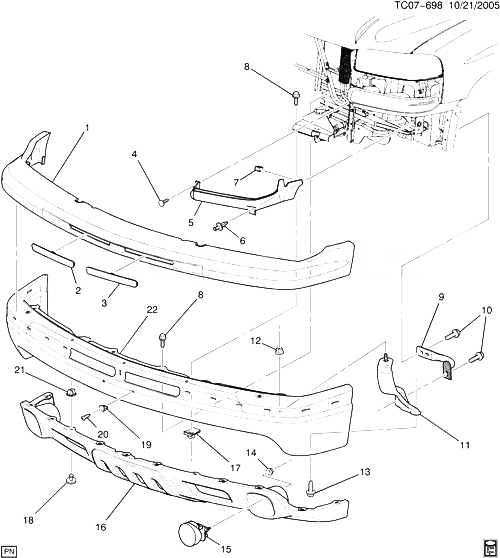

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15050703 |
CAP, FRT BPR FASCIA TR (INCLS 2, 3) (BLACK TEXTURED) (ALSO USED ON BLACK PAINTED BUMPERS)
| CK1, 2 (06) (X88) |
2005-2006 |
01 |
|
| 002 |
15018587 |
COVER, FRT BPR FASCIA OPG (PART OF 1) (MOLDED BLACK)
| CK1, 2 (X88) |
2005-2006 |
01 |
|
| 003 |
15018558 |
COVER, FRT BPR FASCIA OPG (PART OF 1) (MOLDED BLACK)
| CK1, 2 (X88) |
2005-2006 |
01 |
|
| 004 |
10185866 |
RETAINER, FRT BPR FIL (PART OF 5) (BLACK) (29.5 L X 14.0 DIA HD) (PLASTIC) (12.183)
| CK1, 2, 3 (X88) |
2005-2006 |
02 |
|
| 005 |
15035437 |
FILLER, FRT BPR (INCLS 4, 6, 7)
| CK157, 2 (06) (X88) |
2005-2006 |
01 |
|
| 005 |
15035438 |
FILLER, FRT BPR (INCLS 4, 6, 7)
| CK157, 2 (06) (X88) |
2005-2006 |
01 |
|
| 006 |
21110201 |
RETAINER, FRT BPR FIL (PART OF 5) (BLACK) (25.4 L X 19.1 DIA HD) (PUSH IN) (FITS 7.9MM HOLE) (USE W/15035437, 15035438, 15049381)
| CK1, 2, 3 (X88, Z88) |
2005-2006 |
02 |
|
| 007 |
15037290 |
RETAINER, FRT BPR FIL (PART OF 5) (BLACK) (STEEL) (S-CLIP) |
CK1, 2, 3 (X88, Z88) |
2005-2006 |
02 |
| 008 |
11516845 |
БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (FRT BPR IMP BAR)
|
2005-2006 |
05 |
|
| 009 |
15705657 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK157 (06) |
2005-2006 |
01 |
|
| 009 |
15705658 |
BRACE, FRT BPR IMP BAR (PENCIL BRACE)
| CK157 (06) |
2005-2006 |
01 |
|
| 010 |
11517827 |
БОЛТ, HFH W/FL WA, M10X1.5X35, 20 THD, 25 OD, 9.8, 7114M, MACH, P-PT, 6175M A (FRT BPR IMP BAR BR)
|
2005-2006 |
06 |
|
| 011 |
88944245 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK1, 2 (06) (VG3, X88, YE9) |
2005-2006 |
01 |
|
| 011 |
88944245 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK157, 2 (06) (SLT, TGK, ZY1, VG3, X88, YE9) (EXC D99) |
2005-2006 |
01 |
|
| 011 |
88944245 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK157, 2 (06) (VG3, X88, YE9) (EXC D99, SLT) |
2005-2006 |
01 |
|
| 011 |
88944246 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK1, 2 (06) (VG3, X88, YE9) |
2005-2006 |
01 |
|
| 011 |
88944246 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK157, 2 (06) (SLT, TGK, ZY1, VG3, X88, YE9) (EXC D99) |
2005-2006 |
01 |
|
| 011 |
88944246 |
BRACE, FRT BPR IMP BAR (INNER-BRACES BEHIND BPR BAR)
| CK157, 2 (06) (VG3, X88, YE9) (EXC D99, SLT) |
2005-2006 |
01 |
|
| 012 |
11516781 |
ГАЙКА, HEX W/TT CON WA M10X1.5X10 24-OD 9 PC (FRT BPR IMP BAR BRKT) (8.917)
|
2005-2006 |
02 |
|
| 013 |
11516845 |
БОЛТ, HFH, W/FL WA, 10X1.5X35, 22THD, 22.3 O.D., P PT, 9.8, 7114M (FRT BPR IMP BAR)
|
2005-2006 |
02 |
|
| 014 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (FRT FOG LP)
|
2005-2006 |
04 |
|
| 015 |
15770014 |
LAMP, FRT FOG
| CK1 (06) (BPH) |
2005-2006 |
02 |
|
| 016 |
15766483 |
DEFLECTOR, FRT AIR (CHARCOAL)
| CK157, 159 (06) (BPH) |
2005-2006 |
01 |
|
| 017 |
11516835 |
NUT В СБОРЕ METRIC HX FLG AND RETAINER, M12X1.75 (FRT BPR IMP BAR) (8.921)
|
2005-2006 |
02 |
|
| 018 |
15733971 |
RETAINER, FRT A/DFL (PUSH IN) (13MM) (1.272)
| CK1, 2, 3 |
2005-2006 |
13 |
|
| 019 |
03907444 |
ГАЙКА, PUSH IN, SQUARE, UN THD, M9.5 SQ HOLE, NYLON (RR LIC PLT)
|
2005-2006 |
04 |
|
| 020 |
09423101 |
SCREW, TAP, M6.3X1.81X16, 14.55 O.D., 7114M, PZ0R (RR LIC PLT)
|
2005-2006 |
04 |
|
| 021 |
15733970 |
RETAINER, FRT A/DFL (PUSH IN) (BLACK) (16MM) (SCREW NUT)
| CK1, 2, 3 |
2005-2006 |
13 |
|
| 022 |
12335826 |
БАМПЕР, ПЕРЕДНИЙ IMP (PAINT TO MATCH) (W/O BRACES) (IF TOP CAP NEEDS REPLACING, ORDER P/N 88937339) (ELPO COATED)
| CK1, 2 (06) (VG3, X88) |
2005-2005 |
01 |
|
| 022 |
12335826 |
БАМПЕР, ПЕРЕДНИЙ IMP (PAINT TO MATCH) (W/O BRACES) (IF TOP CAP NEEDS REPLACING, ORDER P/N 88937339) (ELPO COATED)
| CK1, 2 (06) (VB5, X88) |
2005-2006 |
01 |
|
| 022 |
12336026 |
БАМПЕР, ПЕРЕДНИЙ IMP (CHROME) (W/O CAP) (W/BACKSIDE COATING) (W/O BRACES)
| CK157, 2 (06) (TGK, ZY1, VG3, X88, YE9) (EXC D99) |
2005-2006 |
01 |
|
| 022 |
12336026 |
БАМПЕР, ПЕРЕДНИЙ IMP (CHROME) (W/O CAP) (W/BACKSIDE COATING) (W/O BRACES)
| CK157, 2 (06) (VG3, X88, YE9) (EXC D99, SLT) |
2005-2006 |
01 |
|
