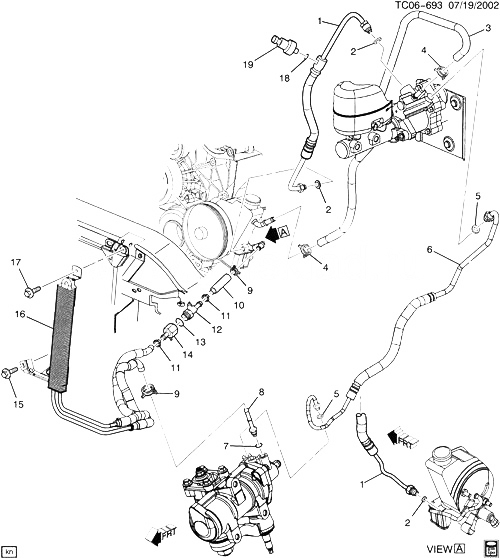

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15295856 |
HOSE, P/B BOOS INL (INCLS 2, 18, 19) (ACDelco #176-1376) |
K1 (06) (JE1) |
2005-2005 |
01 |
| 002 |
24500514 |
SEAL, P/B BOOS VAC PIPE (O RING) (PART OF 1) (3.278) |
K1 (LU3) |
2004-2006 |
01 |
| 003 |
15804953 |
HOSE, P/B BOOS OTLT (INCLS 4) (ACDelco #176-1489) |
K1 (06-36) |
2005-2006 |
01 |
| 004 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 3)
|
2000-2006 |
02 |
|
| 005 |
26001594 |
SEAL, P/S GR INL HOSE (O RING) (PART OF 6) (7.65MM IDX1.63MM THK)
| K1, 2, 3 |
2001-2006 |
AR |
|
| 006 |
15295842 |
HOSE, P/S GR INL (INCLS 5) |
K1 (06-36) |
2004-2006 |
01 |
| 007 |
26001594 |
SEAL, P/S GR OTLT HOSE (PART OF 8) (7.65MM IDX1.63MM THK)
| K1, 2, 3 |
2001-2006 |
01 |
|
| 008 |
15295836 |
PIPE, P/S GR OTLT (INCLS 7) |
K1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) |
2005-2006 |
01 |
| 009 |
11516255 |
CLAMP, SPRING BAND HOSE (M16X1) (PART OF 16)
|
2000-2006 |
02 |
|
| 010 |
07828506 |
HOSE, P/S FLUID CLG (PART OF 16) |
|
2005-2006 |
|
| 011 |
|
CLAMP, P/S FLUID CLR OTLT HOSE (PART OF 16) |
|
2005-2006 |
|
| 012 |
14048077 |
SWITCH, P/B BOOS FLUID FLOW ALARM (PART OF 16) (1 PIN TERMINAL) (4.810)
| K1 (06) (JE1) |
2005-2006 |
01 |
|
| 013 |
05474386 |
ПРОКЛАДКА, P/B BOOS (PART OF 16) (4.810) |
K1 (06) (JE1) (EXPORT) |
2005-2006 |
01 |
| 014 |
|
FITTING, P/B BOOS FLUID FLOW ALARM SW (PART OF 16) |
|
2004-2006 |
|
| 015 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (P/S FLUID CLR)
|
2000-2006 |
01 |
|
| 016 |
15295849 |
COOLER, P/S FLUID (INCLS 9-14) |
K1 (06) (JE1) |
2005-2006 |
01 |
| 017 |
11589039 |
БОЛТ, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (A/C CNDSR BRKT)
|
2000-2006 |
01 |
|
| 018 |
|
SEAL, P/S PRESS SEN (O RING) (PART OF 1) |
|
2004-2006 |
|
| 019 |
|
SWITCH, P/B BOOS FLUID FLOW ALARM (PART OF 1) |
|
2004-2006 |
|
