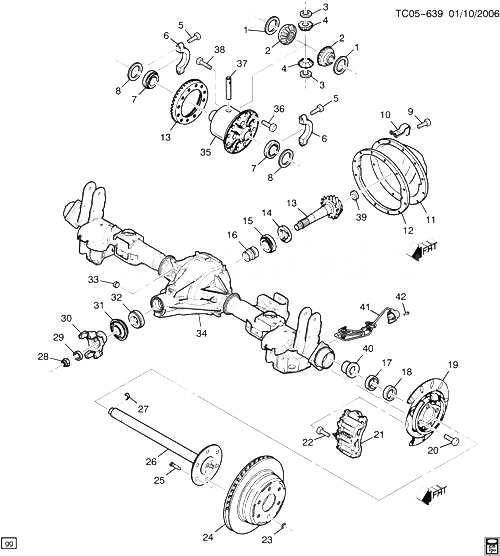

(TC05-639) - 2005-2006 CK1(06-36) ЗАДНЯЯ ОСЬ В СБОРЕ 8.625 RING GEAR (ACTIVE BRAKE JL4, EXC AXN) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 WASHER, DIFF SI GR THR (*KIT2) 2005-2006
002 GEAR, DIFF SI (*KIT2) 2005-2006
003 03984818 WASHER, DIFF P/GR THR (.797 I.D. 1.70 O.D.) (*KIT2) CK1 (06-36) (EXC G80) 2003-2006 02
004 GEAR, DIFF PINION (*KIT2) 2005-2006
005 00454947 БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (DIFF BRG CAP) 2003-2006 04
006 CAP, DIFF CARRIER BEARING (PART OF 34) 2005-2006
007 25824250 BEARING, DIFF (ACDelco #S1380) CK1 2003-2006 02
008 12471330 SPACER, DIFF BRG (4.37-4.32MM THK) (5.650) CK1 2003-2006 02
009 12471307 БОЛТ, R/AXL HSG CVR (M8X1.25X20) (*KIT1) CK1 (EXC P96) 2003-2006 10
010 15148676 CLIP, RR BRK C/OVR PIPE (CLOSED LOOP) (DIA 8.75MM, C-TO-C 36.5, WIDTH 20, HOLE 11MM, SAE1008-1010) CK1, 2, 3 2003-2005 01
011 COVER, R/AXL HSG (*KIT1) 2005-2006
012 15807693 ПРОКЛАДКА, R/AXL HSG CVR (10 BOLT HOLES) (*KIT1) CK1 2003-2006 01
013 12479056 GEAR SET, DIFF RING DRV PINION CK1 (GT5) 2003-2006 01
013 12479129 GEAR SET, DIFF RING DRV PINION (INCLS BOLTS, PINION, RING SPACER) CK1 (GU6) 2005-2006 01
013 12479316 GEAR SET, DIFF RING DRV PINION CK1 (GT4) 2003-2006 01
014 01394892 SHIM KIT, DIFF DRV P/GR BRG (.020-.024 THK) CK1 2003-2006 01
014 01394893 SHIM KIT, DIFF DRV P/GR BRG (.025-.029 THK) CK1 2003-2006 01
014 01394894 SHIM KIT, DIFF DRV P/GR BRG (.030-.034 THK) CK1 2003-2006 01
014 01394895 SHIM KIT, DIFF DRV P/GR BRG (.035-.039 THK) CK1 2003-2006 01
014 26043991 SHIM KIT, DIFF DRV P/GR BRG (.040-.044 THK) CK1 2003-2006 01
014 26043992 SHIM KIT, DIFF DRV P/GR BRG (.045-.049 THK) CK1 2003-2006 01
015 15286375 BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE) (ACDelco #S1371) CK1 2003-2006 01
016 12479162 SPACER, DIFF DRV P/GR BRG (.062-.068 THK) CK1 2003-2006 01
017 12479031 BEARING, R/AXL SHF (5.855) (ACDelco #RW20-10) CK1 (EXC P96) 2003-2006 02
018 12471686 SEAL, R/AXL SHF (ACDelco #291-315) CK1 (EXC P96) 2003-2006 02
019 SHIELD, RR BRK (СМ. ГРУППУ 04.000 PARKING BRK ASM FOR DETAILED ILLUSTRATED VIEW) 2003-2006
020 11509421 БОЛТ, PARK BRK (8.625 R/GR) (M12X1.75X40, 35.6 THD) (8.900) CK1 (06-36) (JH2) 2004-2005 08
021 CALIPER, RR BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ЗАДНИЙ FOR DETAILED ILLUSTRATED VIEW) 2005-2006
022 15012506 БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) CK1 2005-2006 04
023 RETAINER, RR BRK ROT (PUSH ON) 2005-2006
024 25757802 ROTOR, RR BRK (330MM DIA, 90MM LONG, STMPD 25757801, 30 MM THICK) (STMPD 25757801) (30 MM THICK) (ACDelco #177-902) CK1 (06-36) (JH2) 2004-2006 02
025 11588810 STUD, RR WHL (M14X1.5X65) K1 (06-36) (GT5, JH2) 2004-2005 16
025 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK1 (06) 2003-2005 12
025 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK1 (06-36) (GT4, JH2) 2004-2005 12
025 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) K1 (06-36) (GU6, JH2) 2005-2005 12
025 11588811 STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) CK157, 159 2005-2006 12
026 12479285 SHAFT, R/AXL CK1 (06-36) (JH2) 2005-2006 02
027 03833322 LOCK, R/AXL SHF (39.43 X 19.94MM) CK1 2003-2006 02
028 88891763 ГАЙКА, DIFF DRV P/GR (M10) CK1 2003-2006 01
029 00517900 WASHER, DIFF DRV P/GR (.890X1.625X.190) CK1 2003-2006 01
030 12470387 YOKE KIT, DIFF DRV P/GR (30 TEETH) (INCLS YOKE, SEAL, WASHER, NUT) (FOR NON-CANADIAN ORDERS) CK1 (06-36) 2003-2005 01
031 26064028 SEAL, DIFF DRV P/GR (2 PIECE PINION SEAL) (TRIPLE LIP) (RR AXLE) CK1 2003-2006 01
032 15286376 BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M88048-M88010, 1 5/16 IN ID X 2 11/16 IN OD X 7/8 IN THK) (5.484) (ACDelco #S1372) CK1 2003-2006 01
033 25522466 PLUG, 1/2-14 X 39/64 (R/AXL HSG FILL) (ACDelco #25522466) 2003-2006 01
034 12479289 HOUSING, R/AXL (INCLS 6) CK1 (06-36) (JH2, JL4) 2004-2006 01
035 12471540 CASE, DIFF (STAMPED 7875/LESS INT GEARS) CK1 (EXC G80, P96) 2003-2006 01
036 14066913 БОЛТ, RR DIFF R/GR (7/16-20X7/8) (HEX) CK1 2003-2006 10
037 26056109 SHAFT, DIFF P/GR (124.84MM) (*KIT2) CK1 (EXC P96) 2003-2006 01
038 14056196 БОЛТ, DIFF P/GR SHF LK (5/16-18X1 3/4) (*KIT2) CK1 2003-2006 01
039 12471607 MAGNET, R/AXL HSG CHIP COLLECTOR (4.105) (ACDelco #12471607) CK1, 2, 3 2003-2006 01
040 12479286 RING, WHL SPD SEN RELUCTOR (8.625 R/GEAR) (R/AXLE) (ACDelco #12479286) CK1 (06-36) (JH2, JL4) 2004-2006 02
041 15063810 ДАТЧИК, RR WHL SPD (ACDelco #15063810) CK1 (06-36) (JH2, JL4) 2004-2006 02
042 15960191 БОЛТ, WHL SPD SEN (M6X1X12) CK1, 2, 3 2003-2006 02
K01 15290822 COVER KIT, R/AXL HSG (INCLS 9, 11, 12) (INCLS COVER, GASKET, PLUG, BOLTS, BRACKETS) CK1 2003-2006 01
K02 19179021 GEAR KIT, DIFF SI PINION (INCLS 1-4, 37, 38) (RR AXLE) CK1 (EXC G80) 2003-2006 01
