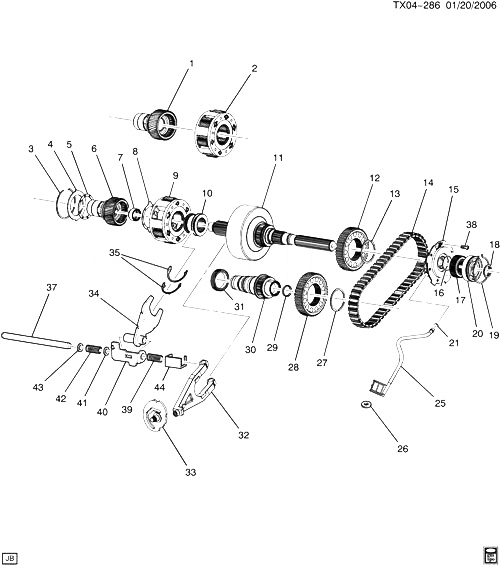

(TX04-286) - 2005-2007 K1,2 РАЗДАТОЧНАЯ КОРОБКА (NP8) ЧАСТЬ 2 ВНУТРЕННИЕ КОМПОНЕНТЫ (NVG246) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 88962329 GEAR, TRFER CASE INPUT (32 TOOTH) (INCLS 7) K1, 2 (MN8, MT1, NP8) 2005-2006 01
002 88958816 CARRIER, TRFER CASE HIGH/LOW PLNT K1, 2 (MN8, MT1, NP8) 2005-2006 01
004 15664905 RING, TRFER CASE HIGH/LOW PLNT P/GR SHF RET (LOCK PLATE) (4.538) K1, 2 (MN8, MT1, NP8) 2005-2006 01
005 12470959 WASHER, TRFER CASE INPUT SHF THR BRG (FRT) K1 (M30, M33, NP8) 2005-2005 01
006 88962322 GEAR, TRFER CASE INPUT (27 TOOTH) (INCLS 7) K1 (M30, M33, NP8) 2005-2005 01
007 12350040 BEARING, TRFER CASE INPUT GR (PART OF 1, 6) (UPR-BETWEEN 4 WHL DR CLU PRESS HUB HI/LO PLNT CARRIER) K1, 2 (NP8) 2005-2007 01
008 15547390 WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (REAR) K1, 2 (MN8, MT1, NP8) 2005-2006 01
008 15547390 WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (REAR) K1 (M30, NP8) 2005-2006 02
009 88984435 CARRIER, TRFER CASE HIGH/LOW PLNT (I/P GR 27T, 4 PINIONS) (3 PINION CARR REPLS OLD W/FOUR) K1 (M30, M33, NP8) 2005-2005 01
010 12386242 СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW (TRANS CASE CODE ZB) (USE T/W 12475009 FORK PAD) (FOR 2ND DES SEE 88962354) K1 (M30, M33, NP8) (1ST DES) 2005-2005 01
010 88962354 СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW (SERV T/W 89059621/FORK) (4.555) K1, 2 (MN8, MT1, NP8) 2005-2006 01
010 88962354 СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW (TRANS CASE CODE DH, BX) (SERV T/W 89059621/FORK) (USE T/W 12384966 FORK PAD) (FOR 1ST DES SEE 12386242) K1 (M30, M33, NP8) (2ND DES) 2005-2005 01
011 SHAFT, TRFER CASE RR OUTPUT (СМ. ГРУППУ 04.000 РАЗДАТОЧНАЯ КОРОБКА СЦЕПЛЕНИЕ COMPONENTS (NVG246) (NP8) FOR DETAILED ILLUSTRATED VIEW) 2005-2007
012 12474614 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV K1, 2 (NP8) 2005-2007 01
013 12547477 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.5) (OUTER) K1, 2 (NP8) 2005-2007 02
014 12474602 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1, 2 (NP8) 2005-2007 01
015 12547630 PUMP, TRFER CASE OIL (INCLS 16, 38) (INCLS BOLTS, BUSHING, HOUSINGS ROTORS) K1, 2 (NP8) 2005-2007 01
016 12473056 WASHER, TRFER CASE МАСЛЯНЫЙ НАСОС (TYPE 241C/243C) (PART OF 15) K1, 2 (NP8) 2005-2007 01
017 12547474 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (4.329) K1 (M33, NP8) 2005-2006 01
017 12547474 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR (4.329) K1, 2 (M30, MN8, MT1, NP8) 2005-2006 01
017 12547474 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1 (M30, M33, NP8) 2005-2005 01
017 12547474 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1, 2 (MN8, MT1, NP8) 2005-2006 01
018 12470554 RING, TRFER CASE RR OUTPUT SHF RR BRG RET (ACDelco #12470554) K1, 2 (NP8) 2005-2007 01
019 12547637 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET K1, 2 (NP8) 2005-2007 01
020 88962351 BEARING, TRFER CASE RR OUTPUT SHF RR (ACDelco #88962351) K1, 2 (NP8) 2005-2005 01
021 15547430 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1 (M30, M33, NP8) 2005-2005 01
021 15547430 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1, 2 (MN8, MT1, NP8) 2005-2006 01
025 88962328 PIPE, TRFER CASE O/PMP SUC K1 (M30, M33, NP8) 2005-2005 01
025 88962328 PIPE, TRFER CASE O/PMP SUC K1, 2 (MN8, MT1, NP8) 2005-2006 01
026 12471607 MAGNET, TRFER CASE CHIP COLLECTOR (4.105) (ACDelco #12471607) K1, 2 (NP8) 2005-2007 01
027 12547477 RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (2.5) (OUTER) K1, 2 (NP8) 2005-2007 01
028 12474614 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN K1, 2 (NP8) 2005-2007 01
029 12473236 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 30) (4.510) K1 (M30, M33, NP8) 2005-2005 01
029 12473236 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 30) (4.510) K1, 2 (MN8, MT1, NP8) 2005-2006 01
030 12470958 SHAFT, TRFER CASE FRT OUTPUT (INCLS 29, 31) (INCLS WHEEL PLUG) K1, 2 (NP8) 2005-2007 01
031 12472605 WHEEL, TRFER CASE FRT OUTPUT SHF SPD RELUCTOR (PART OF 30) K1, 2 (NP8) 2005-2007 01
032 88996468 LEVER, TRFER CASE FOUR WHL DRV CLU K1 (M30, M33, NP8) 2005-2005 01
032 88996468 LEVER, TRFER CASE FOUR WHL DRV CLU K1, 2 (MN8, MT1, NP8) 2005-2006 01
033 12384979 LEVER, TRFER CASE FOUR WHL DRV ACTR K1 (M30, M33, NP8) 2005-2005 01
033 12384979 LEVER, TRFER CASE FOUR WHL DRV ACTR K1, 2 (MN8, MT1, NP8) 2005-2006 01
034 FORK, TRFER CASE RANGE (INCLS 39-44) (*KIT1) 2005-2007
034 89059621 FORK, TRFER CASE HIGH/LOW SHFT (SERV T/W 88962354/СЦЕПЛЕНИЕ) (WITH PADS) K1, 2 (NP8) 2005-2007 01
035 PAD, TRFER CASE RANGE MODE SHFT FORK END 2005-2005
035 12384966 PAD, TRFER CASE HIGH/LOW SHFT FORK (CENTER) (*KIT1) K1 (MN8, MT1, NP8) 2005-2005 02
035 12384966 PAD, TRFER CASE HIGH/LOW SHFT FORK (TRANS CASE CODE DH) (CENTER) (*KIT1) (USE T/W 88962354/SLEEVE) (FOR 1ST DES SEE 12475009) K1 (M30, M33, NP8) (2ND DES) 2005-2005 02
035 12475008 PAD, TRFER CASE HIGH/LOW SHFT FORK (END) (*KIT1) K1 (M30, M33, NP8) 2005-2005 02
035 12475008 PAD, TRFER CASE HIGH/LOW SHFT FORK (END) (*KIT1) K1, 2 (MN8, MT1, NP8) 2005-2005 02
035 12475009 PAD, TRFER CASE HIGH/LOW SHFT FORK (CENTER) (*KIT1) K1, 2 (MN8, MT1, NP8) 2005-2005 01
035 12475009 PAD, TRFER CASE HIGH/LOW SHFT FORK (TRANS CASE CODE BX, ZB) (CENTER) (*KIT1) (USE T/W 12386242/SLEEVE) (FOR 2ND DES SEE 12384966) K1 (M30, M33, NP8) (1ST DES) 2005-2005 01
037 12547661 SHAFT, TRFER CASE SHFT FORK K1, 2, 3 (NP1, NP2, NP8) 2005-2007 01
038 09417862 SCREW, FL HD C/R TAP 8-32X1/2 THD STY DCAD/ZC (PART OF 15) 2005-2007 06
039 15662307 ПРУЖИНА, TRFER CASE SHFT FORK (*KIT1) K1, 2 (NP8) 2005-2007 02
040 BRACKET, TRFER CASE TWO/FOUR WHL DRV SHFT FORK (*KIT1) 2005-2007
041 15662306 WASHER, TRFER CASE SHFT FORK SHF GDE (*KIT1) (4.570) K1, 2 (NP8) 2005-2007 01
042 15662307 ПРУЖИНА, TRFER CASE SHFT FORK (*KIT1) K1, 2 (NP8) 2005-2007 02
043 15662236 BUSHING, TRFER CASE HIGH/LOW SHFT FORK (*KIT1) (4.525) K1, 2 (NP8) 2005-2007 01
044 BRACKET, TRFER CASE TWO/FOUR WHL DRV SHFT FORK (*KIT1) 2005-2007
K01 89059621 FORK, TRFER CASE HIGH/LOW SHFT (INCLS 34, 35, 39-44) (SERV T/W 88962354/СЦЕПЛЕНИЕ) (WITH PADS) K1, 2 (NP8) 2005-2007 01
