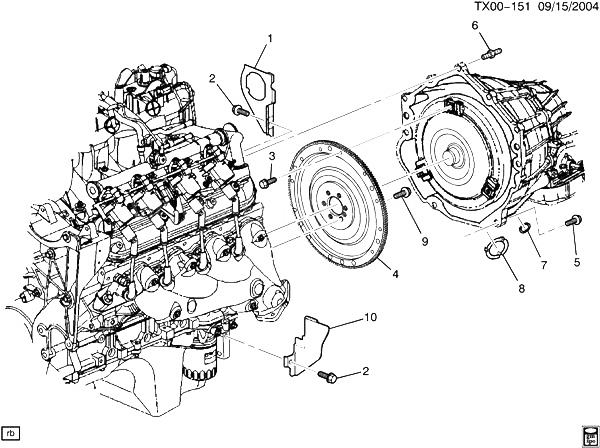

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12561536 |
COVER, TRANS (ACDelco #12561536) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, M30, M32) |
2005-2005 |
01 |
| 002 |
12560226 |
БОЛТ, HEX W/FLAT WASH, M6.0X1.0X14.5, 13.5, 17 OD, 9.8, 7114M, MACH (TRANS CVR) |
|
1999-2007 |
02 |
| 003 |
11589040 |
БОЛТ, TRANS T/CV
| CK1 (M30, M32, M33) |
2004-2005 |
03 |
|
| 004 |
12569647 |
PLATE, A/TRNS FLEX |
CK1 (LM7, HP2) |
2004-2007 |
01 |
| 004 |
12606620 |
PLATE, A/TRNS FLEX |
CK1 (LR4, M30) |
1999-2006 |
01 |
| 004 |
12606620 |
PLATE, A/TRNS FLEX |
CK1 (L59, M30) |
2002-2006 |
01 |
| 004 |
12606620 |
PLATE, A/TRNS FLEX |
CK1 (LM7) |
2004-2006 |
01 |
| 004 |
12606620 |
PLATE, A/TRNS FLEX |
CK1 (L33, M30) |
2005-2006 |
01 |
| 005 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS)
|
1999-2007 |
02 |
|
| 006 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| CK1 (M30, M32) |
2005-2006 |
06 |
|
| 007 |
24205899 |
PLUG, T/CV HSG ACC HOLE (28MM W/3 TANGS) (SMALL CVR) (ACDelco #24205899) |
CK1, 2, 3 (M30, M32, M74) |
2001-2005 |
01 |
| 008 |
24205900 |
COVER, T/CV HSG ACC HOLE (62MM W/3 TANGS) (LARGE CVR) (ACDelco #24205900)
| CK1 (M30) |
2001-2007 |
01 |
|
| 009 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (LR4) |
2001-2007 |
06 |
|
| 009 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (L59, M30) |
2002-2005 |
06 |
|
| 009 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (LM7) |
2004-2007 |
06 |
|
| 009 |
11569956 |
БОЛТ, FLYWHL (M11X1.5X23.5 W/SEALER)
| CK1 (L33) |
2005-2007 |
06 |
|
| 010 |
12561303 |
COVER, TRANS (ACDelco #12561303) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, M30, M32) |
2005-2005 |
01 |
