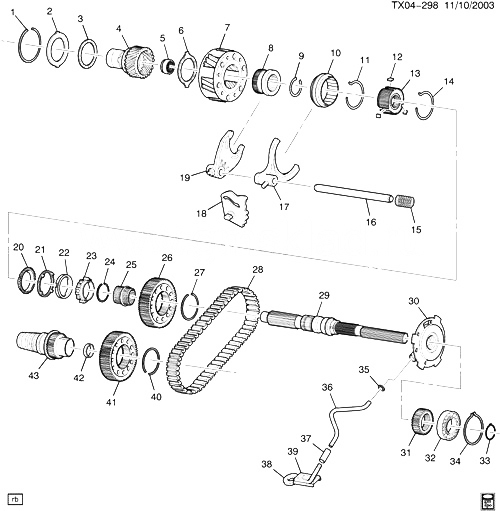

(TX04-298) - 2005 K1,2,3 РАЗДАТОЧНАЯ КОРОБКА (NP2) ЧАСТЬ 2 ВНУТРЕННИЕ КОМПОНЕНТЫ (NEW PROCESS 261)(1ST DES - TWO PIECE СЦЕПЛЕНИЕ GEAR CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15547397 RING, TRFER CASE HIGH/LOW PLNT CARR RET (3 13/16 O.D. X 41/64 THK) K1, 2, 3 (NP2) 2003-2005 01
002 15664905 RING, TRFER CASE HIGH/LOW PLNT P/GR SHF RET (LOCK PLATE) (4.538) K1, 2, 3 (NP2) 2003-2005 01
003 12470959 WASHER, TRFER CASE INPUT SHF THR BRG (FRT) K1 (M30, NP2) 2003-2005 01
003 12470959 WASHER, TRFER CASE INPUT SHF THR BRG (FRT) K1 (MG5, NP2) 2003-2005 01
004 12384969 GEAR, TRFER CASE INPUT K1 (MG5, NP2) 2003-2005 01
004 12384983 GEAR, TRFER CASE INPUT K1 (M30, NP2) 2003-2005 01
005 88996465 BEARING, TRFER CASE INPUT GR (NEEDLE) K1, 2, 3 (NP2) 2003-2005 01
006 15547390 WASHER, TRFER CASE HIGH/LOW PLNT CARR THR (REAR) K1, 2, 3 (NP2) 2003-2005 02
007 12384949 CARRIER, TRFER CASE HIGH/LOW PLNT K1 (M30, NP2) 2003-2005 01
007 12384949 CARRIER, TRFER CASE HIGH/LOW PLNT K1 (MG5, NP2) 2003-2005 01
008 12473218 СЦЕПЛЕНИЕ, TRFER CASE HIGH/LOW (4.555) K1 (M30, MG5, NP2) 2003-2005 01
009 88962316 RING, TRFER CASE TWO/FOUR WHL DRV SYN RET K1, 2, 3 (NP2) 2004-2005 01
010 SLEEVE, TRFER CASE TWO/FOUR WHL DRV SYN (PART OF 13) 2005-2005
011 14071702 ПРУЖИНА, TRFER CASE TWO/FOUR WHL DRV SYN INS (PART OF 13) K1, 2, 3 (NP2) 2003-2005 02
012 SPACER, TRFER CASE FRT OUTPUT SHF DRV SPKT BRG RLR (PART OF 13) 2005-2005
013 88962337 SYNCHRONIZER, TRFER CASE TWO/FOUR WHL DRV (INCLS 10-12, 14) K1, 2, 3 (NP2) 2003-2005 01
014 14071702 ПРУЖИНА, TRFER CASE TWO/FOUR WHL DRV SYN INS (PART OF 13) K1, 2, 3 (NP2) 2003-2005 02
015 15547410 ПРУЖИНА, TRFER CASE SHFT FORK K1, 2, 3 (NP2) 2003-2005 01
016 12547661 SHAFT, TRFER CASE SHFT FORK K1, 2, 3 (NP1, NP2, NP8) 2003-2005 01
017 12473219 FORK, TRFER CASE TWO/FOUR WHL DRV SHFT (COMPL) K1, 2, 3 (NP2) 2003-2005 01
018 12473215 LEVER, TRFER CASE SHFT DTNT K1, 2, 3 (NP2) 2003-2005 01
019 12544310 FORK, TRFER CASE HIGH/LOW SHFT K1, 2, 3 (NP2) 2003-2005 01
020 12472963 RING, TRFER CASE TWO/FOUR WHL DRV SYN BLOCKING (OUTER) K1, 2, 3 (NP2) 2003-2005 01
021 89059644 RING, TRFER CASE TWO/FOUR WHL DRV SYN BLOCKING (MIDDLE) K1, 2, 3 (NP2) 2003-2005 01
022 12472961 BEARING, TRFER CASE FRT OUTPUT SHF DRV SPKT (INNER CONE) K1, 2, 3 (NP2) 2003-2005 01
023 88962335 GEAR, TRFER CASE TWO/FOUR WHL DRV SYN (W/HUB) (INCLS 25) K1, 2, 3 (NP2) 2003-2005 01
024 12547477 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.5) (OUTER) K1, 2, 3 (NP2) 2003-2005 02
025 12473221 HUB, TRFER CASE FOUR WHL DRV CLU (PART OF 23) K1, 2, 3 (NP2) 2003-2005 01
026 12474614 SPROCKET, TRFER CASE FRT OUTPUT SHF DRV K1 (MG5, M30, NP2) 2003-2005 01
027 12547477 RING, TRFER CASE TWO/FOUR WHL DRV SPKT RET (2.5) (OUTER) K1, 2, 3 (NP2) 2003-2005 02
028 12474602 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (M30, NP2) 2004-2005 01
028 12474602 CHAIN, TRFER CASE TWO/FOUR WHL DRV K1 (MG5, NP2) 2004-2005 01
029 88962321 SHAFT, TRFER CASE RR OUTPUT K1 (M30, NP2) 2005-2005 01
029 88962321 SHAFT, TRFER CASE RR OUTPUT K1 (MG5, NP2) 2005-2005 01
030 12478084 PUMP, TRFER CASE OIL (INCLS BOLT, BUSHING, GEARS HOUSING) K1, 2, 3 (NP2) 2003-2005 01
031 12472967 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1 (MG5, NP2) 2003-2005 01
031 12472967 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1, 2, 3 (MT1, NP2) 2003-2005 01
031 12478089 WHEEL, TRFER CASE RR OUTPUT SHF SPD RELUCTOR K1 (M30, NP2) 2003-2005 01
032 12472968 BEARING, TRFER CASE RR OUTPUT SHF RR K1 (M30, MG5, NP2) 2003-2005 01
033 12472966 RING, VEH SPD SEN RELUCTOR WHL RET (36 X 2.4) K1, 2, 3 (MG5, MW3, NP2, NP1) 2003-2005 01
033 12472966 RING, VEH SPD SEN RELUCTOR WHL RET (36 X 2.4) K1, 2, 3 (MT1, M30, NP2, NP1) 2003-2005 01
034 12547637 RING, TRFER CASE RR OUTPUT SHF RR BRG OTR RET K1, 2, 3 (NP2) 2003-2005 01
035 12478088 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1 (M30, NP2) 2003-2005 01
035 15547430 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1 (MG5, NP2) 2003-2005 01
035 15547430 SEAL, TRFER CASE O/PMP SUC PIPE (O-RING) K1, 2, 3 (MT1, MW3, NP2) 2003-2005 01
036 12478087 PIPE, TRFER CASE O/PMP SUC K1 (M30, NP2) 2003-2005 01
036 88962338 PIPE, TRFER CASE O/PMP SUC (W/SCREEN) K1 (MG5, NP2) 2003-2005 01
037 HOSE, TRFER CASE O/PMP SUC (СМ. ГРУППУ 04.000 РАЗДАТОЧНАЯ КОРОБКА/АДАПТЕР FOR DETAILED ILLUSTRATED VIEW) 2005-2005
038 12471607 MAGNET, TRFER CASE CHIP COLLECTOR (4.105) (ACDelco #12471607) K1, 2, 3 (NP2) 2003-2005 01
039 12478085 SCREEN, TRFER CASE O/PMP K1 (M30, NP2) 2003-2005 01
039 12478085 SCREEN, TRFER CASE O/PMP K1 (MG5, NP2) 2005-2005 01
040 12547477 RING, TRFER CASE TWO/FOUR WHL DRV DRVN SPKT RET (2.5) (OUTER) K1, 2, 3 (NP2) 2003-2005 01
041 12474614 SPROCKET, TRFER CASE TWO/FOUR WHL DRV DRVN K1 (MG5, M30, NP2) 2003-2005 01
042 12473236 PLUG, TRFER CASE FRT OUTPUT SHF HOLE (PART OF 43) (4.510) K1, 2, 3 (NP2) 2003-2005 01
043 12473222 SHAFT, TRFER CASE FRT OUTPUT (INCLS 42) K1, 2, 3 (NP2) 2003-2005 01
