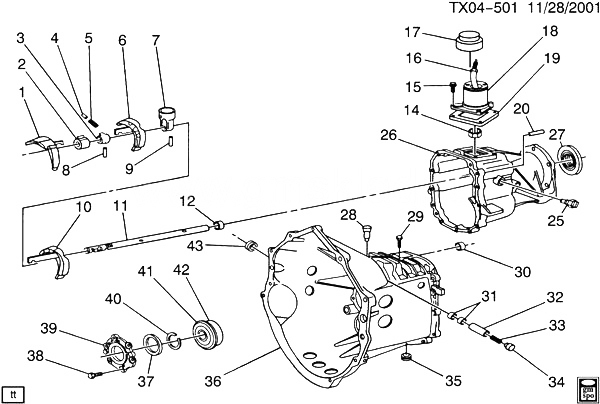

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
88958970 |
FORK, 3RD 4TH SHFT |
K1 (MG5) |
2001-2007 |
01 |
| 002 |
12382872 |
BUSHING, SHFT SHF BLK |
K1 (MG5) |
2001-2007 |
01 |
| 003 |
|
LEVER, SHFT SHF |
|
2001-2007 |
|
| 004 |
12545959 |
PLUNGER, 1ST REV SHFT DTNT |
K1 (MG5) |
2001-2007 |
01 |
| 005 |
14082096 |
ПРУЖИНА, SHFT SHF DTNT (O.D.-.18 INCHES-FREE LENGTH-.248 INCHES, APPROX) (4.384) |
CK1 (MG5) |
2001-2007 |
01 |
| 006 |
88958968 |
FORK, 1ST 2ND SHFT (WHEN USING 88958968 TO REPLACE 12382842, MUST USE T/W 88958971 5TH REV FORK) |
K1 (MG5) |
2001-2007 |
01 |
| 008 |
12477934 |
PIN, SHFT SHF (22MM) |
K1 (MG5) |
2001-2007 |
01 |
| 009 |
08672316 |
PIN, SHFT SHF (32MM) (4.311) (ACDelco #8672316) |
K1 (MG5) |
2001-2007 |
01 |
| 010 |
88958971 |
FORK, 5TH REV SHFT (MUST BE USED T/W 88958968 1ST 2ND SHIFT FORK) |
K1 (MG5) |
2001-2007 |
01 |
| 011 |
12382867 |
SHAFT, SHFT |
K1 (MG5) |
2001-2007 |
01 |
| 012 |
14080583 |
BUSHING, SHFT SHF (15MM ID) |
K1 (MG5) |
2001-2007 |
01 |
| 014 |
12382869 |
INSULATOR, M/TRNS CONT LVR (PLASTIC ISOLATOR ON LWR BALL OF SHIFT TOWER) |
CK1 (MG5) |
2001-2007 |
01 |
| 015 |
12542901 |
БОЛТ, HEX HD W/WASHER, M6X1X20, 9.8 (SHFT CONT HSG) |
|
2001-2007 |
04 |
| 016 |
|
ГАЙКА, SHFT LVR (PART OF 18) |
|
2001-2007 |
|
| 017 |
|
BOOT, TRANS SHFT LVR (PART OF 18) |
|
2001-2007 |
|
| 018 |
12382863 |
LEVER, SHFT (INCLS 16, 17, 19) |
K1 (MG5) |
2001-2007 |
01 |
| 019 |
|
SEAL, TRANS SHFT LVR (PART OF 18) |
|
2001-2007 |
|
| 020 |
|
PIN, TRANS RR CASE LOC (10X46) (PROCURE LOCALLY) |
|
2001-2007 |
|
| 025 |
19152823 |
SWITCH, PARK/NEU POSN B/U LP (4.054) (ACDelco #D2209D) |
K1 (MG5) |
2001-2007 |
01 |
| 025 |
19152823 |
SWITCH, PARK/NEU POSN B/U LP (ACDelco #D2209D) |
K1 (MG5) |
2001-2007 |
01 |
| 026 |
12473979 |
CASE, TRANS RR (INCLS 30) |
K1 (MG5) |
2001-2007 |
01 |
| 027 |
23049636 |
SEAL, MAIN SHF (4.133) (ACDelco #23049636)
| K1 (MG5) |
2001-2007 |
01 |
|
| 028 |
08672242 |
VENT, TRANS |
K1 (MG5) |
2001-2007 |
01 |
| 029 |
12540348 |
PIN, SHFT SHF DTNT |
K1 (MG5) |
2001-2007 |
01 |
| 030 |
14080583 |
BUSHING, SHFT SHF (PART OF 26, 36) (15MM ID) |
K1 (MG5) |
2001-2007 |
01 |
| 031 |
23049803 |
BUSHING, SHFT SHF DTNT (PART OF 36) (ACDelco #23049803) |
K1 (MG5) |
2001-2007 |
01 |
| 032 |
|
PLUNGER, SHFT SHF DTNT |
|
2001-2007 |
|
| 033 |
12382887 |
ПРУЖИНА, SHFT SHF DTNT |
CK1 (MG5) |
2001-2007 |
01 |
| 034 |
23049887 |
PLUG, SHFT SHF DTNT (ACDelco #23049887) |
K1 (MG5) |
2001-2007 |
01 |
| 035 |
23049841 |
PLUG, TRANS OIL DRN (M24X1.5) (MAGNETIZED) (4.195) (ACDelco #23049841) |
K1 (MG5) |
2001-2007 |
01 |
| 036 |
12473975 |
HOUSING, CLU (INCLS 30, 31) (ACDelco #12473975) |
K1 (MG5) |
2001-2007 |
01 |
| 037 |
23049814 |
SEAL, INPUT SHF (ACDelco #23049814)
| K1 (MG5) |
2001-2007 |
01 |
|
| 038 |
11513824 |
БОЛТ, HEX, M6X1X25, 9.8, PZOR (INPUT SHAFT BEARING RETAINER) |
|
2001-2007 |
06 |
| 039 |
12549362 |
RETAINER, INPUT SHF BRG |
K1 (MG5) |
2001-2007 |
01 |
| 040 |
23049936 |
RING, INPUT SHF RET (35 X 2.1) (4.416) |
K1 (MG5) |
2001-2007 |
01 |
| 041 |
|
RING, INPUT SHAFT BEARING SNAP (PART OF 42) |
|
2001-2007 |
|
| 042 |
88996721 |
BEARING, INPUT SHF (INCLS 41) (ACDelco #88996721) |
K1 (MG5) |
2001-2007 |
01 |
| 043 |
12549378 |
PLUG, TRANS OIL FIL (M24X1.5) (ACDelco #12549378) |
K1 (LR4, LU3, MG5) |
2003-2006 |
01 |
