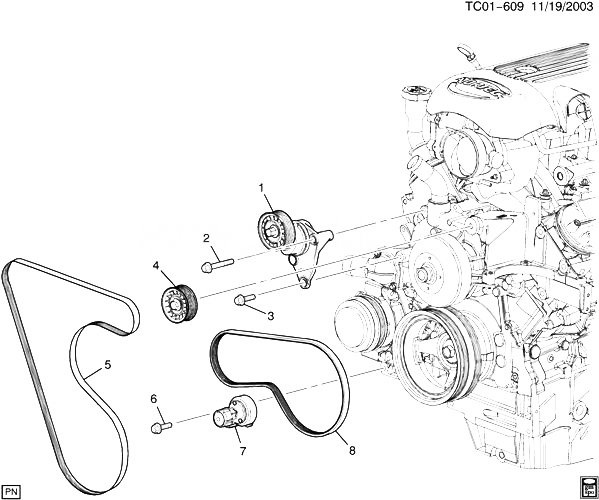

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12609719 |
TENSIONER, DRV BELT (2 BOLT DESIGN REPLACES 3 BOLT DESIGN)
| CK1, 2, 3 (LM7, LR4, LQ4, L59, LQ9, L33) |
2005-2007 |
01 |
|
| 002 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (DRV BELT TENSR)
|
2004-2007 |
02 |
|
| 003 |
11518625 |
БОЛТ, PAN, M10X1.5X35, 33.5THD, 20 O.D., 10.9, 6138M (DRV BELT TENSR) |
|
2004-2007 |
01 |
| 004 |
12580774 |
PULLEY, BELT IDLER (6 GROOVE PULLEY CODE 6612, 0774) |
CK1, 3 (LM7, HP2) |
2004-2007 |
01 |
| 005 |
12576448 |
РЕМЕНЬ, FAN (1495MM, 6 RIB) (CODE WAY) |
CK1 (LM7, HP2) |
2004-2007 |
01 |
| 006 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (A/C CMPR BELT TENSR) (T/W 12345493)
|
2004-2007 |
02 |
|
| 007 |
12580196 |
TENSIONER, A/C CMPR BELT
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, CJ2, CJ3) |
2005-2007 |
01 |
|
| 008 |
12576447 |
РЕМЕНЬ, A/C CMPR (960MM, 4 RIB) (CODE WAX, UWZ, URM)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, CJ2, CJ3) |
2005-2007 |
01 |
|
