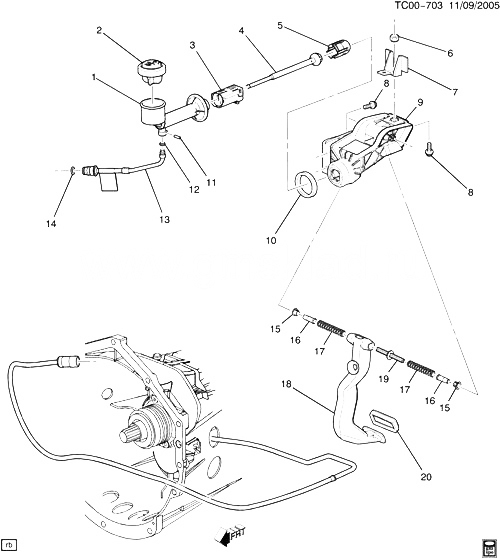

(TC00-703) - 2003-2005 CK ПЕДАЛЬ СЦЕПЛЕНИЯ CYLINDERS (MG5,MW3,M96,TZ0) CHEVROLET TAHOE LS (4WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 24235619 CYLINDER, CLU MAS (INCLS 2-5, 11-14) (W/ HOSE) (202.39MM PUSHROD) CK1, 2 (LU3, MG5, TZ0) 2003-2005 01
001 24235619 CYLINDER, CLU MAS (INCLS 2-5, 11-14) (W/ HOSE) (202.39MM PUSHROD) CK1, 2, 3 (LQ4, LR4, L31, MG5, MW3, M96, TZ0) 2003-2005 01
002 89048534 CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) CK1, 2, 3 (M96, TZ0) (EXPORT) 2003-2007 01
002 89048534 CAP, CLU M/CYL RSVR (PART OF 1) (W/ISO) CK1, 2, 3 (MG5, MW3) 2003-2007 01
003 15027967 SWITCH, CLU PED POSN (PART OF 1) (AT MASTER CYL) (ACDelco #D2205C) CK1, 2, 3 (M96, TZ0) (EXPORT) 2003-2007 01
003 15027967 SWITCH, CLU PED POSN (PART OF 1) (AT MASTER CYL) (ACDelco #D2205C) CK1, 2, 3 (MG5, MW3) 2003-2007 01
004 PUSHROD, CLU MASTER CYL (PART OF 1) 2003-2005
005 12473050 BUSHING, CLU M/CYL PUSH ROD (PART OF 1) CK1, 2, 3 (M96, TZ0) (EXPORT) 2003-2007 01
005 12473050 BUSHING, CLU M/CYL PUSH ROD (PART OF 1) CK1, 2, 3 (MG5, MW3) 2003-2007 01
006 ГАЙКА, BRK PED BRKT (PART OF 7) 2003-2005
007 15713209 BRACKET, CLU PED (INCLS 6) (L=45 W=80 H=80) (DASH PANEL) CK1 (LU3) 2003-2007 01
007 15713209 BRACKET, CLU PED (INCLS 6) (L=45 W=80 H=80) (DASH PANEL) CK1, 2, 3 (LQ4, LR4, LLY, L18, L31) 2005-2006 01
008 11517182 БОЛТ, CLU PED BRKT (M10X1.5X30, 15 THD) (8.900) CK1, 2, 3 (MG5, ML6, MW3, M96, TZ0) 2003-2007 02
009 BRACKET, CLU PED (PART OF 18) 2003-2005
010 SEAL, CLU PED BRKT (PART OF 18) 2003-2005
011 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1 (MG5) 2003-2005 02
011 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1, 2, 3 (M96) (EXPORT) 2003-2007 02
011 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1, 2, 3 (MW3) 2003-2007 02
011 12386924 PIN, CLU ACTR CYL (PART OF 1) CK1, 2, 3 (TZ0) (EXPORT) 2003-2007 02
012 12549117 SEAL, CLU ACTR CYL (O RING) (6 CYL ENG) (PART OF 1) CK1 (MG5) 2003-2005 02
012 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1, 2, 3 (M96, TZ0) (EXPORT) 2003-2007 02
012 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1, 2, 3 (MW3) 2003-2007 02
013 HOSE, CLU M/CYL RSVR (PART OF 1) 2003-2007
013 HOSE, CLU M/CYL RSVR (PART OF 1) 2003-2005
014 12549117 SEAL, CLU ACTR CYL (O RING) (6 CYL ENG) (PART OF 1) CK1 (MG5) 2003-2005 02
014 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1, 2, 3 (M96, TZ0) (EXPORT) 2003-2007 02
014 12549117 SEAL, CLU ACTR CYL (O RING) (PART OF 1) CK1, 2, 3 (MW3) 2003-2007 02
015 15023000 BUSHING, CLU PED PIV (TO PEDAL) (PART OF 18) (25.4X26.9MM) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2003-2007 02
017 15773468 ПРУЖИНА, CLU PED RTN (PART OF 18) (LG=56.3MM) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2003-2007 02
018 15027983 PEDAL, CLU (W/BRKT) (INCLS 9, 10, 15-17, 19, 20) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2003-2007 01
019 15734410 SPACER, CLU PED PIV (PART OF 18) CK1 (MG5, TZ0) 2003-2005 01
019 15734410 SPACER, CLU PED PIV (PART OF 18) CK1, 2, 3 (MW3, M96) 2003-2007 01
020 15706041 COVER, CLU PED (PART OF 18) CK1, 2, 3 (MG5, MW3, M96, TZ0) 2003-2007 01
