| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

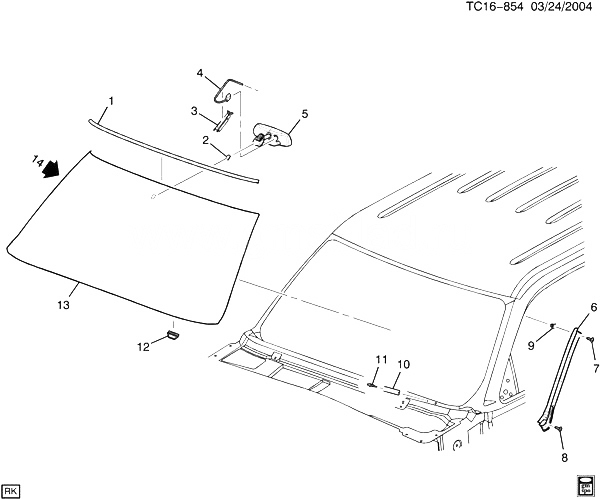

| 001 |
88980304 |
WEATHERSTRIP, W/S (PART OF 13)
| CK1, 2, 3 |
2003-2007 |
01 |
|
| 002 |
15954649 |
BRACKET, I/S RR VIEW MIR (PART OF 13)
| CK1, 2, 3 |
2003-2007 |
01 |
|
| 003 |
15195146 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN I/S MIRROR HDLR) |
CK1, 2, 3 (DF5) |
2003-2007 |
01 |
| 003 |
15195146 |
COVER, I/S RR VIEW MIR WRG HARN (BETWEEN I/S MIRROR HLDR) |
CK1, 2, 3 (AL0) (EXC DF5) |
2003-2007 |
01 |
| 004 |
|
HARNESS, RF ACSRY WRG (СМ. ГРУППУ 16.000 ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 005 |
10078250 |
MIRROR, I/S RR VIEW (STANDARD MIRROR) (10.185) |
CK1, 2, 3 (EXC AL0, DF5, 9D9) |
2003-2007 |
01 |
| 005 |
15125007 |
MIRROR, I/S RR VIEW (FRT PASS/CHILD PRESENCE DETECTOR) |
CK1, 2 (AL0) (EXC DF5, D31, VCG, Z49) |
2005-2006 |
01 |
| 005 |
15125007 |
MIRROR, I/S RR VIEW (FRT PASS/CHILD PRESENCE DETECTOR) |
CK1, 2 (AL0, D31) (EXC VCG, Z49) |
2005-2006 |
01 |
| 005 |
15125008 |
MIRROR, I/S RR VIEW (FRT PASS/CHILD PRESENCE DETECTOR)
| CK1, 2 (AL0, VCG) |
2006-2006 |
01 |
|
| 005 |
15176974 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR) |
CK1, 2 (AL0, DF5) (EXC UE1, VCG, Z49) |
2004-2006 |
01 |
| 005 |
15176975 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR)
| CK1, 2 (AL0, DF5, VCG, Z49) (EXC UE1) (EXPORT) |
2004-2006 |
01 |
|
| 005 |
15237545 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, TEMP, FRT PRESENCE DETECTOR, GPS) |
CK1, 2 (AL0, DF5, UE1, Z49) |
2003-2007 |
01 |
| 005 |
15237546 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, TEMP, FRT PASS/CHILD PRESENCE DETECTOR, GPS) |
CK1, 2 (AL0, DF5, UE1) (EXC Z49) |
2003-2007 |
01 |
| 005 |
15269044 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, O/S TEMP DISPLAY)
| CK1, 2, 3 (DF5) (EXC AL0, UE1) |
2003-2007 |
01 |
|
| 005 |
15269045 |
MIRROR, I/S RR VIEW (LT SEN, COMPASS, O/S TEMP DISPLAY, ONSTAR, GPS) |
CK1, 2, 3 (DF5, UE1) (EXC AL0) |
2003-2007 |
01 |
| 006 |
15291274 |
MOLDING, W/S RVL
| CK1, 2, 3 |
2003-2007 |
01 |
|
| 006 |
15291275 |
MOLDING, W/S RVL
| CK1, 2, 3 |
2003-2007 |
01 |
|
| 007 |
11508765 |
SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (W/S R/MLDG) |
|
2003-2007 |
10 |
| 008 |
00332364 |
RETAINER - PUSH IN, FITS HOLE SIZE 0.245 - 0.260, GRIP LENGTH 0.52, 0.7 OD, MATERIAL NYLON 6/6 PER GMP.PA66.015 (W/S R/MLDG) |
|
2003-2007 |
02 |
| 010 |
|
PLATE, VIN (CONTACT APPROPRIATE AUTHORITY GOVERNING MOTOR VEHICLES FOR REPLACEMENT PROCESS) |
|
2003-2007 |
|
| 011 |
|
RIVET, VIN PLT |
|
2003-2007 |
|
| 012 |
15061964 |
SUPPORT, W/S
| CK1, 2, 3 |
2003-2007 |
02 |
|
| 013 |
15114506 |
WINDSHIELD, (INCLS 1, 2) (INCLS UPR MLDG) (I/S RR MIRROR BRACKET)
| CK1, 2, 3 (EXC A04) |
2004-2007 |
01 |
|
| 013 |
15199034 |
WINDSHIELD, (INCLS 1, 2) (INCLS UPR MLDG) (I/S RR MIRROR BRACKET)
| CK1, 2, 3 (A04) (EXPORT) |
2003-2007 |
01 |
|
| 014 |
12346392 |
ADHESIVE KIT, GLASS URETHANE (W/S) (FOR INSTALLATION OF ALL STATIONARY WINDOW GLASS) |
|
2003-2007 |
AR |
