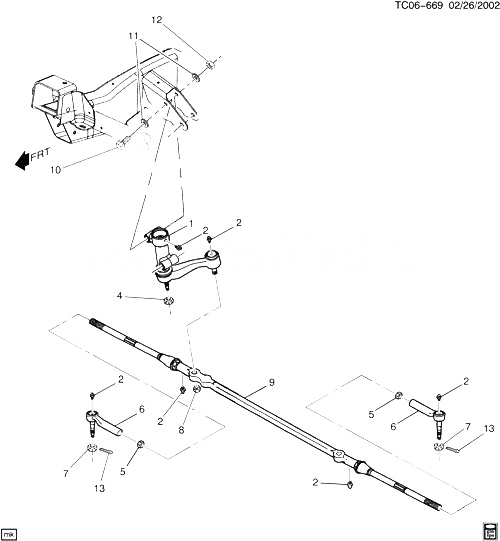

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
ARM, STRG LNKG IDLER (*KIT1) |
|
2002-2006 |
|
| 002 |
15891514 |
FITTING, LUB 1/4-28 (STRG LNKG RLY ROD LUB) (*KIT1, KIT2, KIT3)
|
2000-2006 |
01 |
|
| 004 |
|
ГАЙКА, STRG LNKG I/ARM (*KIT1) |
|
2002-2006 |
|
| 005 |
11516073 |
ГАЙКА, M12X1.75 (STRG LNKG TIE ROD) (*KIT2, KIT3)
|
2000-2006 |
01 |
|
| 006 |
|
ROD KIT, STRG LNKG OTR TIE (*KIT2) |
|
2002-2006 |
|
| 007 |
11516073 |
ГАЙКА, M12X1.75 (STRG LNKG OTR TIE ROD) (*KIT2)
|
2000-2006 |
02 |
|
| 008 |
11516074 |
ГАЙКА, HEX M14X2X13 (STRG LNKG PIT ARM) (*KIT3)
|
2000-2006 |
01 |
|
| 009 |
|
ROD KIT, STRG LNKG RLY (*KIT3) |
|
2002-2006 |
|
| 010 |
25643735 |
БОЛТ, STRG LNKG I/ARM (M14X2X90) (6.172) |
C1, 2, 3 |
2001-2006 |
02 |
| 011 |
15712787 |
WASHER, STRG LNKG I/ARM (14.5 MM ID) |
C1, 2, 3 |
2001-2006 |
04 |
| 012 |
11516074 |
ГАЙКА, HEX M14X2X13 (STRG LNKG I/ARM)
|
2000-2006 |
02 |
|
| 013 |
00103376 |
PIN, COTTER, 3/32X1 1/2, PL |
|
2000-2006 |
02 |
| K01 |
19178433 |
ARM KIT, STRG LNKG IDLER (INCLS 1, 2, 4) (T/W 19168944) (4 GROOVE SPLINE)
| C1 (03-06-36-53) |
2002-2006 |
01 |
|
| K02 |
19149617 |
ROD KIT, STRG LNKG OTR TIE (INCLS 2, 5-7) (INCLS ROD NUTS)
| C1 (06-36) |
2002-2006 |
02 |
|
| K03 |
19149619 |
ROD KIT, STRG LNKG RLY (INCLS 2, 8, 9) (W/INNR TIE RODS)
| C1 (06-36) |
2004-2006 |
01 |
|
