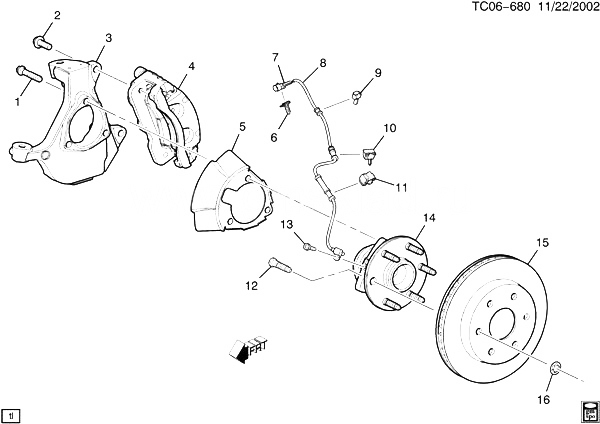

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15719028 |
БОЛТ, S/KNU (M14X1.5X70) (6.104)
| CK1 |
1999-2007 |
06 |
|
| 002 |
15016308 |
БОЛТ, FRT BRK CLPR (HEX W/CONN WA, M14X2X45, 37 THD, 28 OD, 10.9) |
C1 (06-36) (JH2) |
2005-2006 |
02 |
| 003 |
18048228 |
KNUCKLE, STRG (MCHG) (CODE MSL, XCY, WYC)
| CK1 (03-06-36-53) |
1999-2007 |
01 |
|
| 003 |
18048229 |
KNUCKLE, STRG (MCHG) (CODE MSL, WYZ, XAA, XAB, XAC, XAD, XCW, XCX, XCZ) |
CK1 (03-06-36-53) |
1999-2007 |
01 |
| 004 |
|
CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 004 |
|
CALIPER, FRT BRK (СМ. ГРУППУ 04.000 СУППОРТ ТОРМОЗА/ПЕРЕДНИЙ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2007 |
|
| 005 |
15716364 |
SHIELD, FRT BRK
| C1 (06-36) (ARL, MSL, JH2) (EXC PPV) |
2005-2006 |
02 |
|
| 005 |
15716364 |
SHIELD, FRT BRK
| C1 (06-36) (JAN, JH2) (EXC PPV) |
2006-2006 |
02 |
|
| 005 |
15716364 |
SHIELD, FRT BRK
| C1 (06-36) (JH2, PPV) |
2006-2006 |
02 |
|
| 006 |
12186353 |
RETAINER, WHL SPD SEN WRG HARN CONN (PART OF 8, 14) (BLACK) (7.00/6.25 DIA, SLIDING) |
CK1, 2, 3 |
2001-2007 |
01 |
| 007 |
|
CONNECTOR, SEN-WHL SPD (PART OF 8, 14) |
|
1999-2007 |
|
| 007 |
12102747 |
CONNECTOR, SEN-WHL SPD (PART OF 8, 14) (BLACK) (ACCEPTS 1.5MM TERMS) (2-WAY FEMALE) (M/P150) (W/LEADS) (REAR) (1.203) (ACDelco #PT374)
| CK1, 2, 3 |
2001-2006 |
01 |
|
| 007 |
12167120 |
CONNECTOR, SEN-WHL SPD (PART OF 8, 14) (BLACK) (2-WAY MALE) (W/LEADS) (OVAL) (4.720) (ACDelco #PT786) |
CK1, 2, 3 |
2001-2006 |
01 |
| 008 |
15233108 |
ДАТЧИК, FRT WHL SPD (INCLS 6, 7, 9-11) (PART OF 14) (ACDelco #15233108) |
C1 (06-36) (JH2) |
2006-2006 |
02 |
| 009 |
15715954 |
CLIP, WHL SPD SEN WIRE (LOCATED NEAR CONNECTOR END) (ATTACHED TO РАМА) (PART OF 8, 14) (TREE FITS 6.5 HOLE) (HOLDS (1) 10.5MM GROMMET ROUTING (1) 6.35 SPD SEN CBL) |
CK1, 2, 3 |
2001-2007 |
02 |
| 010 |
15715952 |
CLIP, WHL SPD SEN WIRE (MIDDLE CLIP) (ATTACH TO THE CONTROL ARM) (PART OF 8, 14) (HOLDS (1) 10MM GROMMET, TREE FITS M6 THD HOLE) |
CK1, 2, 3 |
2001-2007 |
02 |
| 011 |
15715956 |
CLIP, WHL SPD SEN WIRE (NO SCREW ATTACHMENT) (ATTACHED TO KNUCKLE) (PART OF 8, 14) (10.00MM) (1 HOLE CLIP) |
CK1, 2, 3 |
2001-2006 |
02 |
| 012 |
11588810 |
STUD, FRT WHL (PART OF 14) (M14X1.5X65)
| CK1 (JH2) |
2006-2007 |
12 |
|
| 013 |
15960191 |
БОЛТ, WHL SPD SEN (PART OF 14) (M6X1X12) |
CK1, 2, 3 |
2001-2007 |
02 |
| 014 |
15233112 |
HUB, FRT WHL (W/WHL SPD SEN) (INCLS 6-13) (ACDelco #FW324) |
C1 (06-36) (JH2) |
2006-2006 |
02 |
| 015 |
18060214 |
ROTOR, FRT BRK (8.625 R/GR, DELPHI/SAG) (ACDelco #177-863)
| C1 (06-36) (JH2) |
2005-2006 |
02 |
|
| 016 |
|
RETAINER, FRT BRK ROT (PUSH ON) |
|
2005-2006 |
|
| 016 |
|
RETAINER, FRT BRK ROT (PUSH ON) |
|
2005-2007 |
|
