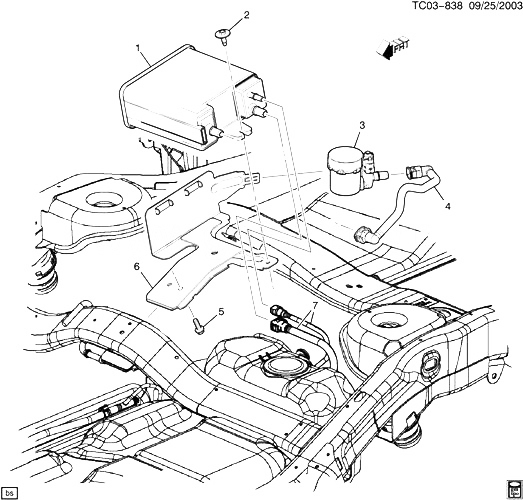

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15109431 |
CANISTER, EVAP EMIS (ACDelco #215-464)
| CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
|
| 002 |
10200334 |
БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243)
| C157 (06) (LQ9) |
2005-2006 |
01 |
|
| 002 |
10200334 |
БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243)
| CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
|
| 002 |
10200334 |
БОЛТ, EVAP EMIS CNSTR BRKT (M8X1.25X30) (W/FLAT WASHER) (12.243)
| CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
|
| 003 |
25932571 |
SOLENOID, EVAP EMIS CNSTR (ACDelco #214-2149)
| CK157 (06) (LM7, LQ4, LQ9, LR4, L59) |
2005-2006 |
01 |
|
| 004 |
15104151 |
HOSE, EVAP EMIS CNSTR VENT |
C157 (06) (LM7, LQ4, LR4, L59) |
2006-2006 |
01 |
| 004 |
15220025 |
HOSE, EVAP EMIS CNSTR VENT (ACDelco #215-568) |
C157 (06) (LQ9) |
2005-2006 |
01 |
| 005 |
15052033 |
BOLT-HEX W/FL WA M8X1.25X26, 15 THD, 21-OD, W/ADH 6175, 9.8, GM6280M (ZN-C (EVAP EMIS CNSTR) |
|
2004-2006 |
02 |
| 006 |
15113366 |
BRACKET, EVAP EMIS CNSTR |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 006 |
15113366 |
BRACKET, EVAP EMIS CNSTR |
C157 (06) (LQ9) |
2005-2006 |
01 |
| 006 |
15113366 |
BRACKET, EVAP EMIS CNSTR |
CK157 (06) (L59) |
2005-2006 |
01 |
| 007 |
88983154 |
HOSE, EVAP EMIS CNSTR PURGE (3.145) |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
