| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |

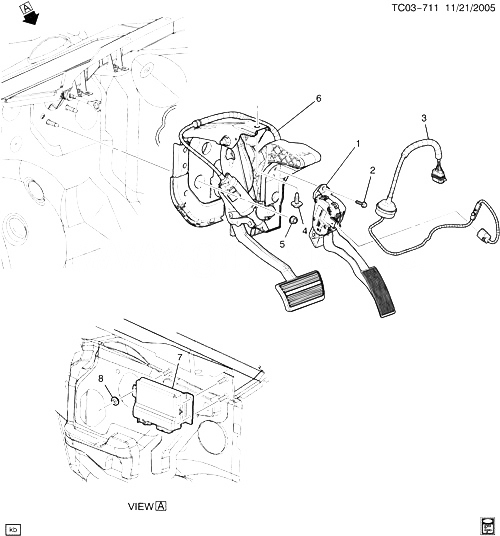

| 001 |
15107594 |
PEDAL, ACCEL (INCLUDES ACCEL PEDAL MODULE) |
CK1, 2, 3 (LQ4, LQ9, L59, LM7, L33, LR4, L18) |
2006-2006 |
01 |
| 002 |
11516424 |
БОЛТ, HFH, M6X1X25, 14.2 O.D., HDR PT, 9.8, ZE (ACCEL PED LVR)
|
2006-2006 |
02 |
|
| 003 |
15233969 |
HARNESS, THROT POSN SW WRG |
CK1, 2 (06-36) (AE7, AN3, A95, JF4, JH2, JH6, JH7) |
2006-2006 |
01 |
| 004 |
11517182 |
БОЛТ, BRK PED BRKT (M10X1.5X30, 15 THD) (8.900) |
CK1, 2, 3 |
2006-2006 |
01 |
| 005 |
11517996 |
ГАЙКА, P/B BOOS (M10X1.5, 11.2 THK) (8.917)
| CK1, 2, 3 |
2006-2006 |
04 |
|
| 006 |
|
PEDAL, BRK ACCEL (W/BRKT) (СМ. ГРУППУ 04.000 ПЕДАЛЬ ТОРМОЗА FOR DETAILED ILLUSTRATED VIEW) |
|
2006-2006 |
|
| 007 |
12590008 |
MODULE, ELEK THROT ACTR CONT (ACDelco #12590008) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L18, L33, L59, KUP) |
2006-2006 |
01 |
| 008 |
11609411 |
ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (THROT ACTR CONT MDL)
|
2006-2006 |
03 |
|
