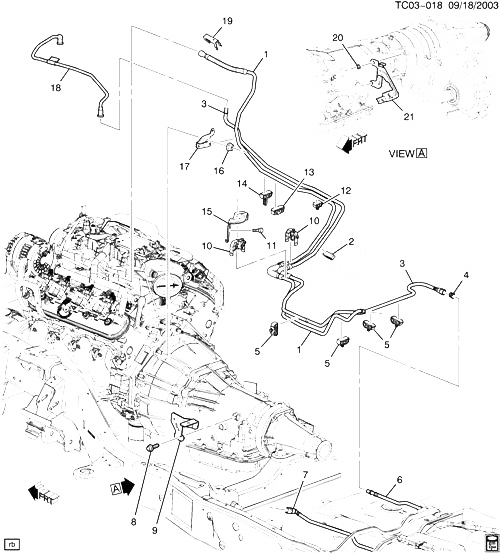

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15103783 |
HOSE, FUEL FEED (INCLS 5) (FRONT) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4, L59) |
2006-2006 |
01 |
| 002 |
15168649 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
02 |
| 003 |
15172669 |
HOSE, EVAP EMIS (PART OF FUEL FILL NECK ASM) |
CK157 (06) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 003 |
15254559 |
HOSE, EVAP EMIS |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 004 |
|
RETAINER, FUEL FEED PIPE CONN (PART OF 3) |
|
2004-2006 |
|
| 005 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 1, 3) (2 TUBE) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
03 |
| 006 |
|
HOSE, EVAP EMIS CNSTR PURGE (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА/ЗАДНЯЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2006 |
|
| 007 |
|
HOSE, FUEL FEED (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА/ЗАДНЯЯ FOR DETAILED ILLUSTRATED VIEW) (PART OF FUEL FILL NECK ASM) (3.120) |
|
2004-2006 |
|
| 008 |
11516703 |
БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) |
|
2004-2006 |
01 |
| 009 |
|
BRACKET, FUEL FEED RTN FRT HOSE (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА/ПЕРЕДНЯЯ FOR DETAILED ILLUSTRATED VIEW) (3.163) |
|
2004-2006 |
|
| 010 |
15085404 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
02 |
| 011 |
11517895 |
BOLT-HEX, M8X1.25X29.4, 24 OD, 6202M, 7114M, TAP, TR-PT (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) |
|
2004-2006 |
01 |
| 012 |
15085405 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 013 |
15168649 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 014 |
15168648 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 015 |
15001960 |
BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 016 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596)
|
2004-2006 |
01 |
|
| 017 |
15085402 |
BRACKET, FUEL FEED EVAP EMIS RTN HOSE |
CK1 (06-36) (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 018 |
12575527 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4) |
2004-2006 |
01 |
| 019 |
22695614 |
RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE)
| CK1, 2, 3 |
2005-2006 |
01 |
|
| 020 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383)
|
2004-2006 |
02 |
|
