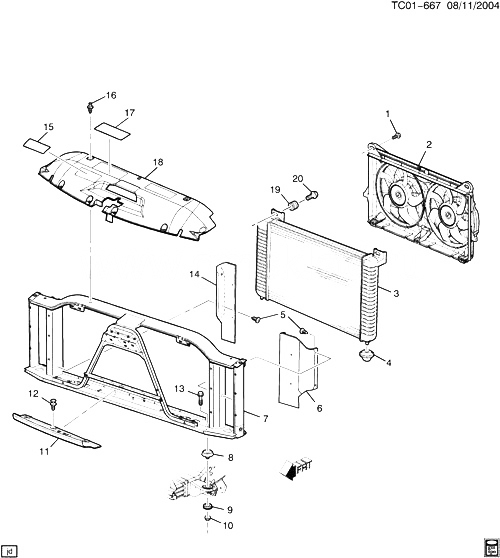

(TC01-667) - 2005-2006 CK1(06) КРЕПЛЕНИЕ РАДИАТОРА И СОПРЯЖЕННЫЕ ДЕТАЛИ (EXC (C69)) CHEVROLET TAHOE LS (2WD) 2006

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 11516931 БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (ENG COOL FAN) 2005-2006 02
002 FAN, ENG COOL (W/ SHRD) (СМ. ГРУППУ 01.000 ВЕНТИЛЯТОР ОХЛАЖДЕНИЯ ДВИГАТЕЛЯ FOR DETAILED ILLUSTRATED VIEW) 2005-2006
003 RADIATOR, (INCLS 4, 19) (СМ. ГРУППУ 01.000 РАДИАТОР В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 2005-2006
004 MOUNT, RAD LWR (PART OF 3) (L59) 2005-2006
004 89019121 MOUNT, RAD LWR (PART OF 3) CK1, 2, 3 (LM7, LQ4) 2005-2006 02
004 89019121 MOUNT, RAD LWR (PART OF 3) CK1 (L33, L59, LU3) 2006-2006 02
005 15958694 RETAINER, RAD AIR BFL (PUSH IN) (PART OF 6, 14) (BLACK) (7.6DIA X 22.9 MM) (X-MAS TREE) (FOR HOLE 6.30-6.55 DIA) (16.850) CK1, 2, 3 2005-2006 AR
006 15773377 BAFFLE, RAD AIR (INCLS 5) (CODE 3377) CK1 (03-06-43-53) (LM7, LR4, LU3, L33, L59) 2005-2006 01
007 SUPPORT, RAD (СМ. ГРУППУ 01.000 RADIATOR SUPPORT FOR DETAILED ILLUSTRATED VIEW) 2005-2006
008 15837581 CUSHION, RAD SUPT UPR CK1, 2 (06) 2005-2006 02
009 15201791 CUSHION, RAD SUPT LWR (71MM OD) (9.023) CK1, 2, 3 2005-2006 02
010 03537772 ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (RAD SUPT) (8.917) 2005-2006 02
011 15188203 BAFFLE, RAD SUPT (CENTER) CK1 (06) (EXC C69) 2005-2006 01
012 15149708 RETAINER, RAD SUPT BFL (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505) CK1 (06) (EXC C69) 2006-2006 03
013 11516932 БОЛТ, HEX HD, W/CON WA, M6X1X25, 9.8, 6138M (RAD SUPT) 2005-2006 02
014 15185917 BAFFLE, RAD AIR (INCLS 5) (CODE 5917) CK1 (03-06-43-53) (LM7, LR4, LU3, L33, L59) 2005-2006 01
015 12575049 LABEL, ACSRY BELT ROUTING (PART OF 18) CK1, 2, 3 2005-2006 01
016 11561878 RETAINER, RAD AIR UPR BFL (PUSH IN) (FITS 8.0-8.25 DIA HOLE IN 3-7MM THK PNL) (8.940) CK1, 2, 3 2005-2006 07
017 10388864 LABEL, A/C REFRIG WRNG (PART OF 18) CK1, 2, 3 2006-2006 01
018 15809933 BAFFLE, RAD AIR UPR (INCLUDES 15, 17) CK157 (06) (X88, Z88) 2006-2006 01
019 INSULATOR, RAD UPR (PART OF 3) 2005-2006
020 11516931 БОЛТ, FLAT WA METRIC HEX HD MACHINE, M8X1.25X50 (RAD UPR MT) 2005-2006 02
