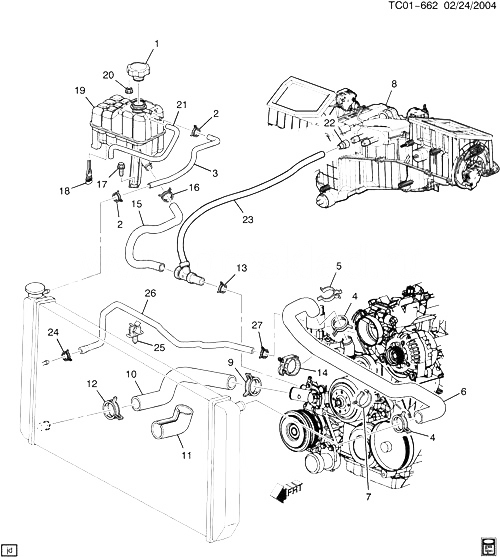

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
15075118 |
CAP, RAD SURGE TK (15 PSI DUAL O-RING) (ENGLISH/FRENCH LABEL) (ACDelco #RC98)
| CK1, 2, 3 |
2001-2007 |
01 |
|
| 002 |
15012559 |
CLAMP, SPR (18.4MM TO 21.6MM) NOMINAL SIZE 20MM, STAMPED 20 (PART OF 3) (1.240) |
|
2000-2007 |
02 |
| 003 |
15170551 |
HOSE, RAD SURGE TK INL (INCLS 2) (421X159X117) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L31, L33, L59) (EXC HP2) |
2006-2007 |
01 |
| 004 |
11518559 |
CLAMP, SPRINGBAND, 42MM NOMINAL DIA, 20 WIDTH, 6298M, 6164M (PART OF 6)
|
2001-2007 |
02 |
|
| 005 |
15045503 |
CLIP, RAD INL HOSE (PART OF 6) (CLIP TO HOLD 37-44 DIA HOSE AND 12.8-15 DIA VENT HOSE) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 006 |
15179498 |
HOSE, RAD INL (INCLS 4, 5, 7, 14) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
| 007 |
15159494 |
CLIP, RAD INL HOSE (CENTER OF HOSE, ATTACHES TO RAD SHROUD) (PART OF 6) (PUSH-IN CLIP 37-44 DIA 12.8 DIA) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 008 |
|
MODULE, HTR A/C EVPR BLO (СМ. ГРУППУ 09.000 A/C HTR MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2001-2007 |
|
| 008 |
|
MODULE, HTR A/C EVPR BLO (СМ. ГРУППУ 09.000 A/C HTR MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2006 |
|
| 009 |
11562099 |
CLAMP, RAD OTLT HOSE ENG (SPRINGBAND NOMINAL DIA 49MM, 20 WIDTH) (DIA 49MM, 20 WIDTH) (8.948)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, LU3) |
2005-2007 |
02 |
|
| 010 |
19130015 |
HOSE, RAD OTLT
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) (EXC HP2) |
2005-2007 |
01 |
|
| 011 |
|
SLEEVE, RAD SURGE TK OTLT HOSE |
|
2001-2007 |
|
| 011 |
|
SLEEVE, RAD SURGE TK OTLT HOSE |
|
2002-2006 |
|
| 012 |
11562099 |
CLAMP, RAD OTLT HOSE RAD (SPRINGBAND NOMINAL DIA 49MM, 20 WIDTH) (DIA 49MM, 20 WIDTH) (8.948)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, LU3) (EXC HP2) |
2005-2007 |
02 |
|
| 013 |
11517136 |
CLAMP, HOSE SPR, 27 NOM, 25.2 MIN-28.9 MAX, 15MM WIDE, BLACK (PART OF 23) |
|
2000-2007 |
01 |
| 014 |
15041307 |
CLIP, RAD SURGE TK ENG HOSE (PART OF 6) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 015 |
15059580 |
HOSE, RAD SURGE TK OTLT (PART OF 23) (443X469X690) (W/O CLAMPS STRAP) |
CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L59, C36) |
2002-2006 |
01 |
| 016 |
11562101 |
CLAMP, RAD SURGE TK OTLT HOSE (CLAMP, SPRING BAND, 35MM NOM) (PART OF 23) (8.948) |
CK1, 2, 3 |
2005-2007 |
AR |
| 017 |
11516589 |
SCREW, HEX HD W/CON SPR WA, M6X1X30, 29 THD, 17 O.D., 9.8, 7114M, ZE (RAD SURGE TK) |
|
2000-2007 |
01 |
| 018 |
|
SWITCH, LOW ENG COOL LVL (PART OF 19) |
|
2001-2007 |
|
| 018 |
|
SWITCH, LOW ENG COOL LVL (PART OF 19) |
|
2002-2006 |
|
| 019 |
15808715 |
TANK, RAD SURGE (INCLS 18, 21) (ACDelco #15808715)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L31, L33, L59) (EXC HP2) |
2006-2006 |
01 |
|
| 020 |
11508388 |
ГАЙКА, HEX W/CON WA, M6X1, 23.75 O.D., 5.55THK, 9, POR (RAD SURGE TK) (8.915) |
|
2000-2007 |
01 |
| 021 |
|
HOSE, RAD SURGE TK OVFL (PART OF 19) |
|
2001-2007 |
|
| 021 |
|
HOSE, RAD SURGE TK OVFL (PART OF 19) |
|
2002-2006 |
|
| 022 |
15059584 |
CONNECTOR, HTR OTLT HOSE (PART OF 23) (76.02MM LONG) (QUICK CONNECT ASM) |
CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L59, C36) |
2002-2006 |
01 |
| 023 |
15792822 |
HOSE, RAD SURGE TK OTLT (INCLS 13, 15, 16, 22) |
CK1, 2 (06) (LM7, LQ4, LQ9, LR4, L59, C36) |
2005-2006 |
01 |
| 024 |
15004599 |
CLAMP, RAD SURGE TK ENG HOSE (BLACK) (15MM OD 17.2MM)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
|
| 025 |
15041309 |
CLIP, RAD VENT INL HOSE |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
| 026 |
15020224 |
HOSE, RAD VENT INL |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2006-2006 |
01 |
| 027 |
15734742 |
CLAMP, RAD SURGE TK ENG HOSE (13-16MM DIA RANGE) |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2007 |
01 |
