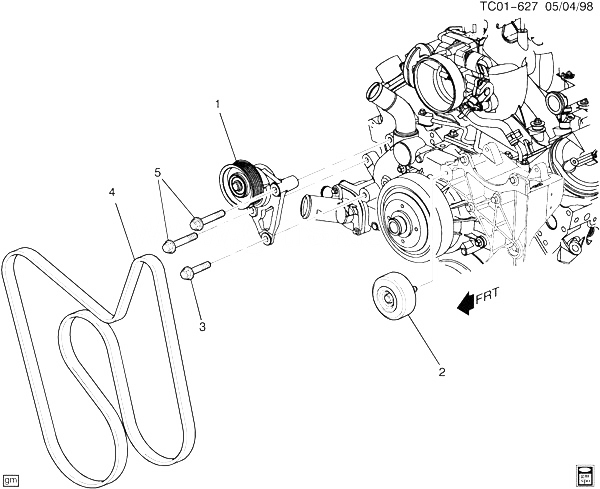

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
12609719 |
TENSIONER, DRV BELT (2 BOLT DESIGN REPLACES 3 BOLT DESIGN)
| CK1, 2, 3 (LM7, LR4, LQ4, L59, LQ9, L33) |
2005-2007 |
01 |
|
| 002 |
12580771 |
PULLEY, BELT IDLER (SMOOTH CODE 5609, 0771)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18, L59) |
2003-2006 |
01 |
|
| 002 |
12580771 |
PULLEY, BELT IDLER (SMOOTH CODE 5609, 0771)
| CK1, 2, 3 (L33) |
2005-2007 |
01 |
|
| 002 |
98072072 |
PULLEY, BELT IDLER (SMOOTH) (BOLT NOT INCLUDED) (CODE 2072, 3352, 7284) (USE T/W 15847291 GENERATOR FOR BELT LINE-UP)
| CK1, 2, 3 (LQ4, K68) |
2006-2007 |
02 |
|
| 003 |
11515767 |
БОЛТ, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (DRV BELT TENSR) (T/W 12345493)
|
1999-2007 |
01 |
|
| 004 |
12576450 |
РЕМЕНЬ, FAN W/PMP GEN P/S PUMP (2345 MM) (CODE UYA, WBA)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L59, K68) |
2006-2006 |
01 |
|
| 004 |
12576451 |
РЕМЕНЬ, FAN W/PMP GEN P/S PUMP (2365+/-10) (CODE UYB, USX, WBB)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59, KG3, KW1, 8C6) (EXC HP2) |
2005-2007 |
01 |
|
| 005 |
11516109 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X65, 25 THD, 22.3 O.D., HDR PT, 10.9, 7114M (DRV BELT TENSR)
|
1999-2007 |
02 |
|
