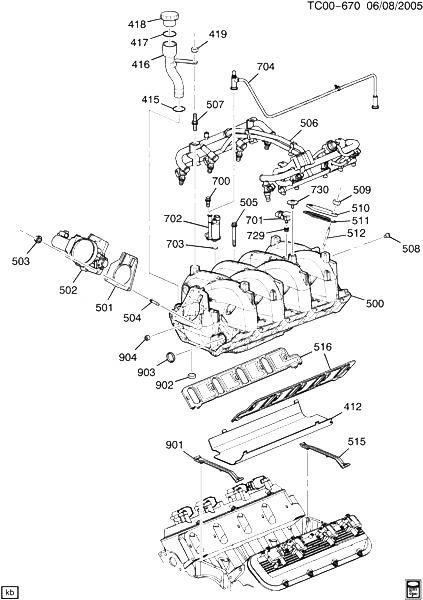

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 415 |
|
SEAL, OIL FIL LWR TUBE (O RING) (PART OF 416) |
|
2005-2007 |
|
| 419 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (OIL FIL TUBE)
|
2004-2007 |
01 |
|
| 503 |
03530297 |
ГАЙКА, HFH, M6X1, 5.85THK, 14.2 O.D., 10, ZOR (THROT BODY)
|
2004-2007 |
03 |
|
| 505 |
11609264 |
БОЛТ, HFH, W/6124M ADH, M6X1.0X72, 20 THD, 17.0 O.D., 10.9, GMW3359 (INT MANIF) |
|
2004-2007 |
10 |
| 506 |
|
RAIL, F/INJN FUEL (СМ. ГРУППУ 03.000 РАМА ТОПЛИВНОГО ИНЖЕКТОРА FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 508 |
14081701 |
PLUG, W/SEALER, 1/4-18 NPTF, SQ SOCKET, PL (PART OF 500) |
|
2004-2007 |
01 |
| 509 |
11517031 |
ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (EGR VLV OPG CVR) |
|
2004-2007 |
02 |
| 512 |
11519235 |
STUD, STRAIGHT, M8X1.25X20, M8X1.25X36.25, 63 TL, 10.9, 7114M, SIDE BHEX P (PART OF 500) |
|
2004-2007 |
02 |
| 515 |
|
ПРОКЛАДКА, INT MANIF (*KIT1) |
|
2004-2007 |
|
| 516 |
|
ПРОКЛАДКА, INT MANIF (MANIFOLD TO CYL CASE-FRONT) (*KIT1) |
|
2004-2007 |
|
| 700 |
11519941 |
БОЛТ, HFH W/SHLDR, M6X1X22, 13.8 THD, 15 OD, 9.8, 6280M, MACH, DOG-PT (EVAP EMIS CNSTE PURGE SOL VLV) |
|
2004-2007 |
01 |
| 701 |
09359409 |
ДАТЧИК, MAP (PUSH-IN) (INCLS SEAL) (INCLS 729) (ACDelco #9359409)
| CK1, 2, 3 (LU3, LQ9, LR4, L18, LM7, LQ4, L59) |
2004-2007 |
01 |
|
| 702 |
12581282 |
VALVE, EVAP EMIS CNSTR PURGE SOL (OPTIONAL WITH 12573220) (INCLS 703) (ACDelco #214-1105)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, LU3, L18) |
2005-2007 |
01 |
|
| 703 |
|
SEAL, EVAP EMIS CNSTR PURGE SOL VLV (O RING) (PART OF 702) |
|
2004-2007 |
|
| 729 |
16194007 |
SEAL, MAP SEN (PART OF 701) |
CK1, 2, 3 |
2004-2007 |
01 |
| 730 |
10077321 |
БОЛТ, HEX W/WA (M6X1X20) (MAP SEN) |
|
2004-2007 |
01 |
| 901 |
|
ПРОКЛАДКА, INT MANIF (*KIT1) |
|
2004-2007 |
|
