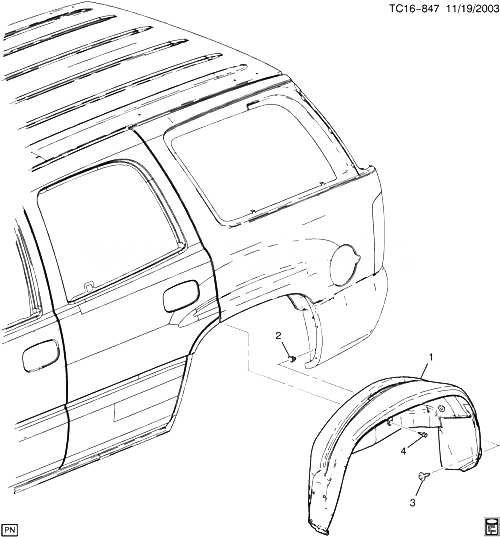

(TC16-847) - 2003-2006 CK157(06) ЗАДНЯЯ КОЛЕСНАЯ АРКА CHEVROLET TAHOE LS (2WD) 2005
| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
|---|---|---|---|---|---|
| 001 | 15170987 | LINER, RR W/H PNL| CK157, 2 (06) |
2003-2006 |
01 |
|
| 001 | 15170988 | LINER, RR W/H PNL| CK157, 2 (06) |
2003-2006 |
01 |
|
| 002 | ГАЙКА, RR W/H PNL | 2001-2006 | |||
| 003 | 11570498 | БОЛТ, HWH W/FL WA, M4.2X1.41X20, 11.4 THD, 17 OD, ISO 2702 STL , GMW4205, T (RR W/H PNL)|
| 2001-2006 |
12 |
|
| 004 | 15149708 | RETAINER, RR W/H PNL LNR (17.0 X 5.1 X 16.3 MM) (PUSH-IN INCLS PUSH BUTTON LOCK) (17.505)| CK157, 2 (06) |
2003-2006 |
04 |
|
