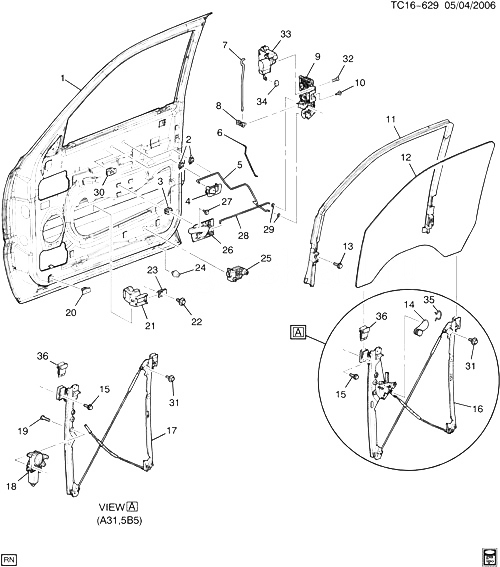

(TC16-629) - 2002-2006 CK(06-36) АРМАТУРА ПЕРЕДНЕЙ ДВЕРИ ЧАСТЬ 2 CHEVROLET TAHOE LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 ДВЕРЬ, ПЕРЕДНЯЯ SI (СМ. ГРУППУ 16.000 SHEET METAL/BODY FOR DETAILED ILLUSTRATED VIEW) 2000-2007
002 15053341 GUIDE, FRT S/D LKG ROD CK1, 2, 3 2001-2007 06
003 11517769 NUT-PANEL, M6X1, 12.7X19.9 SLOT, .7-1 PANEL, 1050, 7111M, 2/RETENT TABS (FRT S/D I/S HDL) 2000-2007 02
004 15172121 LEVER, FRT S/D LK CK1, 2, 3 2001-2007 02
005 15048591 ROD, FRT S/D LKG CK1, 2, 3 2001-2007 01
005 15905657 ROD, FRT S/D LKG CK1, 2, 3 2001-2007 01
006 15705626 ROD, FRT S/D LK CYL CK1, 2, 3 2001-2007 01
006 15705627 ROD, FRT S/D LK CYL CK1, 2, 3 2001-2007 01
007 15705527 ROD, FRT S/D O/S HDL CK1, 2, 3 2001-2007 01
007 15705528 ROD, FRT S/D O/S HDL CK1, 2, 3 2001-2007 01
008 16640343 CLIP, RR S/D O/S HDL (YELLOW) (10.527) CK1, 2, 3 2001-2007 02
009 15110643 LOCK, FRT S/D (INCLS 8, 29, 32, 33, 34) (INCLS ACTUATOR AJAR SW) CK1, 2 (06) (AU0, AU5, AU8, YE9) 2004-2006 01
009 15110645 LOCK, FRT S/D (INCLS 8, 29, 32, 33, 34) (INCLS ACTUATOR AJAR SW) CK1, 2 (06) (AU0, AU5, AU8, YE9) 2005-2006 01
010 11517230 БОЛТ, TORX, W/WA, W/ADH, M6X1X20, 16.2 O.D., DOG PT, 10.9, GM6138M (FRT S/D LK) 2000-2007 02
011 15219153 WEATHERSTRIP, FRT S/D WDO (OUTER) (USE T/W 15138387 SEALING STRIP) CK1, 2, 3 2001-2007 01
011 15219154 WEATHERSTRIP, FRT S/D WDO (OUTER) (USE T/W 15138387 SEALING STRIP) CK1, 2, 3 2001-2007 01
012 15891714 WINDOW, FRT S/D CK1, 2, 3 2001-2007 01
012 15891715 WINDOW, FRT S/D CK1, 2, 3 2001-2007 01
013 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (FRT S/D WDO W/STR) 2000-2007 04
014 25829667 HANDLE, FRT S/D WDO REG (INCLS 35) (W/CLIP) CK1, 2, 3 2001-2005 02
015 БОЛТ, FRT S/D WDO REG GDE (PART OF 16, 17) 2002-2006
015 БОЛТ, FRT S/D WDO REG GDE (PART OF 16, 17) 2004-2007
016 15871124 REGULATOR, FRT S/D WDO (INCLS 15, 36) (16.260) (ACDelco #15871124) CK1, 2, 3 (EXC A31, 5B5) 2001-2007 01
016 15871124 REGULATOR, FRT S/D WDO (INCLS 15, 36) (ACDelco #15871124) CK1, 2, 3 (EXC A31, 5B5) 2001-2007 01
016 15871125 REGULATOR, FRT S/D WDO (INCLS 15, 36) (16.260) (ACDelco #15871125) CK1, 2, 3 (EXC A31, 5B5) 2001-2007 01
016 15871125 REGULATOR, FRT S/D WDO (INCLS 15, 36) (ACDelco #15871125) CK1, 2, 3 (EXC A31, 5B5) 2001-2007 01
017 19120846 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/O MOTOR) (16.260) (ACDelco #19120846) CK1, 2, 3 (5B5) 2001-2005 01
017 19120846 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/O MOTOR) (16.260) (ACDelco #19120846) CK1, 2, 3 (A31) (EXC 5B5) 2001-2005 01
017 19120846 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/O MOTOR) (ACDelco #19120846) CK1, 2, 3 (5B5) 2001-2005 01
017 19120846 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/O MOTOR) (ACDelco #19120846) CK1, 2, 3 (A31) (EXC 5B5) 2001-2005 01
017 25885879 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/MOTOR) (16.260) (ACDelco #25885879) CK1, 2, 3 (5B5) 2001-2005 01
017 25885879 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/MOTOR) (16.260) (ACDelco #25885879) CK1, 2, 3 (A31) (EXC 5B5) 2001-2005 01
017 25885879 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/MOTOR) (ACDelco #25885879) CK1, 2, 3 (5B5) 2001-2005 01
017 25885879 REGULATOR, FRT S/D WDO (INCLS 15, 36) (W/MOTOR) (ACDelco #25885879) CK1, 2, 3 (A31) (EXC 5B5) 2001-2005 01
018 15844874 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (5B5) 2001-2007 01
018 15844874 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844874) CK1, 2, 3 (A31) 2001-2007 01
018 15844875 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844875) CK1, 2, 3 (5B5) 2001-2007 01
018 15844875 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (USE ON REGULATORS W/BOTTOM NUT FASTENER) (ACDelco #15844875) CK1, 2, 3 (A31) 2001-2007 01
018 19179942 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (W/FASTENERS) (ACDelco #19179942) CK1, 2, 3 (5B5) 2001-2007 01
018 19179942 MOTOR KIT, FRT S/D WDO REG (INCLS 19) (W/FASTENERS) (ACDelco #19179942) CK1, 2, 3 (A31) (EXC 5B5) 2001-2007 01
018 19179943 MOTOR KIT, FRT S/D WDO REG (USE ON REGULATORS W/BOTTOM BOLT FASTENER) (INCLS 19) (ACDelco #19179943) CK1, 2, 3 (5B5) 2001-2007 01
018 19179943 MOTOR KIT, FRT S/D WDO REG (USE ON REGULATORS W/BOTTOM BOLT FASTENER) (INCLS 19) (ACDelco #19179943) CK1, 2, 3 (A31) (EXC 5B5) 2001-2007 01
019 БОЛТ, FRT S/D WDO REG (PART OF 18) 2002-2006
019 БОЛТ, FRT S/D WDO REG (PART OF 18) 2004-2007
020 11519497 ГАЙКА, PUSH IN, SPECIAL, 4.2X1.4 SINGLE THREAD, SAE 1050 STL, GM7111M (FRT S/D TR PNL) 2000-2007 06
021 15175367 STABILIZER, FRT S/D WDO (INCLS 23) (16.190) CK1, 2, 3 2001-2007 02
022 11518297 BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D WDO W/STR) 2000-2007 02
023 11518121 ГАЙКА, U, M6X1, MULTI THD, .5-4.0 THK PNL (PART OF 21) 2000-2007 02
024 15039965 BUMPER, FRT S/D CK1, 2, 3 2001-2007 02
025 10370151 MODULE, INFL RST SI IMP SEN (MOUNTED ON FRT. DR INNER SHEET METAL) CK1, 2 (06) (AJ7) 2005-2005 02
026 15760297 HANDLE, FRT S/D I/S (W/CLIP) CK1, 2, 3 (EXC Y91) 2001-2007 01
026 15760298 HANDLE, FRT S/D I/S (W/CLIP) CK1, 2, 3 (EXC Y91) 2001-2007 01
027 11518297 BOLT-HEX, M6X1X18, 10 THD, 17 OD, 9.8, 7114M, MACH, DOG-PT, 6175M ADH ON THD (FRT S/D WDO REG) 2000-2007 12
028 15705524 ROD, FRT S/D I/S HDL CK1, 2, 3 2001-2007 01
028 15705525 ROD, FRT S/D I/S HDL CK1, 2, 3 2001-2007 01
029 16633853 CLIP, FRT S/D I/S HDL ROD (PART OF 9, 33) (YELLOW) (PLASTIC) (10.527) CK1, 2, 3 2001-2007 02
030 11518162 NUT-PANEL, M4.2X1.41, 15.9X8.4, .7-1.0 PNL, 1050, 7111M, 8.65 SQ HOLE (FRT S/D TR PNL) 2000-2007 02
031 11589177 BOLT ASM, HEX HD, M6X1.0X18.0, GMW25 9.8 STL, GMW3359 (FRT S/D WDO REG) 2000-2007 12
032 БОЛТ, FRT S/D LK (PART OF 9) 2002-2006
032 БОЛТ, FRT S/D LK (PART OF 9) 2004-2007
033 ACTUATOR KIT, FRT S/D LK (PART OF 9) 2005-2007
034 16626791 BUMPER, FRT S/D LK LKG LVR (PART OF 9) (10.485) CK1, 2, 3 2001-2005 AR
035 04168122 CLIP, FRT S/D WDO REG HDL (PART OF 14) (U-SHAPED) (10.512) CK1, 2, 3 2001-2007 02
036 BUSHING, FRT S/D WDO SASH (PART OF 16, 17) 2002-2006
036 BUSHING, FRT S/D WDO SASH (PART OF 16, 17) 2004-2007
