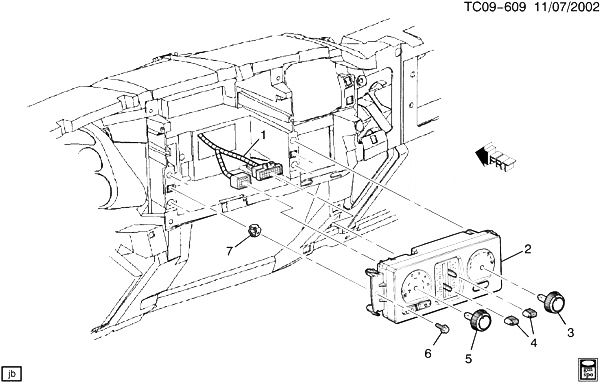

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
HARNESS, I/P WRG (СМ. ГРУППУ 02.000 ЖГУТ ПРОВОДОВ/ПАНЕЛЬ ПРИБОРОВ FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2007 |
|
| 002 |
15832313 |
CONTROL, HTR A/C (INCLS 3-5) (ACDelco #15-73499) |
CK1, 2 (06-36) (CJ3) (EXC C49) |
2005-2006 |
01 |
| 002 |
15832315 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (INCLS 3-5) (ACDelco #15-73502) |
CK1, 2, 3 (CJ3, C49) |
2005-2006 |
01 |
| 002 |
15832315 |
CONTROL, HTR A/C (W/R/WDO DEFG SW) (INCLS 3-5) (9.273) (ACDelco #15-73502) |
CK1, 2, 3 (CJ3, C49) |
2005-2006 |
01 |
| 003 |
|
KNOB, HTR A/C CONT MODE (PART OF 2) |
|
2003-2007 |
|
| 004 |
09369572 |
KNOB, HTR A/C CONT TEMP (PART OF 2) |
CK1, 2, 3 (CJ3) |
2005-2007 |
02 |
| 005 |
|
KNOB, HTR A/C CONT BLO SW (PART OF 2) |
|
2003-2007 |
|
| 006 |
11589012 |
БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (HTR A/C CONT) (9.665)
|
2003-2007 |
02 |
|
| 007 |
17988488 |
ГАЙКА, I/P CARR (SILVER) (4.2 X 1.41) (PUSH-IN FOR 12MM SQ HOLE) (10.252) |
CK1, 2, 3 |
2003-2007 |
AR |
