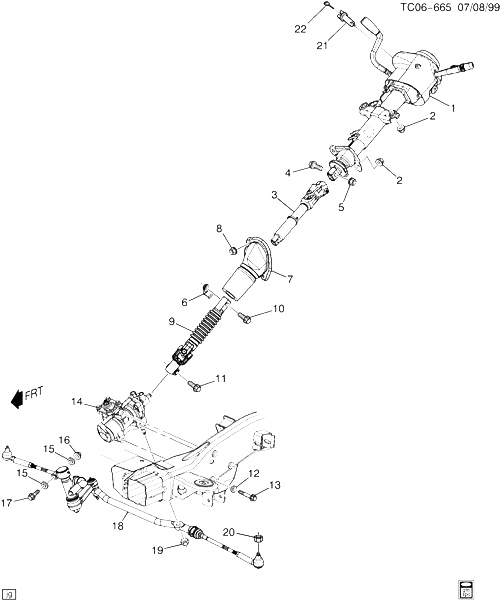

(TC06-665) - 2004-2006 C1(06-36) РУЛЕВАЯ СИСТЕМА И СОПРЯЖЕННЫЕ ДЕТАЛИ CHEVROLET TAHOE LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1 (06-36) (M30, JL4, K34, ZQ1, ZW7, ZX3, Z71, Z83, Z85) (EXC NP7, UK3) 2003-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1 (06-36) (MT1, M30, JL4, K34, UK3, ZQ1, ZW7, ZX3, Z71, Z83) (EXC NP7, Y91) 2003-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1 (06-36) (M30, K34, Z55) (EXC NP7, UK3) 2004-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1 (06-36) (M30, M32, K34, ZQ1, ZW7, Z71) (EXC JL4, NP7, NYS, UK3, Y91) 2005-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1 (M30, K34) 2005-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1, 2, 3 (MN8, MT1, M30, M32, M33, M74) (EXC NP7) 2003-2005 01
001 19133736 COLUMN, STRG (CODEST8P, T8U, T9C, U1M, U1S, U1T, U1U, U1W, U2D, U2F, U2K, U2M, U2R, U2S, U2W, WJY, WJZ, WKF, WKM, WKT, WLK, WLL, XTP, XZT, Y4K, Y4M, Y4P, Y4R, YAA, YAB, YAJ, YAR, YAT, YAY, YBC) (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLU C1, 2, 3 (MN8, MT1, M30, M32, M74) (EXC NP7) 2003-2005 01
001 19133737 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) C1 (M30, NP7) (EXPORT) 2003-2006 01
001 88965527 COLUMN, STRG (СМ. ГРУППУ 06.000 РУЛЕВАЯ КОЛОНКА FOR DETAILED ILLUSTRATED VIEW) C1, 2, 3 (ML6, MG5, MW3, M96, TZ0) 2003-2007 01
002 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (STRG COL) (2.383) 1999-2007 04
003 19153614 SHAFT, UPR INTER STRG (W/SM YOKE) CK1 (03-06-43-53) (EXC Y91) 2001-2006 01
004 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) CK1, 2, 3 2005-2007 01
005 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (S/GR CPLG) (2.383) 1999-2007 01
006 15017238 ГАЙКА, S/GR CPLG (M10X1.5 6H, 21.5 OD) (W/PREVAILING TORQ FLANGE) CK1, 2, 3 2001-2007 01
007 21996234 SEAL, STRG COL CK1, 2, 3 2005-2007 01
008 21011332 ГАЙКА, HEX STAMPED TY DF FLG 14 (STRG COL SEAL) (8.921) 1999-2007 03
009 26078079 SHAFT, S/GR CPLG (INTER LWR) C1, 2 1999-2006 01
010 26030302 БОЛТ, S/GR CPLG (M10X1.5X39) (HFH NYLON LOCK) (6 POINT HEAD) CK1, 2, 3 2001-2007 01
010 26030302 БОЛТ, S/GR CPLG (M10X1.5X39) (HFH NYLON LOCK) (6 POINT HEAD) C1, 2, 3 2001-2007 01
010 26058124 БОЛТ, S/GR CPLG (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) C1, 2, 3 2001-2005 01
010 88965503 БОЛТ, S/GR CPLG (M10X1.5X35) (FOR SERVICE USE 11515759 T/W 12345382) C1, 2, 3 2005-2007 01
011 11515768 БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (S/GR CPLG) 1999-2007 01
012 11610231 WASHER - FLAT, 15X32X4.45, SAE 1050-1080 STL, HRC 40-45, GMW3179 (S/GR) 1999-2007 03
013 11513596 БОЛТ, HEX, RED BDY, M14X2X135, 87.7 GRIP, 47.3 THD, CONE PT, 12.75 BDY OD, 10.9, PS (S/GR) 1999-2007 03
014 GEAR, STRG (СМ. ГРУППУ 06.000 РУЛЕВОЙ МЕХАНИЗМ В СБОРЕ FOR DETAILED ILLUSTRATED VIEW) 1999-2007
015 15712787 WASHER, STRG LNKG I/ARM (14.5 MM ID) CK1, 2, 3 2001-2007 04
016 11516074 ГАЙКА, HEX M14X2X13 (STRG LNKG I/ARM) 1999-2007 04
017 11516459 БОЛТ, HEX, M14X2X100, 34 THD, 10.9, 7112M MACH (STRG LNKG I/ARM) 1999-2007 01
018 LINKAGE, STRG (СМ. ГРУППУ 06.000 РУЛЕВЫЕ СОЕДИНЕНИЯ FOR DETAILED ILLUSTRATED VIEW) 2001-2007
018 LINKAGE, STRG (СМ. ГРУППУ 06.000 РУЛЕВЫЕ СОЕДИНЕНИЯ FOR DETAILED ILLUSTRATED VIEW) 2004-2006
019 11516074 ГАЙКА, HEX M14X2X13 (STRG LNKG PIT ARM) 1999-2007 01
020 26017267 ГАЙКА, HEX (STRG LNKG OTR TIE ROD) (6.526) 1999-2007 02
022 15026223 KEY, IGN LK (CHEVROLET LOGO) C1, 2, 3 (X88) 2003-2007 02
