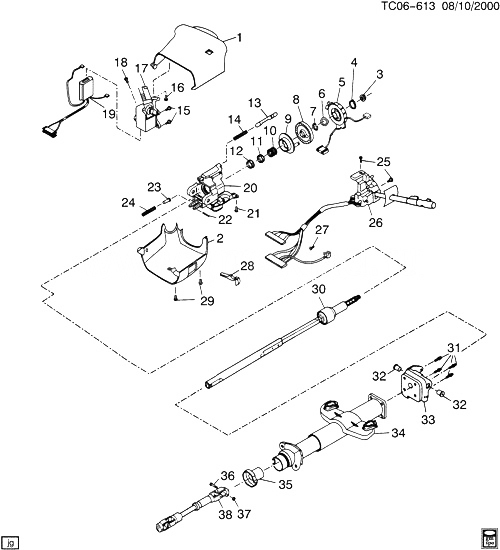

(TC06-613) - 2003-2007 CK РУЛЕВАЯ КОЛОНКА - ПЕРЕКЛЮЧАТЕЛЬ ПЕРЕДАЧ/ПОЛ (MANUAL TRANS) CHEVROLET TAHOE LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 26089140 COVER KIT, STRG COL TR (INCLS 2) (EBONY) (W/AUTO TRANS) (SNAP ON DESIGN) CK1, 2, 3 2003-2007 01
002 COVER, STRG COL TR LWR (PART OF 1) 2003-2007
003 11609659 ГАЙКА, STRG WHL (M14X1.5, 10THK, 27OD) (FLANGED) (8.917) CK1, 2, 3 2005-2007 01
004 00274414 RING, EXT, SNAP, FITS M19 OR.75 SHAFT, STL, PL (STRG WHL INFL RST MDL COIL RET) 2001-2007 01
005 26094620 COIL KIT, INFL RST STRG WHL MDL CK1 (MG5, TZ0) (EXC UK3) 2005-2007 01
005 26101829 COIL KIT, INFL RST STRG WHL MDL (INCLS KEY BUZZER SWITCH HARNESS) CK1 (MG5, K34, UK3) 2005-2005 01
006 26011609 WASHER, STRG WHL INFL RST MDL COIL (14.865) CK1, 2, 3 2001-2007 01
007 05694191 RING, STRG SHF LK PLT RET (6.524) CK1, 2, 3 2001-2007 01
009 26080344 CAM, T/SIG CANC CK1, 2, 3 2003-2007 01
010 26055299 ПРУЖИНА, STRG SHF UPR BRG CK1, 2, 3 2001-2007 01
011 15231641 SEAT, STRG SHF UPR BRG RACE CK1, 2, 3 2001-2007 01
012 26001827 BEARING KIT, STRG SHF UPR (STRG COL INR W/RACE) CK1, 2, 3 2001-2007 01
013 26036327 PIN, STRG WHL LK CK1, 2, 3 (MW3, MG5, ML6) 2001-2007 01
013 26036327 PIN, STRG WHL LK CK1, 2, 3 (MW3, MG5, ML6, M96) 2001-2007 01
014 26034514 ПРУЖИНА, LK BOLT (43MM) CK1, 2, 3 2001-2007 01
015 26014529 БОЛТ, IGN LK CYL CASE (FOR REPAIR) (M5X.8X11.5) (TO LOCK MODULE) (6.522) CK1, 2, 3 2005-2007 02
016 26036495 БОЛТ, STRG COL HSG SUPT (M8 X 1.25-6G (22)THD) CK1, 2, 3 2001-2007 04
017 88965342 CASE, IGN LK CYL (W/IGN LK ACTUATOR PASS LK SENSOR) CK1, 2, 3 2001-2007 01
018 26014529 БОЛТ, IGN LK CYL CASE (M5X.8X11.5) (TO LOCK MODULE) (6.522) CK1, 2, 3 2001-2007 01
019 12450251 SWITCH, IGN START (W/LK CYL CONT SOL) (W/GEAR TEETH) (ACDelco #12450251) CK1, 2, 3 2003-2007 01
019 19240042 SWITCH, IGN START (W/ REMOTE KEYLESS ENTRY) (1ALL MAKES) (THUMBWHEEL TYPE) CK157 (06) (L59, LM7, LR4) 2003-2006 01
020 26087972 HOUSING, STRG COL (INCLS UPR SHF BEARING) (HOUSING W/TILT LOCK PARTS ONLY, W/O STRG SHF) CK1 (MG5) (EXC UK3) 2001-2007 01
020 88965528 HOUSING, STRG COL (COMPL W/STRG SHF) CK1 (MG5, TZ0) (EXPORT) 2003-2005 01
020 88965528 HOUSING, STRG COL (COMPL W/STRG SHF) CK1 (MG5, UK3) 2003-2005 01
021 26034561 GUIDE, STRG COL SPR CK1, 2, 3 2001-2007 01
022 26036317 PIN, STRG COL TILT LK REL LVR PIV (M5X0.8) (T-25 TORX) CK1, 2, 3 2001-2007 01
023 26034561 GUIDE, STRG COL SPR CK1, 2, 3 2001-2007 01
024 26065450 ПРУЖИНА, STRG COL TILT CK1, 2, 3 2002-2007 01
025 26036497 БОЛТ, T/SIG SW (M5X.8X15) (6.760) CK1, 2, 3 2001-2005 02
026 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (2.895) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
026 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
026 12450066 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (W/HAZARD СИГНАЛ) (2.895) (ACDelco #D6298A) CK1, 2, 3 (EXC K34) 2003-2007 01
026 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (2.895) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
026 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
026 12450067 SWITCH, T/SIG HDLP D/SW WSW WSWA (W/LVR) (INCLUDE HAZARD FLASH SWITCH) (2.895) (ACDelco #D6299A) CK1, 2, 3 (K34) 2003-2007 01
027 12052834 RETAINER, (WSW WSWA WRG HARN CONN) 2001-2007 01
028 26069514 LEVER, STRG COL TILT WHL REL (EXTERNAL) CK1, 2, 3 2001-2007 01
029 26036497 БОЛТ, STRG COL LWR TR CVR (M5X.8X15) (6.760) CK1, 2, 3 2001-2007 02
030 26090770 SHAFT, STRG CK1, 2, 3 (EXC NP7) 2003-2007 01
031 26036495 БОЛТ, STRG COL HSG SUPT (M8 X 1.25-6G (22)THD) CK1, 2, 3 2001-2007 04
032 26036521 PIN, STRG COL PIV CK1, 2, 3 2001-2007 02
033 26087187 SUPPORT, STRG COL HSG (THINER TOP BUMBER (MORE UP TRAVEL)) CK1 (MG5, UK3) 2001-2005 01
034 26072361 JACKET, STRG COL CK1, 2, 3 (MG5, ML6, MW3) 2001-2007 01
035 88963617 BEARING, STRG SHF LWR CK1, 2, 3 2004-2007 01
036 26058124 БОЛТ, S/GR CPLG (M10X1.5X36) (HFH W/RETAINER NYLON LOCK) (UPR TO STRG COL) CK1, 2, 3 2001-2007 01
037 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (S/GR CPLG) (2.383) 2001-2007 01
038 19153614 SHAFT, UPR INTER STRG (W/SM YOKE) CK1 (MG5) 2001-2007 01
