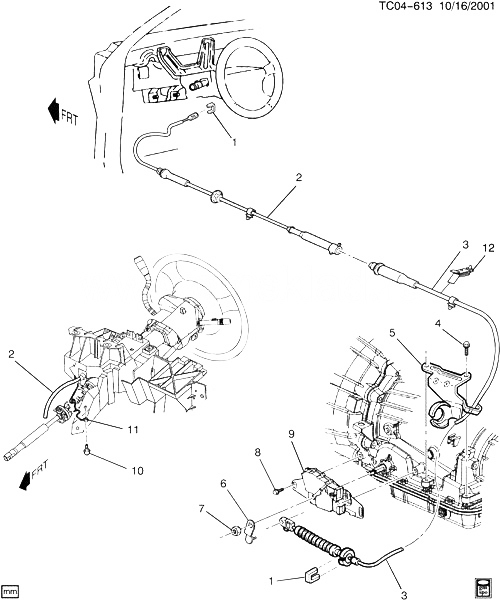

(TC04-613) - 2004-2005 CK УПРАВЛЕНИЕ ПЕРЕКЛЮЧЕНИЕМ/АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ (M30,M32,M33,MT1,MN8) CHEVROLET TAHOE LS (2WD) 2005

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15116345 RETAINER, A/TRNS RANGE SEL LVR CBL CK1, 2, 3 (MN8, MT1, M30, M32, M33, M74) 2004-2005 02
002 CABLE, A/TRNS RANGE SEL LVR (*KIT1) 2003-2007
003 CABLE, A/TRNS RANGE SEL LVR (AT TRNS) (*KIT1) 2004-2005
004 11561015 SCREW-M8X1.25X21.5, 15 THD, 17 OD, 9.8, GMW4700ZNNI BLACK 1999-2007 02
005 15013290 BRACKET, A/TRNS RANGE SEL LVR CBL CK1, 2, 3 (MN8, MT1) 2004-2006 01
005 15746922 BRACKET, A/TRNS RANGE SEL LVR CBL CK1 (M30, M32, M33) 2004-2007 01
006 15251895 LEVER, A/TRNS RANGE SEL LVR EQLZR CK1, 2, 3 (MN8, MT1, M30, M32, M33, M70) 2005-2006 01
007 11514597 ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (A/TRNS RANGE SEL LVR EQLZR LVR) (2.383) 1999-2007 01
008 11509640 БОЛТ, HEX W/CON WA, M8X1.25X16, 9.8, PZOR, 17.0-OD, W/DOG PT, TT WASH (TRANS H/SHLD) 1999-2007 02
009 24221125 SWITCH, PARK/NEU POSN B/U LP (AT TRANS) (12-PIN CONN) (4.054) (ACDelco #D2257C) CK1, 2, 3 (MN8, MT1, M30, M32, M33) 2004-2006 01
009 24221125 SWITCH, PARK/NEU POSN B/U LP (AT TRANS) (12-PIN CONN) (ACDelco #D2257C) CK1, 2, 3 (MN8, MT1, M30, M32, M33) 2004-2006 01
010 11516567 BOLT/SCREW, HEX W/FL WA 17 OD, M6X1X20, 9.8, 4345M, DOG PT 1999-2007 01
011 15042027 SUPPORT, A/TRNS RANGE SEL LVR CBL CK1, 2, 3 2001-2007 01
012 15201212 CLIP, A/TRNS RANGE SEL LVR CBL (CLOTHES PIN SHAPED) CK1, 2 (06-36) (MN8, MT1, M30, M32) 2002-2007 01
K01 88967321 CABLE KIT, A/TRNS RANGE SEL LVR (INCLS 2 CABLES INSTRUCTION SHEET) (INCLS 2, 3) (LENGTH OF CABLE/TRANS END = 1278.85MM) C1 (06-36) (MN8, MT1, M30, M32) 2004-2006 01
