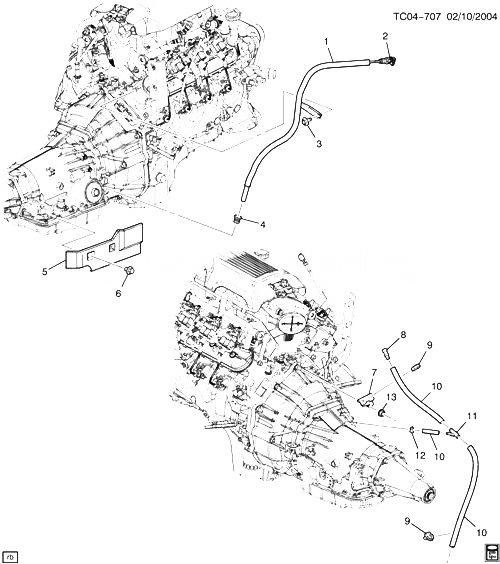

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 002 |
15794380 |
INDICATOR, TRANS FLUID LVL |
CK1 (M33, HP2) |
2004-2005 |
01 |
| 003 |
11516598 |
SCREW, CON WA HD (10X1.5X39) 9.8 7112M 8MM DOG PT (TRANS FLUID FIL TUBE) |
|
2004-2007 |
01 |
| 004 |
01259475 |
SEAL, TRANS FLUID FIL TUBE (ACDelco #1259475) |
CK1, 2, 3 (MN8, MT1, M30, M32, M33) |
2004-2005 |
01 |
| 005 |
15045202 |
SHIELD, TRANS HT |
CK1 (M30, M33) |
2004-2007 |
01 |
| 006 |
15029928 |
БОЛТ, TRANS H/SHLD (M8X1.25X12) |
CK1 (M30, M33) |
2004-2007 |
02 |
| 007 |
15854320 |
BRACKET, TRANS VENT HOSE CLIP |
CK1 (M30, M32, M33) |
2004-2005 |
01 |
| 008 |
15771000 |
VENT, A/TRNS (PART OF 10) (ACDelco #15771000)
| CK1, 2, 3 (MN8, MT1, M30, M32, M33) |
2004-2005 |
01 |
|
| 009 |
08905794 |
CLIP (PART OF 10) |
|
2004-2007 |
02 |
| 010 |
15820590 |
HOSE, TRANS VENT (INCLS 8, 9, 11, 12) |
CK1, 2, 3 (MN8, MT1, M30, M32, M33) |
2004-2005 |
01 |
| 011 |
|
ADAPTER, TRANS VENT HOSE (PART OF 10) |
|
2004-2007 |
|
| 012 |
01648216 |
CLAMP, WORM GEAR, HEX-SLOT SCREW, 1/4X5/8, .320 WIDE BAND, BLACK (PART OF 10) (ACDelco #1648216) |
|
2004-2007 |
01 |
| 013 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (TRANS VENT HOSE CLIP BRKT) (8.915) (ACDelco #11514596)
|
2004-2007 |
01 |
|
