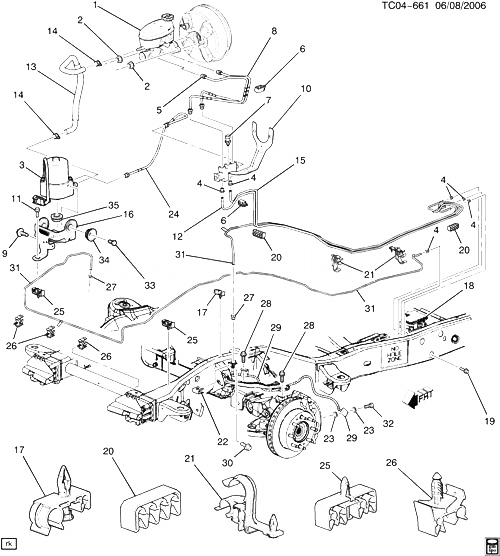

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
CYLINDER, BRK MAS (СМ. ГРУППУ 04.000 ГЛАВНЫЙ ТОРМОЗНОЙ ЦИЛИНДР FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 002 |
11517996 |
ГАЙКА, BRK M/CYL (M10X1.5, 11.2 THK) (8.917)
| CK1, 2, 3 |
2003-2006 |
02 |
|
| 003 |
|
MOTOR KIT, BRK PRESS MOD VLV (*KIT1) |
|
2003-2006 |
|
| 004 |
11588803 |
ГАЙКА, FRT BRK FRT PIPE (1/2-20X.40, .32 THD) (INVERTED FLARED TUBE) (.62 LONG, 1/4 TUBE)
| CK1, 2, 3 |
2005-2006 |
04 |
|
| 005 |
15181254 |
PIPE, RR BRK COMB VLV |
CK1 (06-36) (JH2) |
2004-2005 |
01 |
| 006 |
15086469 |
CLIP, RR BRK FRT PIPE |
CK1 (06-36) (JH2, JL4) |
2003-2005 |
03 |
| 007 |
|
ДАТЧИК, BRK PRESS (PART OF 10) |
|
2005-2006 |
|
| 008 |
15181253 |
PIPE, FRT BRK COMB VLV |
CK1 (06-36) (JH2) |
2005-2005 |
01 |
| 010 |
21998448 |
VALVE, BRK COMB (INCLS 7) (ACDelco #21998448)
| CK1 (06-36) (JH2, JL4) |
2005-2006 |
01 |
|
| 011 |
11518341 |
БОЛТ, HEX, M10X1.5X25, 14 THD, 28 OD, 6202M, 7114M, TAP, TR-PT (BRK PRESS MOD VLV)
|
2003-2006 |
01 |
|
| 012 |
12548430 |
TUBING, BRK, 1/4 X 16 FT ROLL, STL (BRK PRESS MOD VLV)
|
2005-2006 |
AR |
|
| 013 |
15180791 |
HOSE, BRK PRESS MOD VLV (INCLS 14) (ACDelco #176-1144) |
CK1 (06-36) (JL4) |
2003-2006 |
01 |
| 014 |
|
CLAMP, RAD SURGE TK INL HOSE (PART OF 13) |
|
2005-2006 |
|
| 015 |
12548430 |
TUBING, BRK, 1/4 X 16 FT ROLL, STL (BRK PRESS MOD VLV FRT)
|
2005-2006 |
AR |
|
| 017 |
11561432 |
CLIP, FRT BRK PIPE (64.68X25.86X17.0) (HOLDS 4 TUBES) |
CK1 (06-36) |
2003-2006 |
01 |
| 018 |
|
MODULE, ELEK BRK CONT (СМ. ГРУППУ 04.000 BRAKE MODULE FOR DETAILED ILLUSTRATED VIEW) |
|
2003-2006 |
|
| 019 |
12475229 |
БОЛТ, ELEK BRK CONT MDL CVR (M4X0.7X25 PAN HD) |
CK1, 2, 3 |
2003-2006 |
AR |
| 020 |
11562394 |
CLIP, FRT BRK PIPE |
CK1 (JC3, JC4, JH1, JH2) |
2003-2006 |
04 |
| 021 |
15765049 |
CLIP, FRT BRK PIPE (4-6.35, 5.0, 17.0, 33.0MM, PUSH PIN) |
CK1 (06-36) (JH2) |
2004-2005 |
02 |
| 022 |
|
RETAINER, FRT BRK HOSE (PART OF 29) |
|
2003-2006 |
|
| 023 |
21012386 |
WASHER, FRT BRK HOSE (LH RH) (PART OF 29) (10.3X14.5X1.61) (COPPER) (ACDelco #21012386)
| CK1 |
2003-2006 |
AR |
|
| 024 |
15166887 |
PIPE, BRK PRESS MOD VLV FRT (TOTAL LENGTH 565 MM) |
CK1 (06-36) (JH2, JL4) |
2004-2005 |
01 |
| 025 |
11561421 |
CLIP, FRT BRK PIPE (FITS INTO DIA 6 HOLE) |
CK1 (06-36) |
2003-2006 |
02 |
| 026 |
15010672 |
CLIP, FRT BRK FRT PIPE (GRAY) (1-6.35MM, 1-15.0MM) (PUSH PIN W/2 HOLES) (SERRATED) |
CK1 (06-36) |
2003-2006 |
03 |
| 027 |
15724652 |
ГАЙКА, FRT BRK FRT PIPE (7/16-24X0.36) (0.30 THD, .056 LENGTH, 1/4 TUBE, STL, GM7113M) (8.963)
| CK1, 2, 3 |
2003-2005 |
02 |
|
| 028 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (FRT BRK HOSE) |
|
2003-2006 |
02 |
| 029 |
15882779 |
HOSE, FRT BRK (INCLS 23, 22, 32) (ACDelco #176-1388) (WHEN REPL HOSE W/SQ BLK FTNG ANGLED PIPE, THIS ANGLED CORNER BLK FTNG MOUNTS AT 45DEG TO BLEEDER TO PROVIDE PROPER CLEARANCE)
| C1 (06-36) |
2003-2005 |
01 |
|
| 029 |
15882780 |
HOSE, FRT BRK (INCLS 23, 22, 32) (ACDelco #176-1389) (WHEN REPL HOSE W/SQ BLK FTNG ANGLED PIPE, THIS ANGLED CORNER BLK FTNG MOUNTS AT 45DEG TO BLEEDER TO PROVIDE PROPER CLEARANCE) |
C1 (06-36) (JH2) |
2003-2005 |
01 |
| 030 |
11516885 |
SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (FRT BRK HOSE BRKT) |
|
2003-2006 |
01 |
| 031 |
12548430 |
TUBING, BRK, 1/4 X 16 FT ROLL, STL (FRT BRK FRT)
|
2003-2006 |
AR |
|
| 033 |
|
БОЛТ, BRK PRESS MOD VLV BRKT (*KIT1) |
|
2005-2006 |
|
| 034 |
|
INSULATOR, BRK PRESS MOD VLV BRKT (*KIT1) |
|
2005-2006 |
|
| 035 |
|
INSULATOR, BRK PRESS MOD VLV BRKT (*KIT1) |
|
2005-2006 |
|
| K01 |
15142114 |
MOTOR, BRK PRESS MOD VLV (INCLS 3, 9, 16, 33-35) |
CK1 (06-36) (JL4) |
2003-2005 |
01 |
