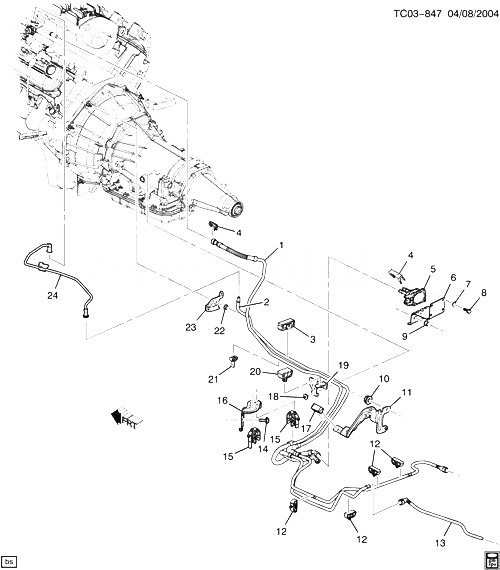

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
10365580 |
HOSE, FUEL FEED (INCLS 12) (IN FUEL HARN) (*KIT1) |
CK1 (06-36) (L59) |
2005-2005 |
01 |
| 002 |
10390312 |
HOSE, EVAP EMIS (INCLS 12) (PART OF PIPE ASM) (*KIT1) |
CK1 (06) (L59) |
2005-2006 |
01 |
| 003 |
15168645 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (RETAINER) (*KIT1) |
CK1 (03-06-36) (L59) |
2005-2006 |
01 |
| 004 |
22695614 |
RETAINER, FUEL FEED HOSE CONN (13 X 19 X 36MM) (ONE TUBE)
| CK1, 2, 3 |
2005-2006 |
01 |
|
| 005 |
12570260 |
ДАТЧИК, FLEX FUEL (FUEL COMPOSITION SENSOR) |
CK1 (L59) |
2005-2005 |
01 |
| 006 |
15190406 |
BRACKET, FLEX FUEL SEN (LABELED 15190406) |
CK1 (L59) |
2005-2005 |
01 |
| 007 |
15772031 |
SPACER, FLEX FUEL SEN CIRC BD |
CK1 (06-36) (L59) |
2005-2005 |
04 |
| 008 |
11609989 |
БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (FLEX FUEL SEN BRKT)
|
2005-2006 |
04 |
|
| 009 |
11516382 |
ГАЙКА, HFH LK M14X2X15, 28 OD 10 7111M (FLEX FUEL SEN)
|
2005-2006 |
02 |
|
| 010 |
11514597 |
ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (TRFER CASE) (2.383)
|
2005-2006 |
02 |
|
| 012 |
15168646 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (PART OF 1, 2) (2 TUBE) (*KIT1) |
CK1 (03-06-36) (L59) |
2005-2006 |
03 |
| 013 |
|
HOSE, EVAP EMIS (СМ. ГРУППУ 03.000 ТОПЛИВНАЯ СИСТЕМА/ЗАДНЯЯ FOR DETAILED ILLUSTRATED VIEW) |
|
2005-2006 |
|
| 014 |
11517895 |
BOLT-HEX, M8X1.25X29.4, 24 OD, 6202M, 7114M, TAP, TR-PT (FUEL FEED EVAP EMIS RTN PIPE CLIP BRKT) |
|
2005-2006 |
03 |
| 015 |
15085404 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (AT HOSE/PIPE CONNECTION) (*KIT1) |
CK1 (06-36) (L59) |
2005-2006 |
02 |
| 016 |
15001960 |
BRACKET, FUEL FEED EVAP EMIS RTN PIPE CLIP (*KIT1) |
CK1 (06) (L59) |
2005-2006 |
01 |
| 017 |
15168649 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (ANTI-RATTLE) (*KIT1) |
CK1 (L59) |
2005-2006 |
01 |
| 018 |
11516703 |
БОЛТ, HEX, M4.8X1.6X13, 20 OD, 6010M MAT, 6047M FIN (FUEL FEED RTN FRT HOSE BRKT) (8.977) |
|
2005-2006 |
01 |
| 019 |
15034434 |
BRACKET, FUEL FEED RTN FRT HOSE (3.163) |
CK1 (M30, M32, M33) |
2005-2005 |
01 |
| 020 |
15085405 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (CLIP - 1.36 LENGTH, MATL NYLON BLACK) (*KIT1) |
CK1 (06-36) (L59) |
2005-2006 |
01 |
| 021 |
15168648 |
CLIP, FUEL FEED EVAP EMIS RTN HOSE (W/RETAINER) (*KIT1) |
CK1 (03-06-36-53) (L59) |
2005-2006 |
01 |
| 022 |
11514596 |
ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596)
|
2005-2006 |
01 |
|
| 023 |
15085402 |
BRACKET, FUEL FEED EVAP EMIS RTN HOSE (*KIT1) |
CK1 (03-06-36) (L59) |
2005-2006 |
01 |
| 024 |
12575527 |
TUBE, EVAP EMIS CNSTR PURGE |
CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
| K01 |
10370944 |
HOSE, FUEL FEED EVAP EMIS RTN (INCLS 1-3, 15-17, 20, 21, 23) |
CK1 (06-36) (L59) |
2005-2006 |
01 |
