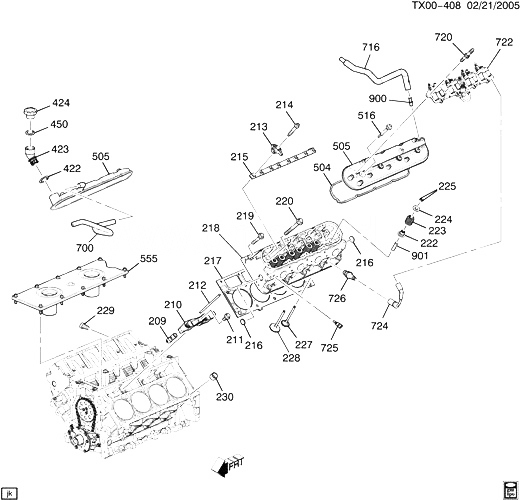

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 209 |
17122490 |
LIFTER, VLV (HYD, ROLLER, NON-ACTIVE FUEL MANAGEMENT LIFTER) (ACDelco #HL124)
| CK1 (LQ9) |
2004-2007 |
16 |
|
| 210 |
12551162 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITHOUT SIDE GROOVES)
| CK1 (LQ9) |
2004-2005 |
04 |
|
| 210 |
12595365 |
GUIDE, VLV LFTR (ACCOMMODATES 4 VLV LFTRS EACH, WITH SIDE GROOVES)
| CK1 (LQ9) |
2004-2007 |
04 |
|
| 211 |
12551163 |
БОЛТ, VLV LFTR GDE (M6X1.0X19) |
CK1 (LQ9) |
2004-2007 |
04 |
| 212 |
10238852 |
ROD, VLV PUSH
| CK1 (LQ9) |
2004-2007 |
16 |
|
| 213 |
10214664 |
ARM, VLV RKR
| CK1 (LQ9) |
2004-2007 |
16 |
|
| 214 |
12560961 |
БОЛТ, VLV RKR ARM PIV SUPT (M8X1.25X52.5) |
CK1 (LQ9) |
2004-2007 |
16 |
| 215 |
12552203 |
SUPPORT, VLV RKR ARM PIV
| CK1 (LQ9) |
2004-2007 |
02 |
|
| 216 |
11562126 |
PLUG, CYL HD CORE HOLE (PART OF 218) (CUP, 32.03X7.88X1.27, S30400 SS PER SAE J405.)
| CK1 (LQ9) |
2004-2007 |
02 |
|
| 217 |
12589227 |
ПРОКЛАДКА, CYL HD
| CK1 (LQ9) |
2004-2007 |
02 |
|
| 218 |
12562319 |
HEAD, CYL (PARTIAL) (INCLS 216, 901) (INCLS HEAD, GUIDES, SEATS, PLUG) |
CK1 (LQ9) |
2004-2007 |
02 |
| 219 |
12558840 |
БОЛТ, CYL HD (SHORT) (M8X1.25X45)
| CK1 (LQ9) |
2004-2007 |
10 |
|
| 220 |
11571134 |
БОЛТ, CYL HD (M11X2X100) |
CK1 (LQ9) |
2005-2007 |
20 |
| 222 |
12482062 |
SEAL KIT, EXH VLV STEM OIL (22.8MM) (INCLS 8 SEALS)
| CK1 (LQ9) |
2004-2007 |
01 |
|
| 222 |
12482063 |
SEAL KIT, INT VLV STEM OIL (W/SPRING SHIM) (14.4MM) (INCLS 8 SEALS)
| CK1 (LQ9) |
2004-2007 |
01 |
|
| 223 |
12589774 |
ПРУЖИНА, VLV
| CK1 (LQ9) |
2004-2007 |
16 |
|
| 224 |
10166344 |
CAP, VLV SPR
| CK1 (LQ9) |
2004-2007 |
16 |
|
| 225 |
10166345 |
KEY, VLV STEM
| CK1 (LQ9) |
2004-2007 |
32 |
|
| 227 |
12563064 |
КЛАПАН, ВЫПУСКНОЙ (STD)
| CK1 (LQ9) |
2004-2007 |
08 |
|
| 228 |
12563063 |
КЛАПАН, ВПУСКНОЙ (STD) |
CK1 (LQ9) |
2004-2007 |
08 |
| 229 |
12553191 |
PLUG, CYL HD CORE HOLE (M12X1.5X21) (HEX, SOC) |
CK1 (LQ9) |
2004-2007 |
01 |
| 230 |
12570326 |
PIN, CYL HD LOC
| CK1 (LQ9) |
2004-2007 |
04 |
|
| 422 |
24100002 |
SEAL, OIL FIL TUBE (O RING) (27.94MM I.D.) (SIZE #320)
| CK1 (LQ9) |
2004-2007 |
01 |
|
| 423 |
12574386 |
TUBE, OIL FIL
| CK1 (LQ9) |
2004-2007 |
01 |
|
| 424 |
12589430 |
CAP, OIL FIL (SAE 5W30, VENTED, W/SEAL) (INCLS 450) (ACDelco #FC219)
| CK1 (LQ9) |
2004-2005 |
01 |
|
| 450 |
24100002 |
SEAL, OIL FIL CAP (O RING) (PART OF 424) (27.94MM I.D.) (SIZE #320) (1.745)
| CK1 (LQ9) |
2004-2007 |
01 |
|
| 504 |
12612045 |
ПРОКЛАДКА, VLV RKR ARM CVR (PART OF 505)
| CK1 (LQ9) |
2004-2007 |
02 |
|
| 505 |
12570427 |
COVER, VLV RKR ARM (INCLS 504, 516, 900) (INCLSCOVER, GASKET, BOLT, DEFLECTOR, FITTING) |
CK1 (LQ9) |
2004-2007 |
01 |
| 505 |
12582224 |
COVER, VLV RKR ARM (INCLS 504, 516, 900) (INCLSCOVER, GASKET, BOLT, DEFLECTOR, FITTING) |
CK1 (LQ9) |
2005-2007 |
01 |
| 516 |
12577215 |
БОЛТ, VLV RKR ARM CVR (PART OF 505) (M6.0X1.0) (W/GROMMET, SLEEVE) |
CK1 (LQ9) |
2004-2007 |
08 |
| 555 |
|
COVER, ENG BLK VALLEY (СМ. ГРУППУ 00.000 КОЛЛЕКТОРЫ И СВЯЗАННЫЕ ДЕТАЛИ FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 700 |
12582227 |
HOSE, PCV |
CK1 (LQ9) |
2005-2007 |
01 |
| 716 |
12615914 |
TUBE, PCV |
CK1 (LQ9) |
2004-2007 |
01 |
| 720 |
12554211 |
STUD, IGN COIL BRKT (HFH, M6X1X18) (3.330) (ACDelco #12554211) |
CK1 (LQ9) |
2004-2007 |
10 |
| 722 |
|
КАТУШКА, ЗАЖИГАНИЯ (СМ. ГРУППУ 02.000 COIL/IGNITION FOR DETAILED ILLUSTRATED VIEW) |
|
2004-2007 |
|
| 724 |
12192133 |
WIRE, SPLG (10.5IN) (7MM DIA, 10.5LONG) (W/O HEAT SHLD) (IGN CABLE) (*KIT1) (ACDelco #349V)
| CK1 (LQ9) |
2004-2007 |
08 |
|
| 724 |
12192195 |
WIRE, SPLG (9.2IN) (7MM DIA, 9.2LONG) (W/O HEAT SHLD) (IGN CABLE) (*KIT1) (ACDelco #350R)
| CK1 (LQ9) |
2004-2007 |
08 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-4333)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (1.150) (ACDelco #213-4333)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2006 |
01 |
|
| 726 |
12609877 |
СВЕЧА ЗАЖИГАНИЯ, (GAP 0.040) (ACDelco #41-985) (IRIDIUM)
| CK1 (LQ9) |
2004-2007 |
08 |
|
| 900 |
12567915 |
FITTING, PCV (PART OF 505) |
CK1 (LQ9) |
2004-2007 |
01 |
| 901 |
|
GUIDE, VLV (PART OF 218) |
|
2005-2007 |
|
| K01 |
88894393 |
WIRE KIT, SPLG (COILS STAMPED 19005218-DELPHI COIL, 7MM DIA, 9.2IN LG) (INCLS 724) (CONTAINS 8 WIRES) (ACDelco #748GG)
| CK1 (LQ9) |
2004-2007 |
01 |
|
| K01 |
88894394 |
WIRE KIT, SPLG (USED W/COILS STAMPED 12558693-MELCO COIL, 7MM DIA, 10.5IN LG) (INCLS 724) (ACDelco #748HH)
| CK1 (LQ9) |
2004-2007 |
01 |
|
