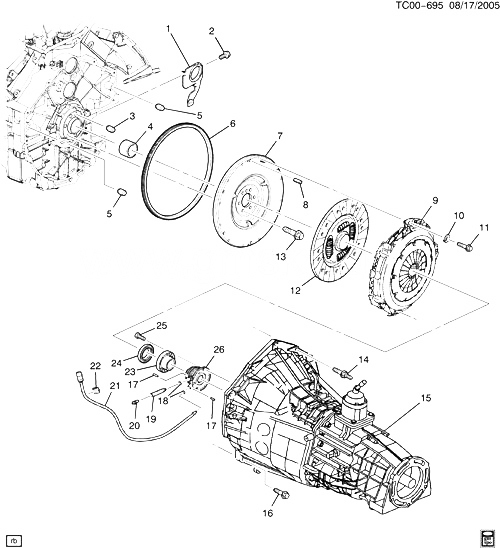

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
24232610 |
COVER, TRANS (ACDelco #24232610) |
CK1 (LU3, MG5) |
2005-2005 |
01 |
| 002 |
23049567 |
БОЛТ, HEX HD, M8X1.25X50, 13 O.D. (TRANS CASE RR HSG) |
|
2002-2005 |
03 |
| 003 |
10046031 |
PIN, FLYWHL LOC (3.686) |
CK1 (LU3) |
2002-2005 |
01 |
| 004 |
12557583 |
BEARING, CLU PILOT (22.7MM ID, 43.3MM OD, 13 THK) (ACDelco #CT1082) |
CK1 (LU3, MG5) |
2002-2005 |
01 |
| 005 |
01453658 |
PIN, DOWEL STRAIGHT 5/8 DIA 1 3/16 LG (TRANS LOC) |
|
2002-2005 |
02 |
| 006 |
03991408 |
GEAR, FLYWHL RING (PART OF 7) |
CK1 (LU3, MG5) |
2002-2005 |
01 |
| 007 |
12557585 |
FLYWHEEL, ENG (INCLS 6, 8) |
CK1 (LU3, MG5) |
2002-2005 |
01 |
| 008 |
00274584 |
PIN, GROOVE/F/.312X.375 CZ 0.375 LENGTH (PART OF 7) |
|
2002-2005 |
AR |
| 009 |
24235337 |
PLATE, CLU PRESS DRVN (W/CVR) |
CK1 (LU3, MG5) |
2002-2005 |
01 |
| 010 |
11500046 |
WASHER, LK #10X18.3OD (CLU PRESS PLT) |
|
2002-2005 |
06 |
| 011 |
00838653 |
БОЛТ, CLU PRESS PLT (3/8-16X1) |
CK1 (LU3, MG5) |
2002-2005 |
06 |
| 012 |
24235338 |
PLATE, CLU DRVN |
CK1 (LU3, MG5) |
2004-2005 |
01 |
| 013 |
14088764 |
БОЛТ, FLYWHL (7/16-20 X 45/64) (0.685)
| CK1 (LU3, MG5) |
2002-2005 |
06 |
|
| 014 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| C1 (TZ0) (EXPORT) |
2003-2005 |
06 |
|
| 014 |
15724226 |
STUD, TRANS (HFH, M8X1.25X20, M10X1.5X35, 18 OD, 64.5 TL, 9.8, 7114M) (4.047)
| CK1, 2, 3 (MG5) |
2003-2005 |
06 |
|
| 015 |
|
МКПП, В СБОРЕ (СМ. ГРУППУ 04.000 TRANSMISSION FOR DETAILED ILLUSTRATED VIEW) |
|
2002-2005 |
|
| 016 |
11515768 |
БОЛТ, HFH, REDUCED BODY, M10X1.5X40, 30THD, 22.3 O.D., HDR PT, 10.9, 7114M (TRANS)
|
2002-2005 |
01 |
|
| 017 |
12386924 |
PIN, CLU ACTR CYL (PART OF 26) |
CK1 (MG5) |
2002-2005 |
02 |
| 017 |
12386924 |
PIN, CLU ACTR CYL (PART OF 26) |
CK1, 2, 3 (TZ0) (EXPORT) |
2003-2005 |
02 |
| 018 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (6 CYL ENG) (PART OF 26) |
CK1 (MG5) |
2002-2005 |
02 |
| 018 |
12549117 |
SEAL, CLU ACTR CYL (O RING) (PART OF 26) |
CK1, 2, 3 (M96, TZ0) (EXPORT) |
2003-2005 |
02 |
| 019 |
|
FITTING, CLU REL BRG LUB (PART OF 26) |
|
2005-2005 |
|
| 020 |
|
VALVE, CLU ACTR CYL BL (PART OF 26) |
|
2005-2005 |
|
| 021 |
|
HOSE, CLU REL BRG LUB (PART OF 26) |
|
2005-2005 |
|
| 022 |
|
CLIP, CLU REL BRG LUB HOSE (PART OF 26) |
|
2005-2005 |
|
| 023 |
|
BEARING, CLU REL (PART OF 26) |
|
2005-2005 |
|
| 024 |
|
BEARING, CLU REL (PART OF 26) |
(MW3) |
2002-2005 |
|
| 024 |
88934649 |
BEARING, CLU REL (47.5MM ID) (PART OF 26) (W/O CARR) (ACDelco #CT1075) |
CK1 (LU3, MG5) |
2003-2005 |
01 |
| 024 |
88934649 |
BEARING, CLU REL (47.5MM ID) (PART OF 26) (W/O CARR) (ACDelco #CT1075) |
CK1, 2, 3 (M96, TZ0) (EXPORT) |
2003-2005 |
01 |
| 025 |
11517517 |
БОЛТ, HFH, M6X1X16, 13.5 THD, 14.2 OD, 9.8, SN-ZN, MACH, HDR-PT (CLU ACTR CYL) |
|
2002-2005 |
01 |
| 026 |
24235621 |
CYLINDER, CLU ACTR (INCLS 17-24) |
CK1 (LU3, MG5, TZ0) |
2003-2005 |
01 |
