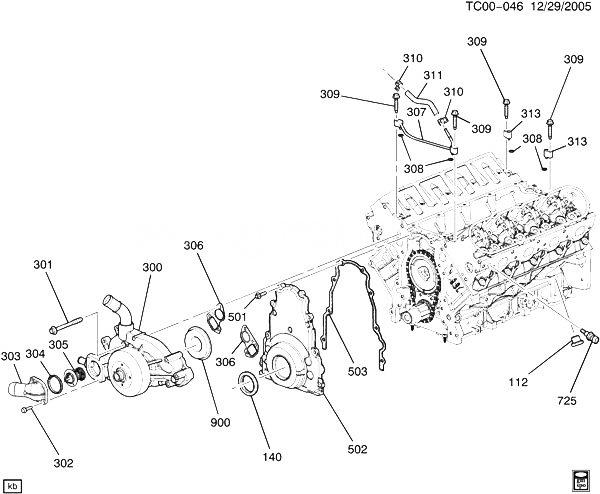

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 112 |
11588949 |
PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE)
|
2005-2005 |
01 |
|
| 140 |
12585673 |
SEAL, CR/SHF FRT OIL (PART OF 502) (0.207) (ACDelco #296-02)
| CK1 (L59) |
2005-2005 |
01 |
|
| 300 |
89017439 |
НАСОС, WAT (INCLS 306, 900) (INCLS PUMP, PIPE, PULLEY, THERMOSTAT, SEAL, BOLT, INLET, GASKETS) (ACDelco #251-680) (MUST BE SERVICED WITH 2004 OR NEWER PARTS ONCE PUMP IS REPLACED) |
CK1 (L59) |
2005-2005 |
01 |
| 301 |
12551926 |
БОЛТ, W/PMP (M8X1.25X83)
| CK1 (L59) |
2005-2005 |
06 |
|
| 302 |
11516480 |
БОЛТ, W/PMP INL (M6X1X25-10MM SOC) |
CK1 (L59) |
2005-2005 |
01 |
| 303 |
12600172 |
INLET, W/PMP (INCLS 304, 305) (INCLS INLET, SEAL, THERMOSTAT) |
CK1 (L59) |
2005-2005 |
01 |
| 304 |
12570307 |
SEAL, WAT INL (PART OF 303) (ACDelco #131-169)
| CK1 (L59) |
2005-2005 |
01 |
|
| 305 |
12600171 |
THERMOSTAT, ENG COOL (SEAL NOT INCLUDED) (PART OF 303) (ACDelco #131-156) (USED ON PUMPS WITH CASTING NUMBER 12569519)
| CK1 (L59) |
2005-2005 |
01 |
|
| 306 |
12559271 |
ПРОКЛАДКА, W/PMP (2 OBLONG 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (PART OF 300) (ACDelco #12559271) |
CK1 (L59) |
2005-2005 |
02 |
| 307 |
12604711 |
PIPE, ENG COOL AIR BL (INCLS 308, 310, 311) |
CK1 (L59) |
2005-2005 |
01 |
| 308 |
12602541 |
SEAL, ENG COOL AIR BL PIPE (O RING) (SINGLE TYPE ONE HOLE O-RING) (PART OF 307, 313) |
CK1 (L59) |
2005-2005 |
02 |
| 309 |
11514008 |
БОЛТ, METRIC HEX FLG HD (M6X1X30) (POR 9.8) (ENG COOL AIR BL PIPE) (1.097) |
|
2005-2005 |
04 |
| 310 |
25526358 |
CLAMP, SPRG BAND, 14.2MM, 9/16 OD HOSE, POR (PART OF 307) |
|
2005-2005 |
02 |
| 311 |
12570528 |
HOSE, ENG COOL AIR BL (PART OF 307) |
CK1 (L59) |
2005-2005 |
01 |
| 313 |
12602540 |
COVER, ENG COOL AIR BL PIPE HOLE (INCLS 308) (INCL SEALS) |
CK1 (L59) |
2005-2005 |
02 |
| 501 |
11515758 |
БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 502)
|
2005-2005 |
08 |
|
| 502 |
12561243 |
COVER, ENG FRT (INCLS 140, 501, 503) (INCLS CVR, SEAL, GSKT, BOLT)
| CK1 (L59) |
2005-2005 |
01 |
|
| 503 |
12574294 |
ПРОКЛАДКА, ENG FRT CVR (PART OF 502)
| CK1 (L59) |
2005-2005 |
01 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-4333)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2005 |
01 |
|
| 725 |
12608814 |
ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (1.150) (ACDelco #213-4333)
| CK1, 2, 3 (LM7, LQ4, LQ9, LR4, L33, L59) |
2005-2005 |
01 |
|
| 725 |
19236568 |
ДАТЧИК, ENG COOL TEMP (ACDelco #213-4514) (ALL MAKES) |
C157 (06) (L59) |
2005-2005 |
01 |
| 900 |
|
PLUG, W/PMP (PART OF 300) |
|
2005-2005 |
|
