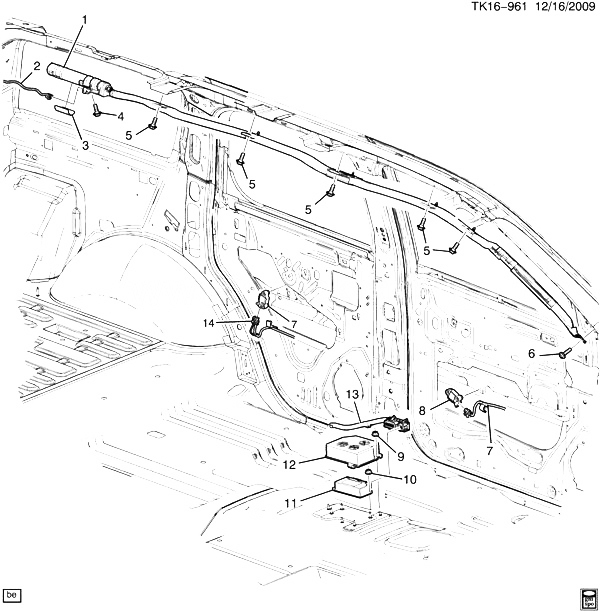

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25897886 |
AIRBAG, RF S/RL (INCLS 3, 5, 6) (1ST 2ND ROW) |
CK107 (06) (ASF, ATD) |
2010-2013 |
01 |
| 001 |
25897887 |
AIRBAG, RF S/RL (INCLS 3, 5, 6) (1ST 2ND ROW) |
CK107 (06) (ASF, ATD) |
2010-2013 |
01 |
| 002 |
|
HARNESS, RF WRG (SEE GROUP 02.000 WIRING HARNESS/ROOF FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 003 |
|
LABEL, RF S/RL AIRBAG WRNG (PART OF 1) |
|
2010-2013 |
|
| 004 |
11609939 |
BOLT, R/RL AIRBAG (M6X1X30, 21 THD, 17 OD) (8.977) |
CK1, 2 (06) |
2010-2013 |
04 |
| 005 |
11562053 |
BOLT, R/RL AIRBAG (PART OF 1) (M6X1X23 18THD 19OD) |
CK1, 2 (06) |
2010-2013 |
14 |
| 006 |
11609939 |
BOLT, R/RL AIRBAG (PART OF 1) (M6X1X30, 21 THD, 17 OD) (8.977) |
CK1, 2 (06) |
2010-2013 |
04 |
| 007 |
20884470 |
SENSOR, AIRBAG SI IMP |
CK1, 2, 3 (06-36) (ASF) |
2011-2013 |
04 |
| 008 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 009 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIRBAG SEN DIAGN MDL CVR) |
|
2010-2013 |
03 |
| 010 |
11609411 |
NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (SEN DIAGN AIRBAG MDL) |
|
2010-2013 |
03 |
| 011 |
13579116 |
MODULE, AIRBAG SEN DIAGN |
CK1, 2, 3 (ASF) |
2012-2013 |
01 |
| 012 |
25898069 |
COVER, AIRBAG SEN DIAGN |
CK1, 2 (06-36) (9S1, 9U3) (EXC M1F) |
2010-2013 |
01 |
| 012 |
25898069 |
COVER, AIRBAG SEN DIAGN |
CK1, 2 (06-36) (9N5) (EXC M1F) |
2010-2013 |
01 |
| 013 |
|
HARNESS, BODY WRG (SEE GROUP 02.000 WIRING HARNESS/BODY FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
| 014 |
|
HARNESS, RR S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/REAR FOR DETAILED ILLUSTRATED VIEW) |
|
2010-2013 |
|
