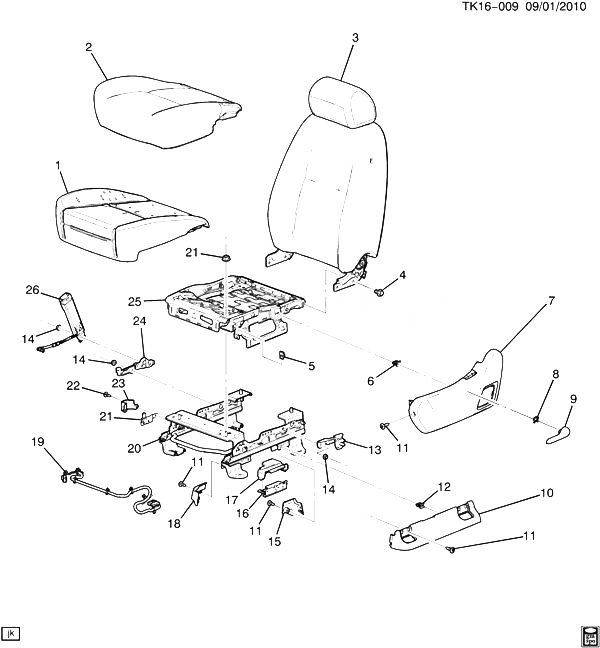

(TK16-009) 2010-2013 CK1,2(06) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH-CUSHION -V TRIMS(AZ3,EXC (AG1)) CHEVROLET TAHOE HYBRID (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 15243904 PAD, D/SEAT CUSH CK1, 2 (06) (AL0, AZ3, 19C, 33C) (EXC AG1) 2010-2013 01
001 15243904 PAD, D/SEAT CUSH CK1, 2 (06) (AL0, AZ3, 19V, 9S1) (EXC AG1) 2012-2013 01
001 15243904 PAD, D/SEAT CUSH CK1, 2 (06) (AL0, AZ3, 19V) (EXC AG1, 9S1) 2012-2013 01
002 20779865 COVER, D/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) CK1, 2 (06) (AZ3, AL0, 19V) (EXC AG1) 2010-2013 01
003 PAD, D/SEAT BK (SEE GROUP 16.000 DRIVER SEAT/SPLIT BENCH-BACK DETAILED ILLUSTRATED VIEW) 2010-2013
004 11515764 BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) 2010-2013 08
005 11513599 NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) 2010-2013 02
006 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 7) 2010-2013 03
007 15232576 COVER, D/SEAT ADJR FIN (INCLS 6) (EBONY) (MANUAL) CK1, 2 (06) (AZ3, 19I) (EXC AG1) 2010-2013 01
007 15882421 COVER, D/SEAT ADJR FIN (INCLS 6) (COCOA) (BELT UTILITY) CK1 (06) (41I) 2010-2013 01
008 RETAINER, F/SEAT ADJR HDL (PUSH ON) (PART OF 9) 2010-2013
010 15232584 COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 12) (EBONY) (OUTBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
011 11609539 SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) 2010-2013 05
012 11588650 CLIP, 12X14X16.6, GM4345M (PART OF 10) 2010-2013 02
013 15845152 BRACKET, D/SEAT BELT (RETR SI) (O/B) CK1, 2, 3 (AL0) 2010-2013 01
014 11517996 NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) 2010-2013 09
015 15243864 COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) CK1, 2 (06-36) (19I) 2010-2013 01
016 15827134 BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) CK1, 2, 3 2012-2013 01
017 20970791 COVER, WRG HARN CONN (EBONY) CK1, 2 (06-36) (X88) (EXC Y91) 2011-2013 01
018 15243850 COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) CK1, 2 (06-36) (19I) 2010-2013 01
019 22814905 HARNESS, D/SEAT ADJR WRG CK1, 2 (06) (AL0, AZ3, 19V) (EXC AG1) 2012-2013 01
020 25966536 ADJUSTER, D/SEAT (MANUAL) CK1, 2, 3 (AZ3) (EXC AG1) 2010-2013 01
021 25951880 SENSOR, AIRBAG D/SEAT POSN (MATING CONN W/LEADS USE 13577629) CK1, 2 (06-36) (AL0, AZ3, 19I, 33C) 2010-2013 01
022 88981918 BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) CK1, 2, 3 2010-2013 06
023 20900194 COVER, AIRBAG D/SEAT POSN SEN CK1, 2 (06-36) 2010-2013 01
024 25916854 BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) CK1, 2, 3 2010-2013 01
025 22781434 FRAME, D/SEAT CUSH CK1, 2 (06-36) 2012-2013 01
026 19121537 BELT KIT, D/SEAT (BKL SI) (EBONY) (CONNECTOR IS ON OUTBOARD SIDE OF BUCKLE) CK1, 2 (06-36) (AZ3, 19I) 2010-2013 01
