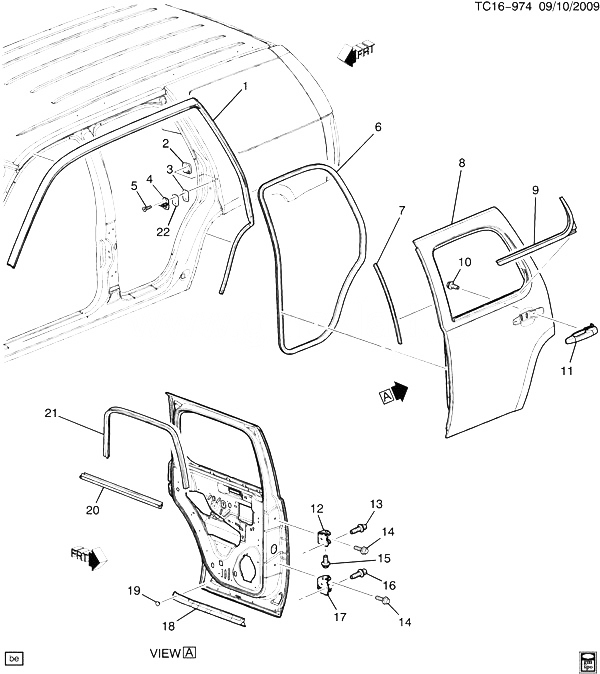

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
20789461 |
WEATHERSTRIP, FRT RR S/D UPR AUX (INCLS RETAINERS) |
CK107 (06) |
2007-2013 |
01 |
| 001 |
20789462 |
WEATHERSTRIP, FRT RR S/D UPR AUX (INCLS RETAINERS) |
CK107 (06) |
2007-2013 |
01 |
| 002 |
15201414 |
PLATE, RR S/D LK STKR ANC |
CK1, 2 (06-36) |
2007-2013 |
02 |
| 003 |
10387651 |
WASHER, RR S/D LK STKR (10.571) |
CK1, 2 (06-36) |
2007-2013 |
02 |
| 004 |
20951578 |
STRIKER, RR S/D LK (10.569) |
CK1, 2 (06-36) |
2007-2013 |
02 |
| 005 |
09442471 |
BOLT, TORX HD, W/FLAT CSK, M8X1.25X35, 28 THD, 15.2 O.D., 9.8, NO (RR S/D LK STKR) |
|
2007-2013 |
04 |
| 006 |
22766416 |
WEATHERSTRIP, RR S/D |
CK107 (06) |
2007-2013 |
02 |
| 007 |
22766375 |
WEATHERSTRIP, RR S/D FRT AUX |
CK1 (06-36) (X88, Z88) |
2007-2013 |
02 |
| 008 |
20969011 |
DOOR, RR SI (SEE GROUP 16.000 SHEET METAL/BODY FOR DETAILED ILLUSTRATED VIEW) |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 008 |
20969012 |
DOOR, RR SI (SEE GROUP 16.000 SHEET METAL/BODY FOR DETAILED ILLUSTRATED VIEW) (W/O HINGES) |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 009 |
22774084 |
SEALING STRIP, RR S/D WDO OTR |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 009 |
22774085 |
SEALING STRIP, RR S/D WDO OTR |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 010 |
11516421 |
BOLT, HFH, M6X1X10, 14.2 O.D., 9.8, 7114M (RR S/D O/S HDL) |
|
2007-2013 |
04 |
| 011 |
25960522 |
HANDLE, RR S/D O/S (CHROME) (PO HDL PKG) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 011 |
20954815 |
HANDLE, RR S/D O/S (MOLDED IN BLACK) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 011 |
22738725 |
HANDLE, RR S/D O/S (CHROME) (PO HDL PKG) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 011 |
20954816 |
HANDLE, RR S/D O/S (MOLDED IN BLACK) |
CK1, 2 (06-36) |
2007-2013 |
01 |
| 011 |
20954825 |
HANDLE, RR S/D O/S (PAINT TO MATCH) (USE T/W CLIP 20828232) |
CK1, 2 (06) |
2007-2013 |
01 |
| 011 |
25890276 |
HANDLE, RR S/D O/S (PAINT TO MATCH) |
CK1, 2 (06) |
2007-2013 |
01 |
| 012 |
25854398 |
HINGE, RR S/D UPR (BODY DR SIDE) (REPL T/W 13307322 T/W ADHESIVE 89021297) |
CK1, 2, 3 (06-43) |
2007-2013 |
01 |
| 012 |
25854397 |
HINGE, RR S/D UPR (BODY DR SIDE) (REPL T/W 13307322 T/W ADHESIVE 89021297) |
CK1, 2, 3 (06-43) |
2007-2013 |
01 |
| 013 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/D HGE (DR SI)) |
|
2007-2013 |
06 |
| 014 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/D HGE (BODY SI)) |
|
2007-2013 |
08 |
| 015 |
13307322 |
BOLT, RR S/D HGE (USE T/W ADHESIVE 89021297) |
CK1, 2, 3 |
2007-2013 |
02 |
| 016 |
11609733 |
BOLT, HEX W/CON WA, M8X1.25X30, 20 THD, 24 OD, 10.9, GMW4205, MAT POINT (RR S/D LWR HGE (DR SI)) |
|
2007-2013 |
04 |
| 017 |
20876300 |
HINGE, RR S/D LWR (BODY DR SI) |
CK1, 2 (06) |
2007-2013 |
01 |
| 017 |
20876301 |
HINGE, RR S/D LWR (BODY DR SI) |
CK1, 2 (06) |
2007-2013 |
01 |
| 018 |
20835978 |
WEATHERSTRIP, RR S/D LWR AUX (INCLS 19) |
CK107 (06) |
2007-2013 |
01 |
| 018 |
20835979 |
WEATHERSTRIP, RR S/D LWR AUX (INCLS 19) |
CK107 (06) |
2007-2013 |
01 |
| 019 |
|
RETAINER, RR S/D LWR AUX W/STRP (PART OF 18) |
|
2007-2013 |
|
| 020 |
22832144 |
SEALING STRIP, RR S/D WDO INR |
CK107 (06) (X88, Z88) |
2007-2013 |
02 |
| 021 |
22803681 |
WEATHERSTRIP, RR S/D WDO |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 021 |
22803680 |
WEATHERSTRIP, RR S/D WDO |
CK107 (06) (X88, Z88) |
2007-2013 |
01 |
| 022 |
12451685 |
SPACER, RR S/D LK STKR (10.571) |
CK1, 2 (06-36) |
2007-2013 |
AR |
