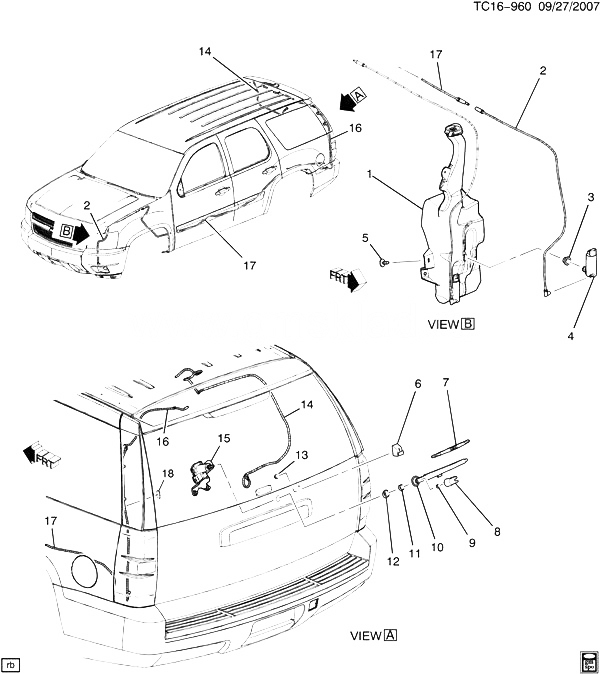

(TC16-960) 2007-2013 CK1,2(06) СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ ЗАДНЕГО СТЕКЛА (C25) CHEVROLET TAHOE HYBRID (4WD) 2013

Поз.НомерОписаниеПрименениеНоменклатураКол-во
001 CONTAINER, WSWA SOLV (*KIT1) 2013-2013
002 25887957 HOSE, R/WDO WA PUMP (REAR JUMPER HOSE) CK1, 2 (06) (C25) 2007-2013 01
003 15927514 GROMMET, WSWA PUMP (PUMP GROMMET) (*KIT1, KIT2) (ACDelco #15927514) CK1, 2, 3 2007-2013 01
004 PUMP, R/WDO WA (*KIT2) 2013-2013
005 11609989 BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR) 2007-2013 03
006 25820075 RAMP, R/WDO WPR ARM PARK (ACDelco #25820075) CK1, 2 (06) (C25) 2007-2013 01
007 25820122 BLADE, R/WDO WPR (ACDelco #25820122) CK1, 2 (06) 2007-2013 01
008 15798935 CAP, WSW ARM NUT (PART OF 10) CK1 (06-36) 2007-2013 01
009 11589150 NUT, HEX, W/ADH, M8X1.25X6.80, 5, GMW3359 (R/WDO WPR ARM) 2007-2013 01
010 15277756 ARM, R/WDO WPR (INCLS 8) (INCLS HOSE) CK1, 2 (06) (C25) 2007-2013 01
011 11569839 NUT, R/WDO WPR MOT CK1, 2 (06) (C25) 2007-2013 01
012 15173732 SPACER, R/WDO WPR MOT CK1, 2 (06) (C25) 2007-2013 01
013 11609411 NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (R/WDO WPR ARM PARK RAMP) 2007-2013 01
014 HOSE, WSW ARM L/GATE (SEE GROUP 02.000 WIRING HARNESS/ LIFT GATE FOR DETAILED ILLUSTRATED VIEW) 2007-2013
015 25923437 MOTOR, R/WDO WPR (INCLS MTG BOLTS AND GROMMETS) (ACDelco #25923437) CK1, 2 (06) (C25) 2007-2013 01
016 25887953 HOSE, WSWA L/GATE EXTN RR (ACDelco #25887953) CK1, 2 (06) (C25) 2007-2013 01
017 20784419 HOSE, WSWA L/GATE EXTN SI LWR (ACDelco #20784419) CK107 (06) (C25) 2007-2013 01
018 15076678 INSULATOR, WSW TRANS SUPT (16.686) CK1, 2 (06) (C25) 2009-2013 01
K01 20999340 CONTAINER KIT, WSWA SOLV (INCLS 1, 3) (USE T/W 20999338 WHEN REPLACING 15248577, 15213911 OR 15942522.) CK1, 2 (06) 2007-2013 01
K02 15942524 PUMP KIT, WSWA W/SEAL (INCLS 3, 4) (RR PUMP KIT W/GROMMET) (ACDelco #15942524) 1, 2 (06) 2007-2013 01
