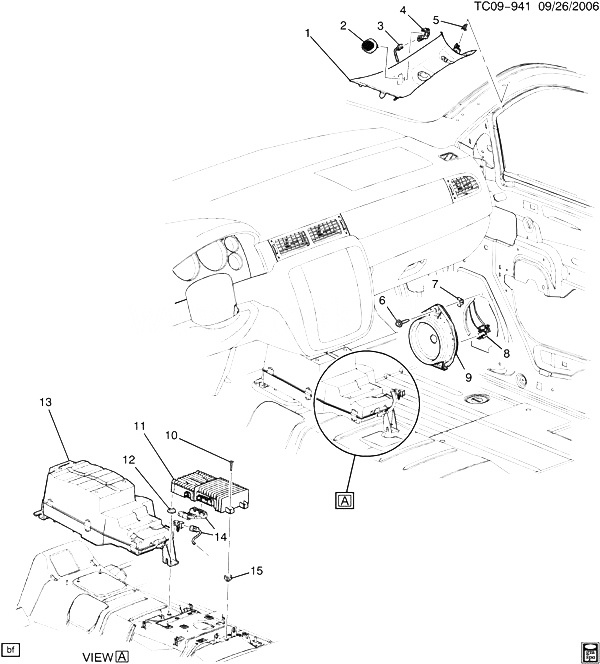

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
|
MOLDING, W/S SI GARN (INCLS 2, 4, 5) (SEE GROUP 16.000 TRIM/INTERIOR FOR DETAILED ILLUSTRATED VIEW) (GRAY) |
|
2007-2013 |
|
| 002 |
25889859 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQA, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889853 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQA, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889861 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1, 2 (06-36) (UQA, 33I) |
2009-2013 |
01 |
| 002 |
25889855 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) |
CK1, 2 (06-36) (UQA, 33I) |
2009-2013 |
01 |
| 002 |
25889847 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQ3, X88, Z88, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889844 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (GRAY) |
CK1, 2 (06-36) (UQ3, X88, Z88, 19I, 83I) |
2009-2013 |
01 |
| 002 |
25889845 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1, 2 (06-36) (UQ3, X88, Z88, 33I) |
2009-2013 |
01 |
| 002 |
25889848 |
GRILLE, RDO W/S SI G/MLDG SPKR (PART OF 1) (CASHMERE) |
CK1, 2 (06-36) (UQ3, X88, Z88, 33I) |
2009-2013 |
01 |
| 003 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 004 |
15186674 |
SPEAKER, RDO W/S SI G/MLDG (PART OF 1) (ACDelco #15186674) |
CK1, 2, 3 (UQA, UQS, UQ3) |
2007-2013 |
02 |
| 005 |
11588650 |
CLIP, 12X14X16.6, GM4345M (PART OF 1) |
|
2007-2013 |
01 |
| 006 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
02 |
| 007 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 008 |
|
HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 DOOR HARDWARE/SIDE FRONT FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 009 |
15905042 |
SPEAKER, RDO FRT S/D (ACDelco #15905042) |
CK1, 2, 3 (UQA, UQS) |
2007-2013 |
02 |
| 009 |
25852236 |
SPEAKER, RDO FRT S/D (MATING CONN W/LEADS USE 12101825) (ACDelco #25852236) |
CK1, 2, 3 (UQ3) |
2007-2013 |
02 |
| 010 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT SPKR) (9.665) |
|
2007-2013 |
02 |
| 011 |
20808897 |
AMPLIFIER, RDO SPKR (ACDelco #20808897) |
CK1, 2 (06) (D07, STZ, UK6, UQA) (EXC Y91) |
2010-2013 |
01 |
| 011 |
15186661 |
AMPLIFIER, RDO SPKR |
CK1, 2 (06) (D07, UK6, UQA) (EXC STZ, Y91) |
2009-2013 |
01 |
| 012 |
11570654 |
NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) |
CK1, 2, 3 |
2007-2013 |
02 |
| 013 |
25915806 |
SPEAKER, RDO F/FLR CNSL (ACDelco #25915806) |
CK1, 2, 3 (D07, UQA, UQS) |
2010-2013 |
01 |
| 014 |
|
HARNESS, F/FLR CNSL WRG ( (SEE GROUP 16.000CONSOLE/FLOOR FOR DETAILED ILLUSTRATED VIEW) |
|
2007-2013 |
|
| 015 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (F/FLR CNSL BRKT) (10.701) |
|
2007-2013 |
02 |
