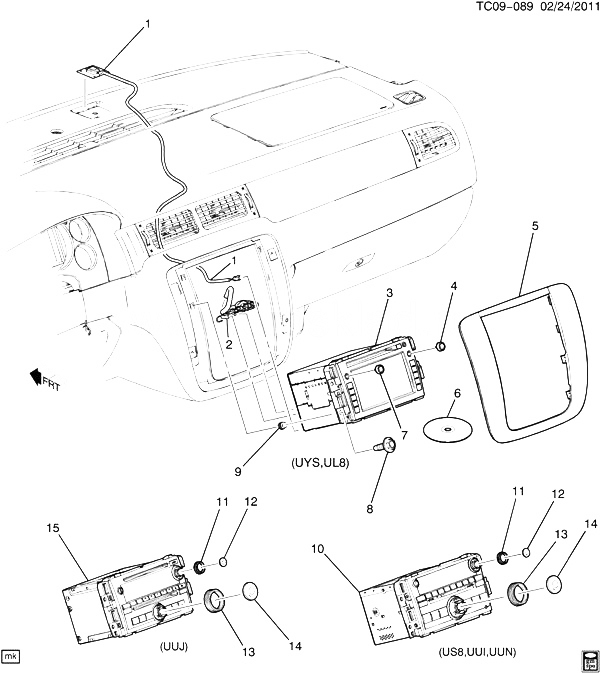

| Поз. | Номер | Описание | Применение | Номенклатура | Кол-во |
| 001 |
25918632 |
ANTENNA, ELEK NAVIGATION (ACDelco #25918632) |
CK1, 2, 3 (UYS) |
2012-2013 |
01 |
| 002 |
|
HARNESS, I/P WRG (SEE GROUP 02.000 WIRING HARNESS/INSTRUMENT PANEL FOR DETAILED ILLUSTRATED VIEW) |
|
2012-2013 |
|
| 003 |
22923616 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22923616) (LABELED 22923616) |
CK1, 2, 3 (UYS) (EXC CV3, UL8) |
2013-2013 |
01 |
| 003 |
22954632 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22954632) (LABELED 22954632) |
CK1, 2, 3 (UYS) (EXC CV3, CW4, CZ1, UL8) |
2013-2013 |
01 |
| 003 |
22815132 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22815132) (LABELED 22815132 OR 22919790) |
CK1, 2, 3 (CV3, UYS) (EXC UL8) |
2013-2013 |
01 |
| 003 |
22780769 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22780769) |
CK1 (GMQ, UL8) (EXPORT) |
2013-2013 |
01 |
| 003 |
22923617 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22923617) (LABELED 22923617) |
CK1, 2 (UL8, UYS) (EXC CV3) (EXPORT) |
2013-2013 |
01 |
| 003 |
22954633 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22954633) (LABELED 22954633) |
CK1, 2 (UL8, UYS) (EXPORT) |
2013-2013 |
01 |
| 003 |
22954634 |
RADIO, RECEIVER NAV (INCLS 4, 7) (ACDelco #22954634) (LABELED 22954634) |
CK1, 2, 3 (CV3, UYS) (EXC UL8) (EXPORT) |
2013-2013 |
01 |
| 004 |
|
KNOB, RDO TUNING CONT (PART OF 3) |
|
2012-2013 |
|
| 005 |
25887440 |
PLATE, I/P ACSRY CTR TR (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) (GASTON WALNUT) |
CK1, 2 (06) (SLT, X88, 19I, 33I, 83I) (EXC BPH) |
2012-2013 |
01 |
| 005 |
25807746 |
PLATE, I/P ACSRY CTR TR (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) (METALLIC BRUSH) |
CK1, 2 (06-36) (BPH, X88, 19I, 33I, 83I) (EXC T1U) |
2012-2013 |
01 |
| 005 |
25887440 |
PLATE, I/P ACSRY CTR TR (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) (GASTON WALNUT) |
CK1, 2 (06) (T1U, X88, 19I, 33I, 83I) (EXC BPH) |
2012-2013 |
01 |
| 005 |
25887440 |
PLATE, I/P ACSRY CTR TR (SEE GROUP 16.000 INSTRUMENT PANEL/TRIM FOR DETAILED ILLUSTRATED VIEW) (GASTON WALNUT) |
CK1, 2 (06) (STZ, X88, 19I, 33I, 83I) (EXC BPH) |
2012-2013 |
01 |
| 006 |
|
DISC, NAVN DATA (FOR SERVICE SEE GM PARTS PROCESS/POLICY BULLETIN FOR LATEST SERVICE INFORMATION) |
|
2012-2013 |
|
| 007 |
|
KNOB, RDO VOL CONT (PART OF 3) |
|
2012-2013 |
|
| 008 |
11589012 |
BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO) (9.665) |
|
2012-2013 |
04 |
| 009 |
11610157 |
NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P UPR T/PNL) (10.701) |
|
2012-2013 |
AR |
| 010 |
20935459 |
RADIO, AM/FM STEREO CLK MP3 PLYR AUX IN USB (INCLS 11-14) (ACDelco #20935459) |
CK1, 2, 3 (UUN) |
2012-2013 |
01 |
| 010 |
20968152 |
RADIO, AM/FM STEREO CLK MP3 PLYR AUX IN USB (INCLS 11-14) (ACDelco #20968152) |
CK1, 2, 3 (UUI) |
2012-2013 |
01 |
| 010 |
20968153 |
RADIO, AM/FM STEREO CLK AUDIO DISC PLYR (INCLS 11-14) (ACDelco #20968153) |
CK1, 2, 3 (US8) |
2012-2013 |
01 |
| 011 |
|
KNOB, RDO TUNING CONT (PART OF 10, 15) |
|
2012-2013 |
|
| 012 |
|
PUSHBUTTON, RDO TUNE (PART OF 10, 15) |
|
2012-2013 |
|
| 013 |
|
KNOB, RDO VOL CONT (PART OF 10, 15) |
|
2012-2013 |
|
| 014 |
|
PUSHBUTTON, RDO PWR (PART OF 10, 15) |
|
2012-2013 |
|
| 015 |
20939999 |
RADIO, AM/FM STEREO CLK AUDIO DISC PLYR (INCLS 11-14) |
CK1, 2, 3 (UUJ) |
2012-2013 |
01 |
